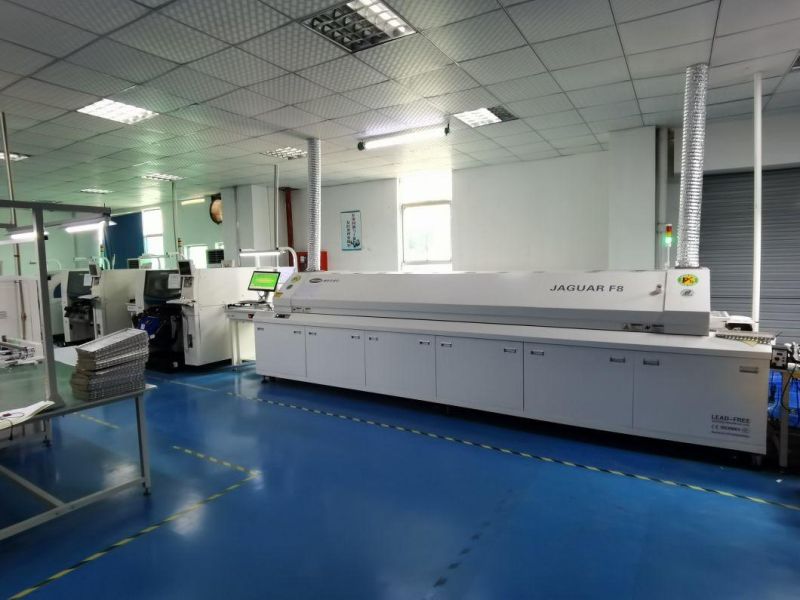

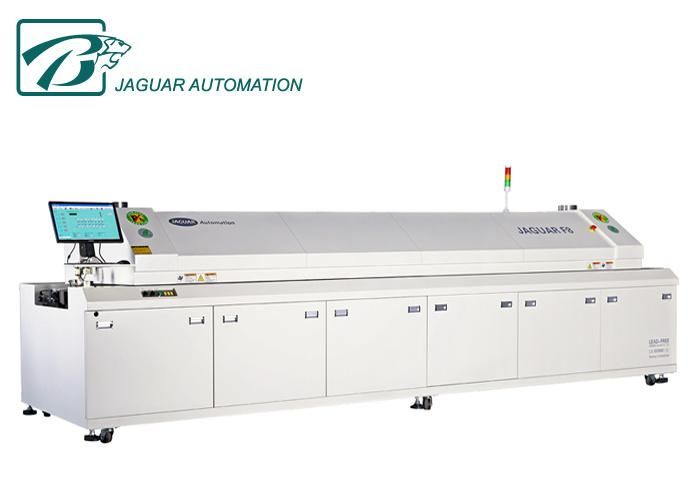

Jaguar F8 Hot Sales Reflow Oven Soldering Manufacturer for SMT Production Line
Shenzhen Jaguar Automation Equipment Co., Ltd.- Condition:New
- Certification:ISO, CE
- Warranty:12 Months
- Automatic Grade:Automatic
- Installation:Vertical
- Number of Heating Zones:up 8,Bottom 8
Base Info
- Model NO.:F8
- Length of Heating Zones:2800mm
- Heating Mode:up:Hot Air; Bottom: IR
- Cooling Mode:Force Air
- Max. Width of PCB:350mm
- Mesh Belt Width:400mm
- Transmission Direction:L→r(or R→l)
- Transmission Type:Mesh
- Total Power:38kw
- Starting Power:34kw
- Transport Package:Wooden Case
- Specification:4200× 700× 1320mm
- Trademark:jaguar automation
- Origin:Shenzhen
- HS Code:8515190000
- Production Capacity:100pieces,Year
Description
Basic Info.
Model NO. F8 Length of Heating Zones 2800mm Heating Mode up:Hot Air; Bottom: IR Cooling Mode Force Air Max. Width of PCB 350mm Mesh Belt Width 400mm Transmission Direction L→r(or R→l) Transmission Type Mesh Total Power 38kw Starting Power 34kw Transport Package Wooden Case Specification 4200× 700× 1320mm Trademark jaguar automation Origin Shenzhen HS Code 8515190000 Production Capacity 100pieces/YearProduct Description

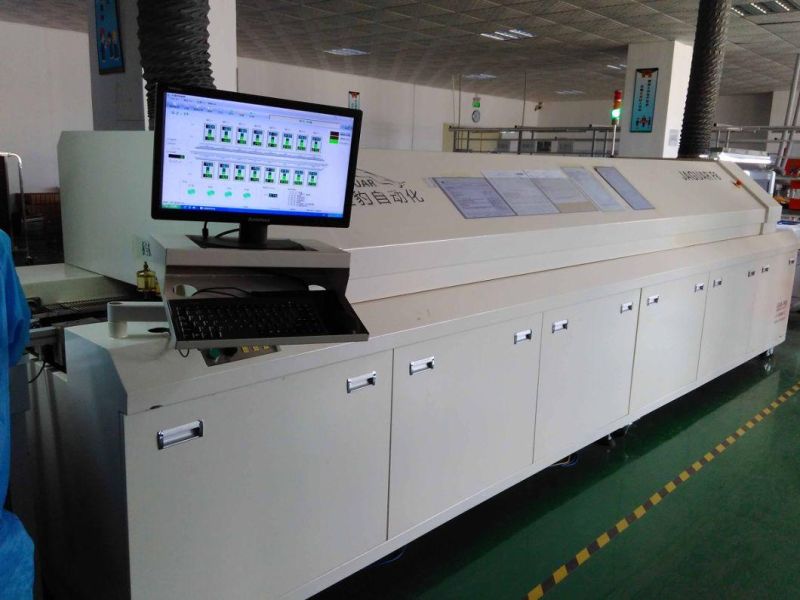

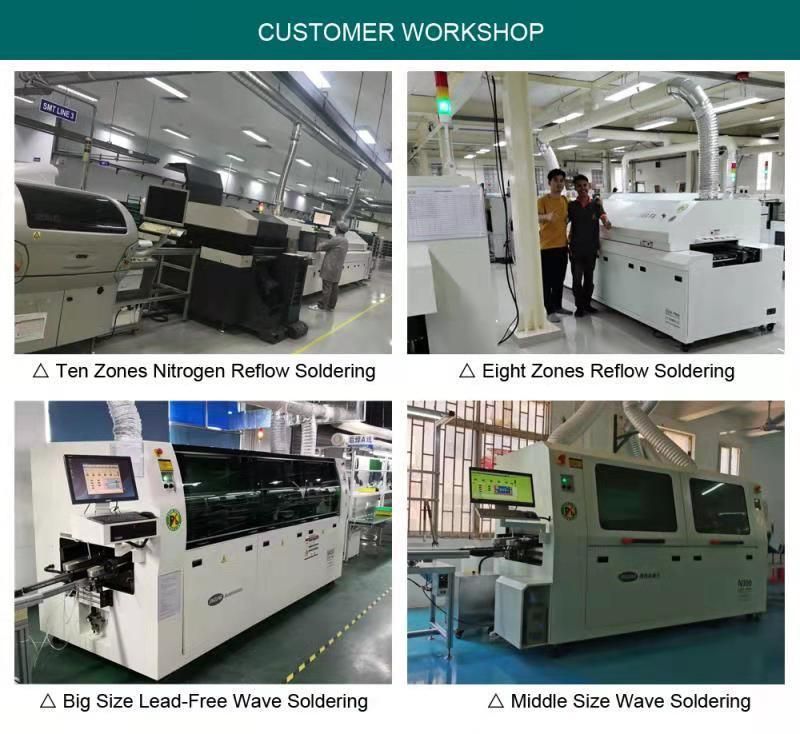

Soldering Oven/LED Reflow Oven with Temperature Measurement
Introduction:
- Heating zone
1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
1.3: 8 heating zones, 16 heating elements( up 8/ bottom 8 ) , independent temperature control and switch
1.4: The latest design of nozzle plate, the best insulation performance
- Control system
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch
- Convyeor system
3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the accuracy is ±2mm/ Min
4.Cooling zone
4.1: Axial fan forced air cooling ( Up and bottom dual cooling)
5.Protection system
5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function
6.Machine parameters
Machine dimension | 5300 x 1350x 1490mm |
Color | Ivory |
Net weight | Approx. 2250kgs |
Exhaust volume | 10m3/min X 2pipe |
Power supply | 5 wire, 3 phase, 380V 50/60HZ |
Startup power consumption | 48KW |
Steady power consumption | 8-12KW |
Warming time | About 30mins |
Temperature range | Room temperature-300ºC |
Mesh width | 500mm |
Max PCB width | 420mm |
Component height | Up 25mm/Bottom 25mm |
Conveyor direction | Left-right ( option: Right-left) |
Conveyor speed | 300-2000mm/min |
Data storage | Process data and status storage(80GB) |
Abnormal alarm | Over temp or low temp alarm, sound and light 2 modes |
7.Machine configuration
Heating zone | Up 8, Bottom 8 |
Cooling zone | Up 8, Bottom 2 |
Control mode | WINDOWS 7+IPC+PLC |
Temperature control mode | PID closed loop+SSR driver |
Thermal couple wire | 3pcs |
Conveyor system | Mesh+Chain |
Conveyor control mode | 3 inverters+Panasonic motor |
Hood lift | Electric hood lift |
UPS | Standard, power off standby to protect PCB production completed |
