Copper Wire Stranding Machine for Making Power Cable
Hejian Bao Hong Electrical Machinery Co., Ltd.- After-sales Service：One Year Warranty
- Driven Type：Electric
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：630,1+6+12+18+24+30
- Mould Life：>1,000,000 Shots
- Type：High-speed Stranding Machine
- Material：Metal
- Colour：as Required
- Wire Diameter Specification：1.5-5.0mm
- Cage Speed：46-231 Rpm
- Stranding Pitch：71-781 mm
- Traction Wheel Diameter：2000 mm
- Pay-off Bobbin in Cage：Pnd 500,630,710
- Central Pay-off Bobbin：Pn800-Pn1600
- Take-up Bobbin：Pn1250-Pn3150
- Central Height：1000 mm
- Transport Package：Seaworthy Packing
- Specification：630 , 12 + 18 + 24
- Trademark：BH
- Origin：Hejian, Hebei, China
- HS Code：8479400000
- Production Capacity：15 Sets,Month
Description
Model (Rigid Stranding Machine)JLK-500 JLK-630 JLK-710/720 Diameter of single wire Copper φ1.5-5 mm φ1.5-5 mm φ1.5-5 mm Aluminum φ1.5-5 mm φ1.5-5 mm φ1.5-5 mm Maximum stranded conductor OD φ35-55 mm φ35-55 mm φ35-55 mm Stranding Pitch 6 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm 12 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm 18 Bobbin Stranding Cage 44-793 mm 63-1056 mm 57-1012 mm 24 Bobbin Stranding Cage 51-924 mm 71-1246 mm 66-1190 mm 30 Bobbin Stranding Cage 57-1028 mm 87-1553 mm 79-1403 mm Rotating Speed 6 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min 12 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min 18 Bobbin Stranding Cage 208.5 r/min 155 r/min 142.6 r/min 24 Bobbin Stranding Cage 179 r/min 130.1 r/min 122.3 r/min 30 Bobbin Stranding Cage 161.8 r/min 115.9 r/min 102.7 r/min Capstan Capstan Wheel Diameter 2000 mm 2000 mm 2000 mm Maximum Haul-off Force 30 T 30 T 40 T Pre-spiral Device Pitch 500-2500mm 500-2500mm 500-2500mm Motor Power 90-180 KW 110-180 KW 130-180 KW Bobbin Size 500*375*127 630*475*127 710*530*127 Center Payoff Bobbin 1600*800*80 1600*800*80 1600*800*80 Take-up Bobbin 2500*1500*125 2500*1500*125 3150*1900*160 Maximum Haul-off Linear Speed 69 m/min 69 m/min 62 m/min Central Height 1000 mm 1100 mm 1100 mm
Precise boring: After completing all the welding and turning, the final step is precise boring. Boring is done on the special boring lathe. The holes for one set of clamping device, are bored at one time. This process ensures the concentricity, and effectively reduces the rate of wire-break.
Since improved the technology, more than 45000 sets of clamping devices have been used and no breakdown report. Customer's feedbacks are extremely positive.
During the process of turning, host cage of the frame stranding machine, can be completed at only one time of loading. So, the process greatly increases the concentricity.
The key gearboxes adopt the best gearboxes in China. The gearbox is almost no noise. Normally the gearbox will work for 5 years with no problem.
The production speed is extremely fast. For example, 240mm² bare wires, pitch 200mm, the speed is 3000m/h. So, in 10 hours, the stranding machine can produce 30000m wires. If we reduce the loading and unloading time, and host stop-time, for example 3 hours, 15000 meters to 20000 meters conductor can be produced. Production capacity is very very high.

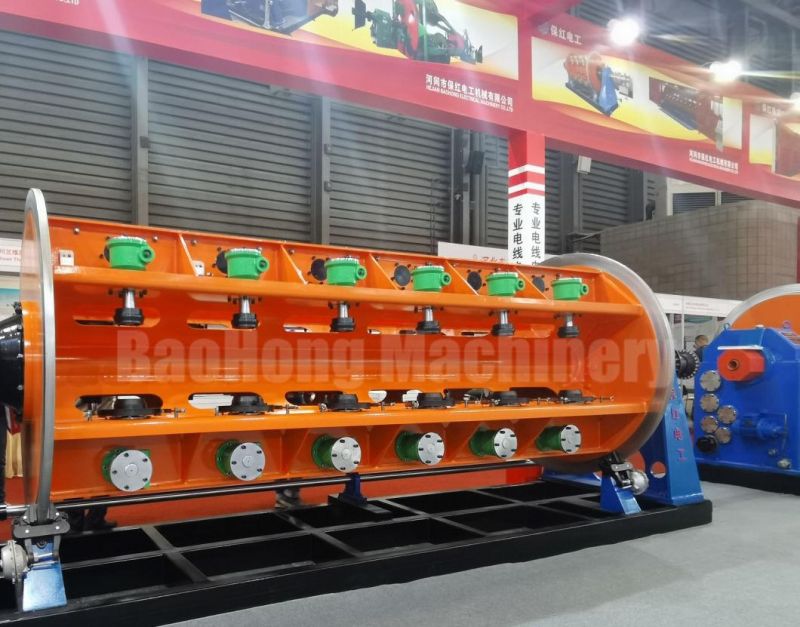

The each host stranding cage is divided into four equal parts. The host disc and frame structures are integrally welded. The parts of the stranding cage are preliminarily turned, remaining machining allowance. The host stranding cages finally finish turning integrally. Equipped with pneumatic brake function, can performs the inch action, start and stop functions. The bobbins in the cages can be loaded and unloaded intensively, pneumatic clamped. Wire tension is pneumatic tension, which keeps constant wire tension. The whole chassis is integrally welded. Brake system is disc brake.
One electromagnetic wire-break stopping devices to each bobbin clamping device. One induction stopping device is on the mechanical meter counter. These devices will detect 99.9% wire-break.
Separate electronic control system. The hydraulic system controls the lifting and landing of the bracket. Slow positioning system makes sure the loading and unloading accurate angle. The loading and unloading are automatic positioning, which is very simple operation. The bobbins are loaded and unloaded integrally. When the bobbins are clamped, mechanical safety device will provide 700kg locking force to keep the bobbin clamped on the clamping device.

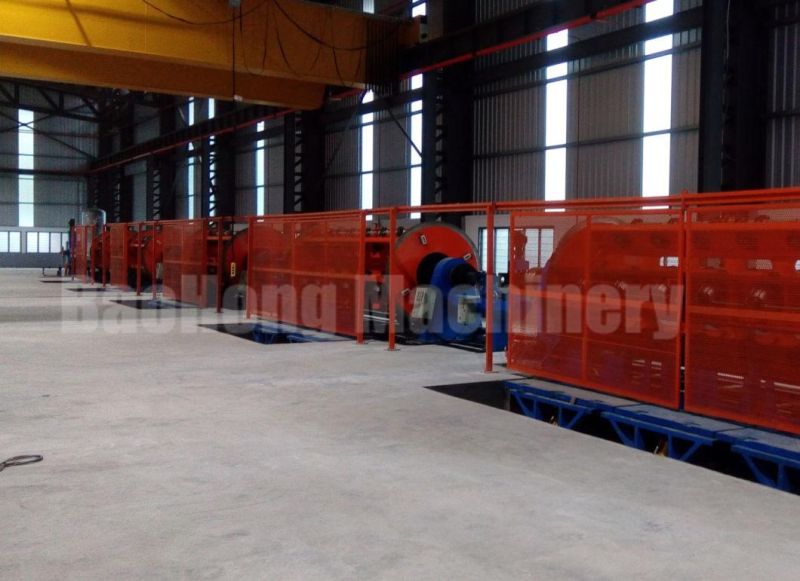

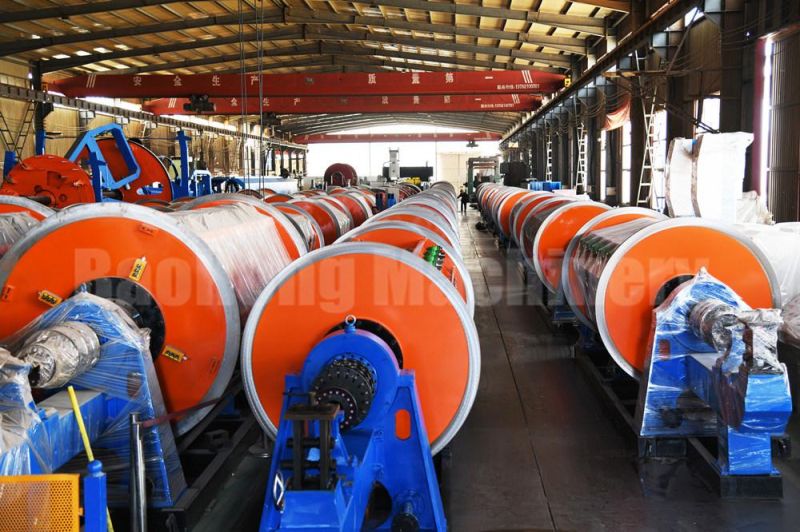

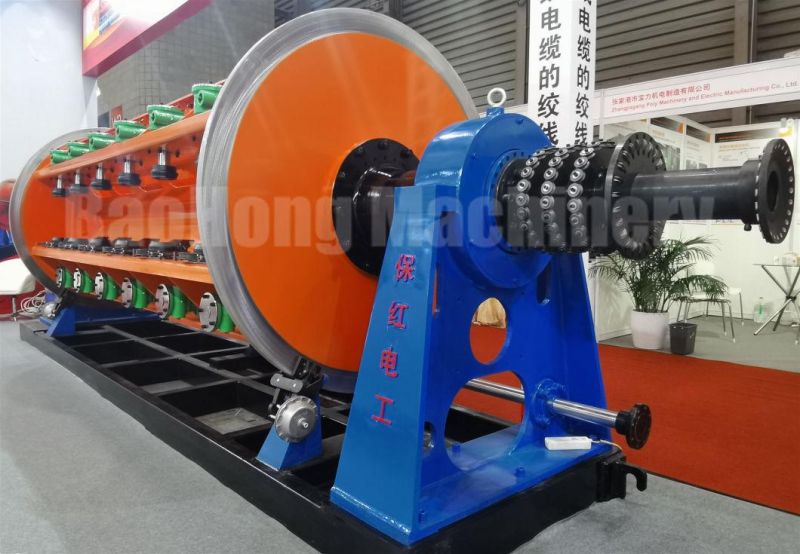

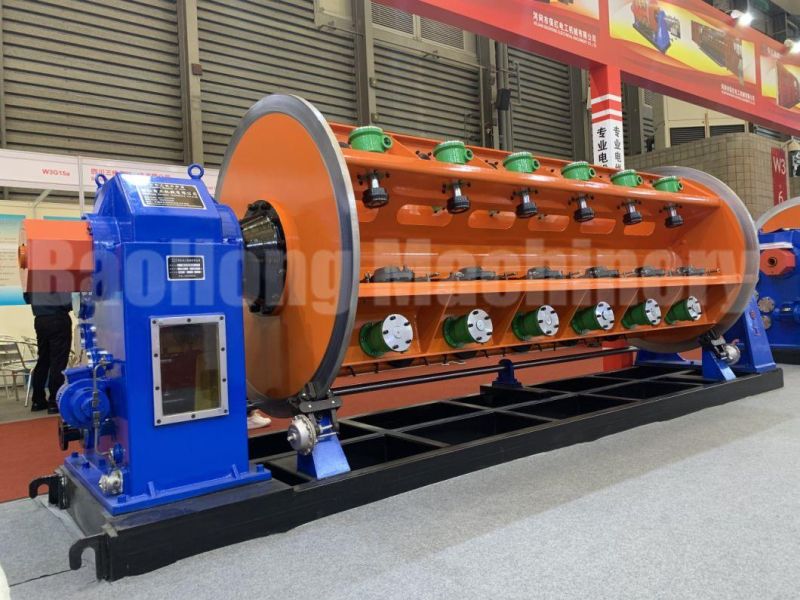

3.Photo
Precise boring: After completing all the welding and turning, the final step is precise boring. Boring is done on the special boring lathe. The holes for one set of clamping device, are bored at one time. This process ensures the concentricity, and effectively reduces the rate of wire-break.
Since improved the technology, more than 45000 sets of clamping devices have been used and no breakdown report. Customer's feedbacks are extremely positive.
During the process of turning, host cage of the frame stranding machine, can be completed at only one time of loading. So, the process greatly increases the concentricity.
The key gearboxes adopt the best gearboxes in China. The gearbox is almost no noise. Normally the gearbox will work for 5 years with no problem.
The production speed is extremely fast. For example, 240mm² bare wires, pitch 200mm, the speed is 3000m/h. So, in 10 hours, the stranding machine can produce 30000m wires. If we reduce the loading and unloading time, and host stop-time, for example 3 hours, 15000 meters to 20000 meters conductor can be produced. Production capacity is very very high.
The each host stranding cage is divided into four equal parts. The host disc and frame structures are integrally welded. The parts of the stranding cage are preliminarily turned, remaining machining allowance. The host stranding cages finally finish turning integrally. Equipped with pneumatic brake function, can performs the inch action, start and stop functions. The bobbins in the cages can be loaded and unloaded intensively, pneumatic clamped. Wire tension is pneumatic tension, which keeps constant wire tension. The whole chassis is integrally welded. Brake system is disc brake.
One electromagnetic wire-break stopping devices to each bobbin clamping device. One induction stopping device is on the mechanical meter counter. These devices will detect 99.9% wire-break.
Separate electronic control system. The hydraulic system controls the lifting and landing of the bracket. Slow positioning system makes sure the loading and unloading accurate angle. The loading and unloading are automatic positioning, which is very simple operation. The bobbins are loaded and unloaded integrally. When the bobbins are clamped, mechanical safety device will provide 700kg locking force to keep the bobbin clamped on the clamping device.
