• Model NO.：YPO-480
• Exterior Chamber Size(W*H*D)：1200*1700*840mm
• Temperature Range：Room Temperature 10degrees to 300degrees
• Temperature Control Accuracy：+,-0.3degrees
• Temperature Uniformity：+,-1degrees
• Temperature Resolution：0.1degrees
• Heat up Time：30minutes
• Power Supply：380V
• Controller：Omron E5az Controller
• Transport Package：Strong Plywood Carton
• Specification：CE, SGS, TUV certified.
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：9032100000
• Production Capacity：100sets,Month

ModelYPO-072YPO-270YPO-480YPO-600YPO-720Inner chanber size W*H*D(mm)400*450*400600*900*500800*1000*6001000*1000*6001200*1000*600Exterior chanber size W*H*D(mm)750*1100*5501150*1650*7401300*1700*8401500*1750*8401850*1750*840Temperature RangeRoom temperature 10ºC ´ 200ºC(300ºC)PerformanceTemperature control accuracy ±0.3ºCTemperature uniformity±1ºCTemperature resolution0.1ºCHeat-up time30minutesMaterialExterior chamber material Stainless steel plate+Powder CoatedInterior chamber material SUS#304stainless steel plateInsulation PU & Fiberglass woolSystemWind Circulation Sirocco fanHeating system SUS#304 stainless steel high-speed heaterController Omron E5AZ controllerOther components cable port(60mm),control status indicator lights,loading shelves(2pcs for free)Safety DevicesOverheating circuit-breaker, compressor overload protection, control system overload protection,
humidifying system overheating protection,breakdow indicator lightPower supply AC380V 60/50HzCustomizationCustomization of inner chamber size, temperature & humidity range etc.

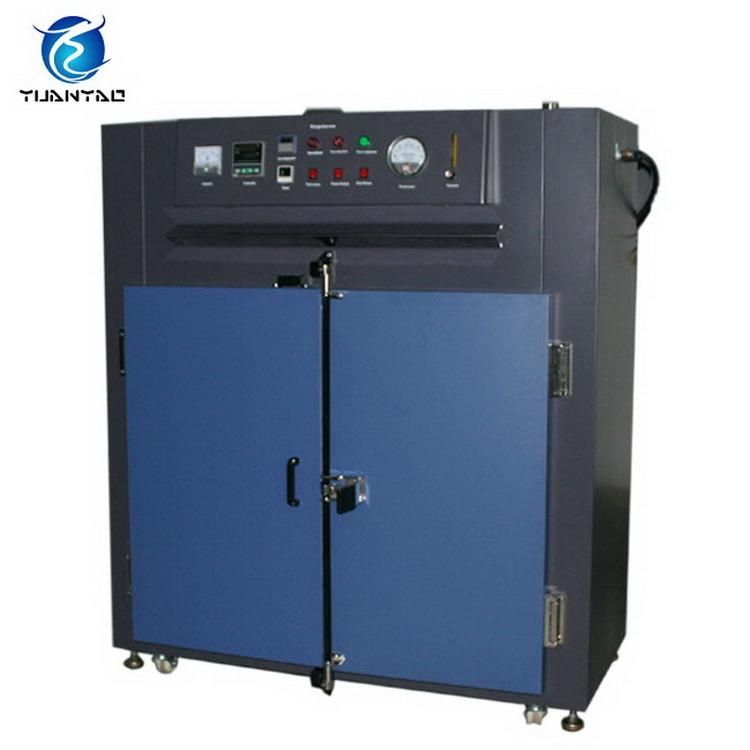

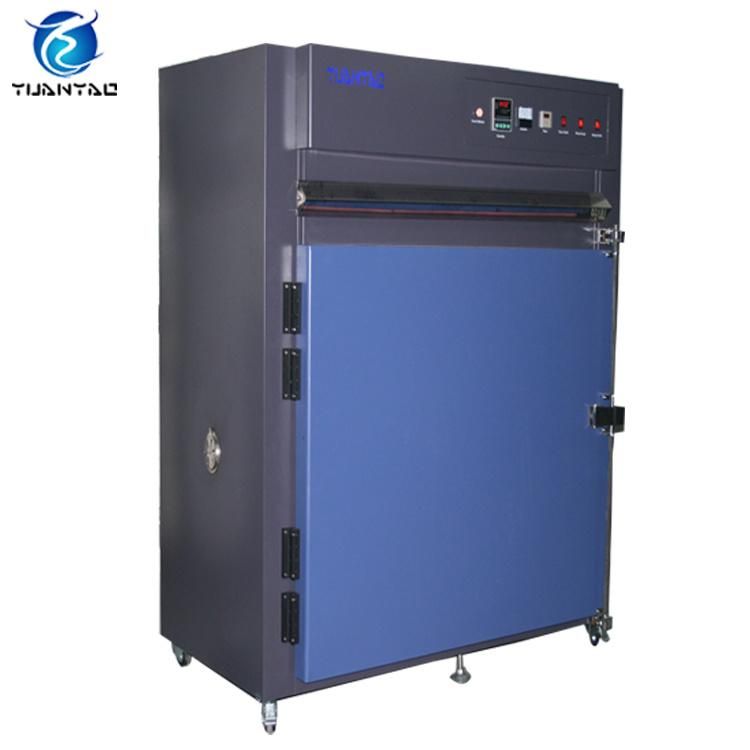

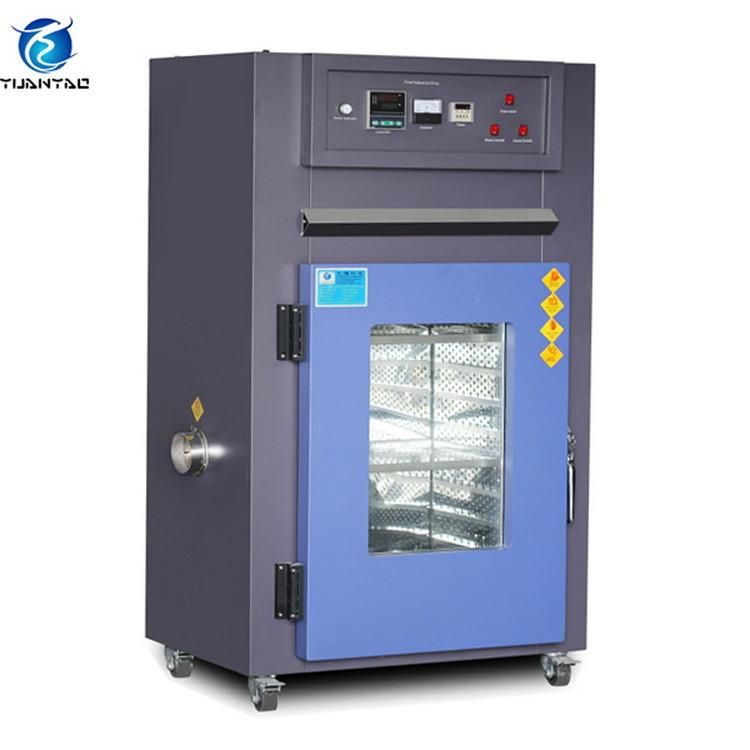

Product detail
