Manufacturing Equipment for Electrical & Electronic Product

Home > Product > Stripping Machine

Full Automatic Terminal Crimping Machine Cable Both Ends Cutting/ Stripping and Crimping Machine

NINGBO SKECH IMPORT & EXPORT CO., LTD.
  • After-sales Service：Life Time After Sale Support
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：JQ-1
  • Power Supply：AC220V
  • Compressed Air：5-6 Bar (5-6 Kgf,Cm)
  • Principles：PLC Control
  • Cutting Length：30-9999mm
  • Stripping Length：No. 1: 1.0-10.0mm No. 2: 1.0-17.0mm
  • Wire Type：PVC,Teflon,Glass Wire
  • Wire/Cable Size：AWG# 30-16 (0.05-2.0mm2)
  • Processing Capacity：0.85sec,PCS(in Case of Min Wire Length)
  • Transport Package：Non-Fumigation Wooden Case
  • Specification：W420× L450× H270mm
  • Trademark：Skech
  • Origin：China
  • HS Code：8537101990
  • Production Capacity：100 PCS,Month

Description

Overview Product Description

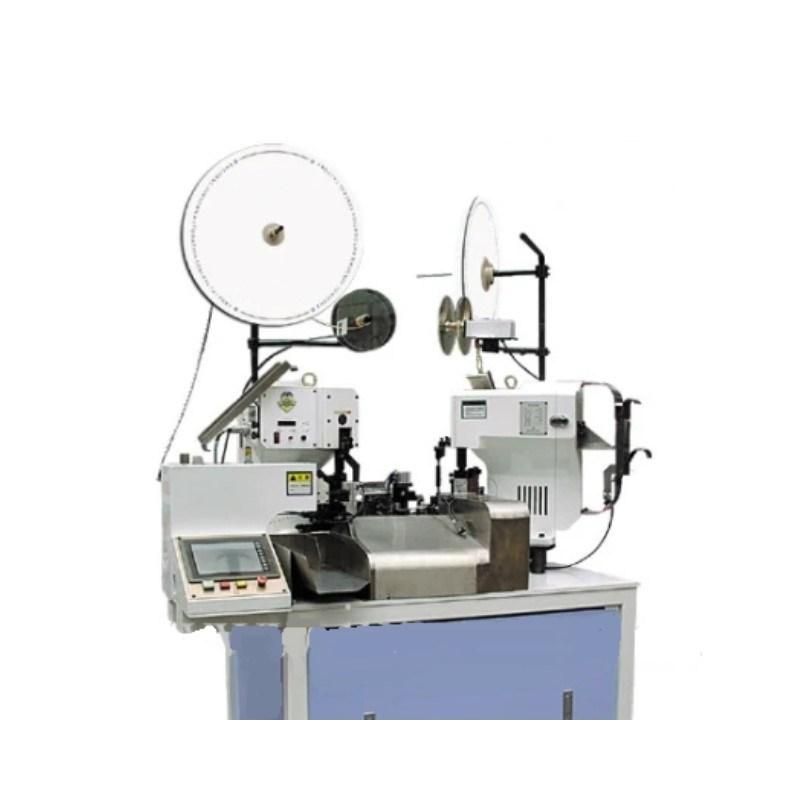

Full Automatic Terminal Crimping Machine Cable Both Ends Cutting/ Stripping and Crimping Machine(JQ-1)

Detailed Photos
Full Automatic Terminal Crimping Machine Cable Both Ends Cutting/ Stripping and Crimping MachineFull Automatic Terminal Crimping Machine Cable Both Ends Cutting/ Stripping and Crimping MachineFull Automatic Terminal Crimping Machine Cable Both Ends Cutting/ Stripping and Crimping Machine



Product Parameters Parameters Part No.:JQ-1Measurement:W1300× D1480× H1450Weight:50KGS Power supply:AC220VCompressed air:5-6 Bar (5-6 Kgf/cm)Press capacity:  19600n(2.0ton)× 2sets low noise type Wire size:    AWG# 30-16 (0.05-2.0mm2) ;O.D: 3.4mmcapacity:0.85sec/PCS(in case of min wire length)Max cutting length:30--9999mm Cutting accuracy:L≤ 100mm± (0.5+L ×   0.002)  L> 100mm± (1.0+L× 0.002) Stripping length:No. 1: 1.0-10.0mm    No. 2: 1.0-17.0mmCutting depth:2mm 100steps(1step=0.02mm) Detector:  Puessur down. crimp-mis. strip error Wire Presence  Wire Load Wire Parameter Error Etc. Certifications

ISO, CE and RoHS

Packaging & Shipping

After Sales Service

FAQ

Q:How long is the warranty on your products?

A:There is a 12 month warranty from date of delivery.  In the event of any failure, items must be returned to us full investigation.


Q:What's your best price?

A: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.


Q: Do You Have Sell Your Machine To UK ?
A: Yes, our products is well-sold in in Europe.


Q: Do You Test All Your Goods Before Delivery?
A: Yes, we have 100% test before delivery.


Q: Which Shipment Way Can You To Do ?
A: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
