• Model NO.：,
• Mould Life：>1,000,000 Shots
• Type：To Back Stranding Machine
• Material：Metal
• Wire Diameter Specification：1.5-4.0mm
• Cage Speed：80-106 Rpm
• Stranding Pitch：79-1075 mm
• Traction Wheel Diameter：2000 mm
• Pay-off Bobbin in Cage：Pnd 500
• Central Pay-off Bobbin：Pnd 50
• Take-up Bobbin：Pn1250-Pn2500
• Colour：as Required
• Central Height：1000 mm
• Transport Package：Seaworthy Packing
• Specification：500 , 1+6+12+18
• Trademark：BH
• Origin：Hejian, Hebei, China
• HS Code：8479400000
• Production Capacity：15 Sets , Month

Specification400/12+18+24500/6+12+18500/12+18+24630/12+18+24Dia. of single wire (mm)copper1.5-5.0aluminium1.8-5.0steel1.2-3.0Production dia. (mm)453545Stranding cage speed (rpm)35-8824-60Stranding pitch (mm)53.4-105778-1541Diameter of wheel haul-off (mm)18002000Production speed (m/min)4.7-37Size of take-up reel (mm)PN2000PN2500

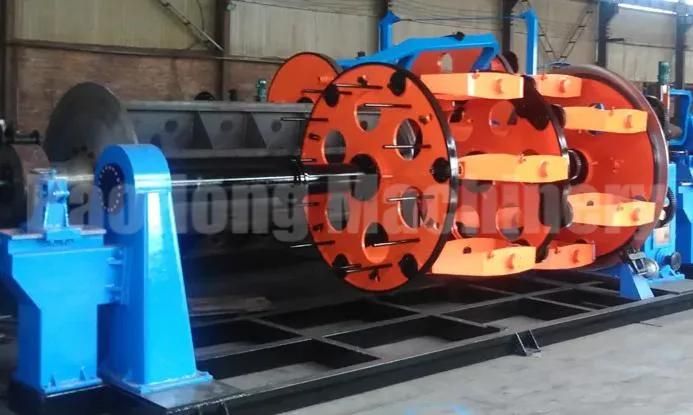

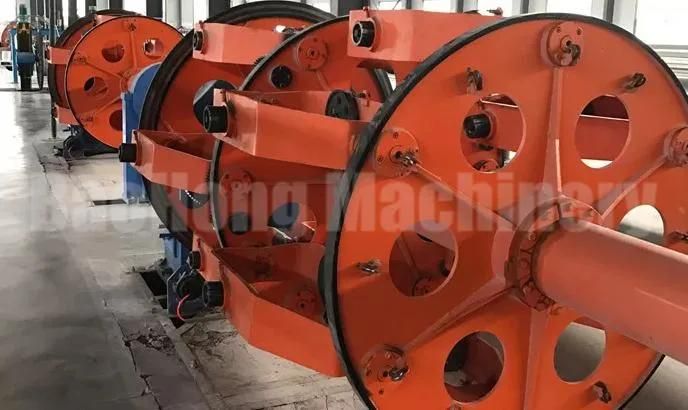

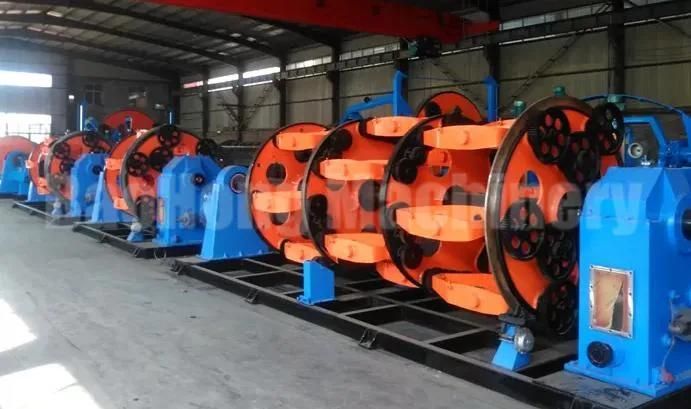

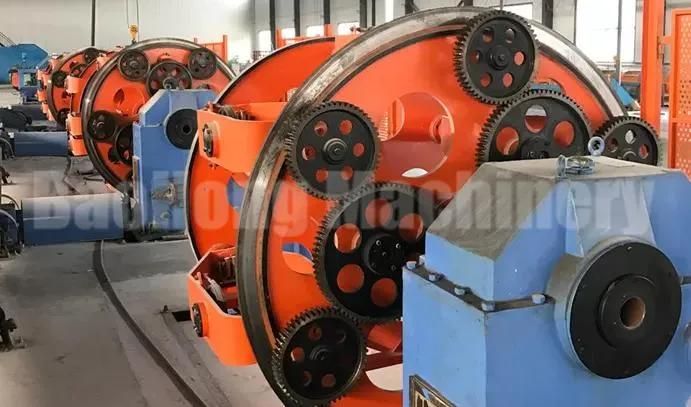

5.Photos
