• Model NO.：WL-SF40T
• Power：4500W
• Crimp Width：12.5mm Can Be Customized
• Stroke：60mm
• Voltage：380V 50~60Hz
• Weight：About 500kg
• Transport Package：Wooden Carton
• Specification：850*880*1300mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-SF40T Power 4500W Crimp Width 12.5mm Can Be Customized Stroke 60mm Voltage 380V 50~60Hz Weight About 500kg Transport Package Wooden Carton Specification 850*880*1300mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

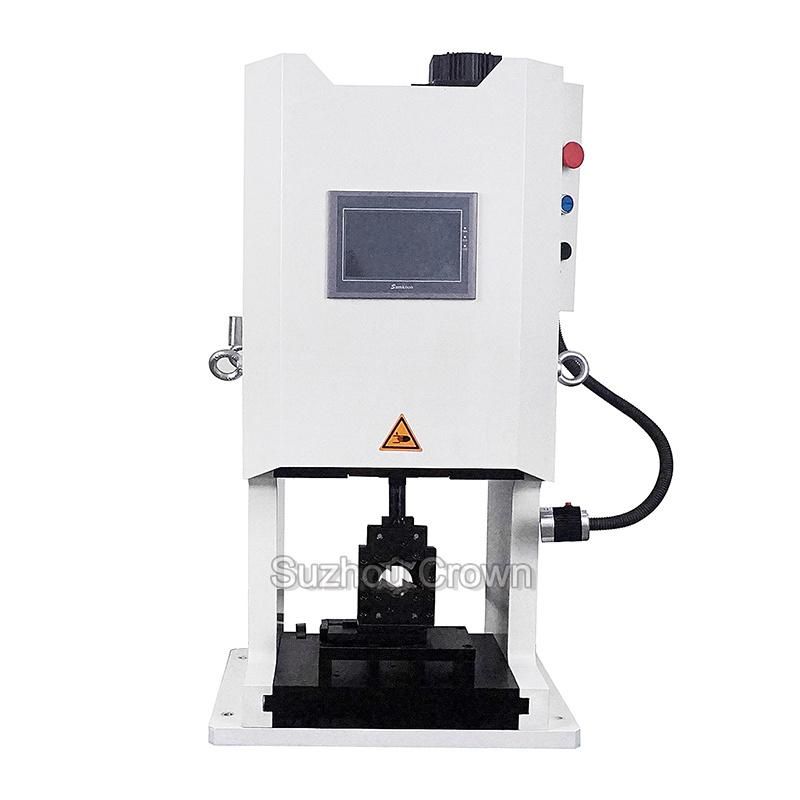

 WL-SF40T Semi automatic large gauge cable crimping machine Servo Motor Driven Terminal Crimping Machine

Features:

This is a servo motor driven cable terminal crimping machine. It features high crimping accuracy and stable crimping quality.

• Servo motor drive, high crimping accuracy and stable crimping quality

• Touch screen control, simple operation.

• Designed for terminal crimping with high precision requirements, suitable for processing of new energy wiring harness.

• With crimping error alarm function: overlapping crimping terminal alarm (protecting the blade), crimping un-stripped cable alarm, cutting core wire alarm, no terminal crimping alarm.

Specifications:


Model	WL-SF40T
Crimping force	40T
Crimping range	Max. 240mm2
Motor power	4.5kw servo motor
Reducer	planetary reducer
Transmission mode	ball screw
Slider stroke	60mm
Crimping accuracy	± 0.03mm
Crimp control	digital control
Matching applicator	hexagon applicator, M shape applicator, opt applicator, four points applicator
Control system	motion control board + touch screen control
Start mode	pedal start
Power supply	380V 50~60Hz
Speed	10~30pcs/min
Size	740*740*1500 (excluding protrusion)
Weight	about 500kg

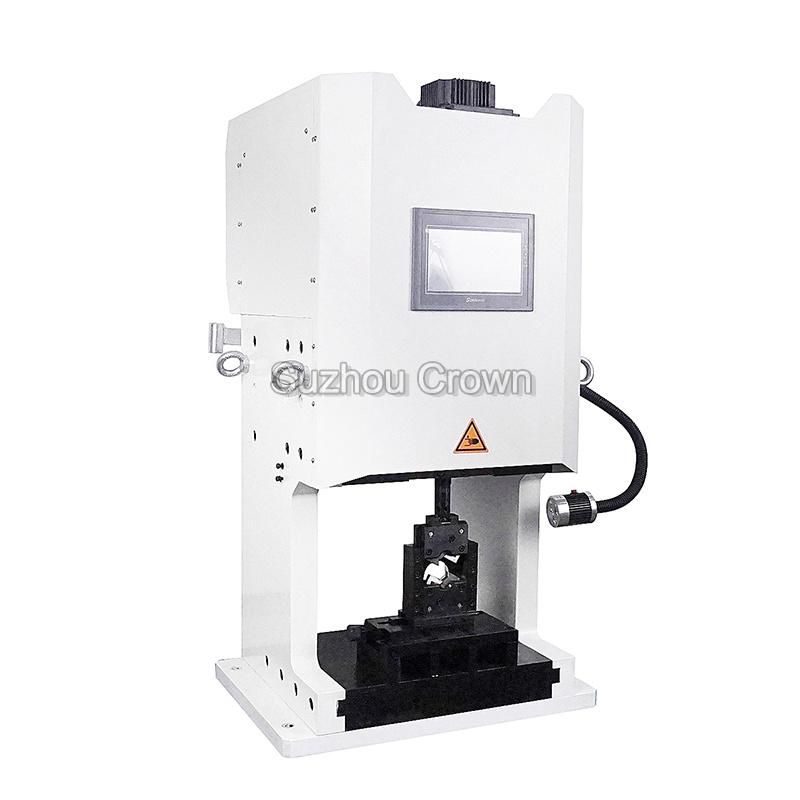

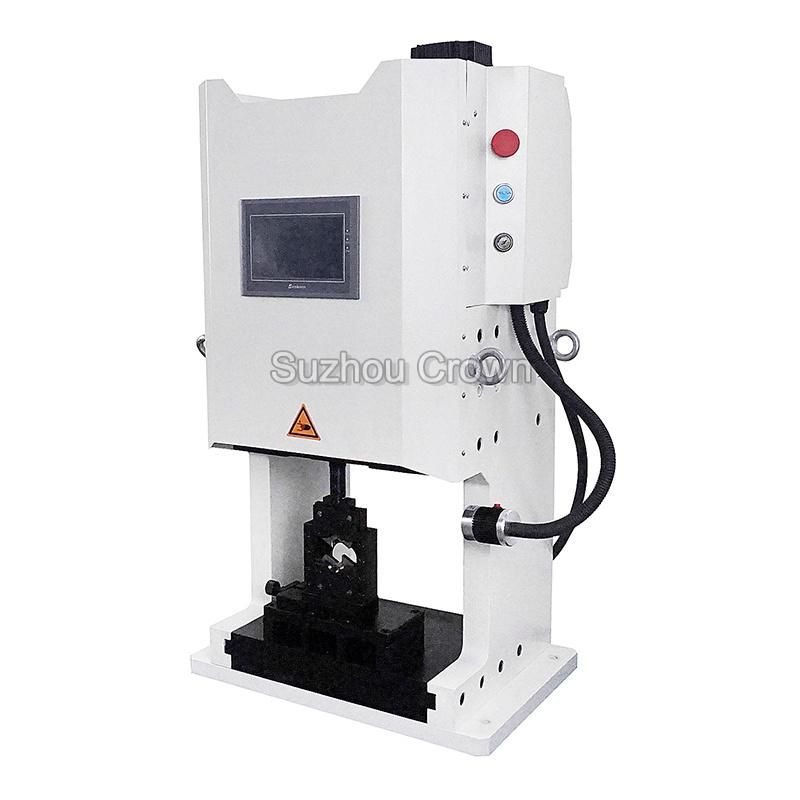

Product Show:

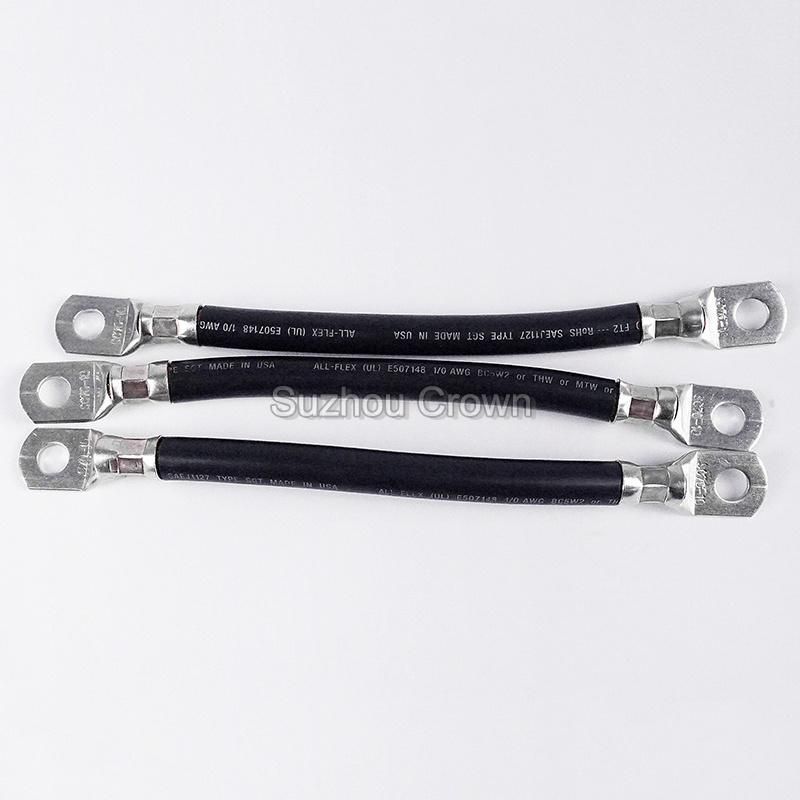

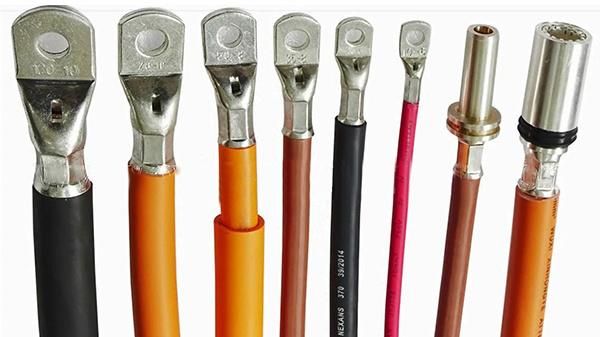

Application Terminal:



This machine is mainly used for crimping of large square tubular terminals;

10-75mm2 closed tubular terminal crimping without changing the tool, instantly change the size of the knife edge;









Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.
