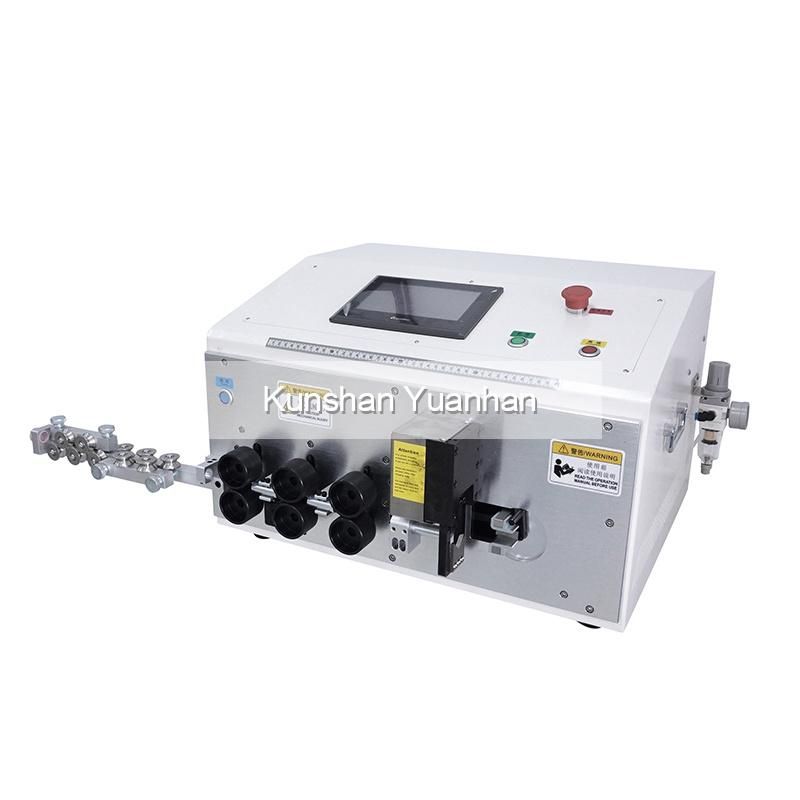

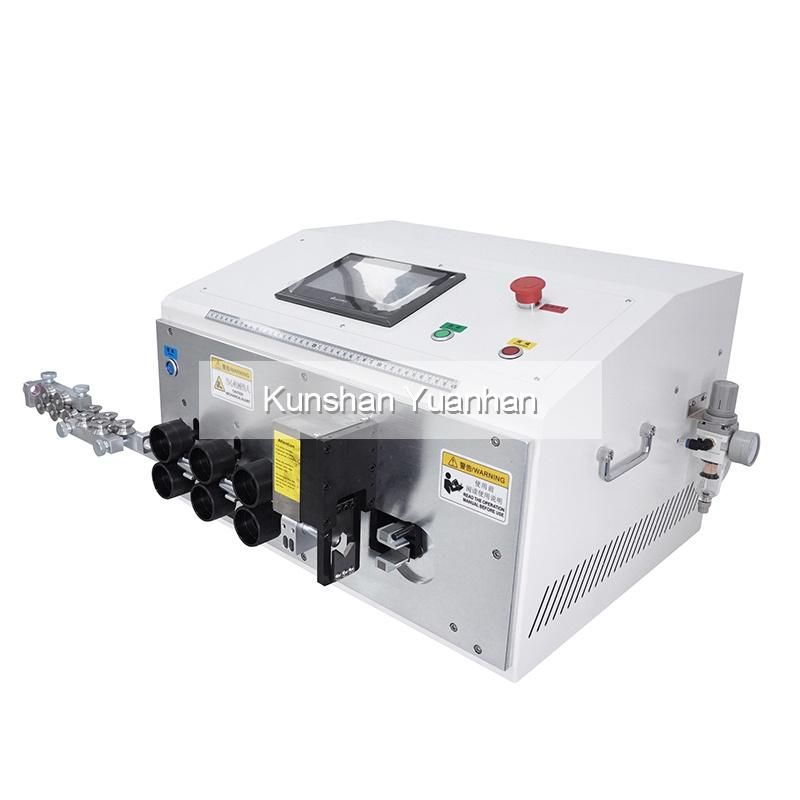

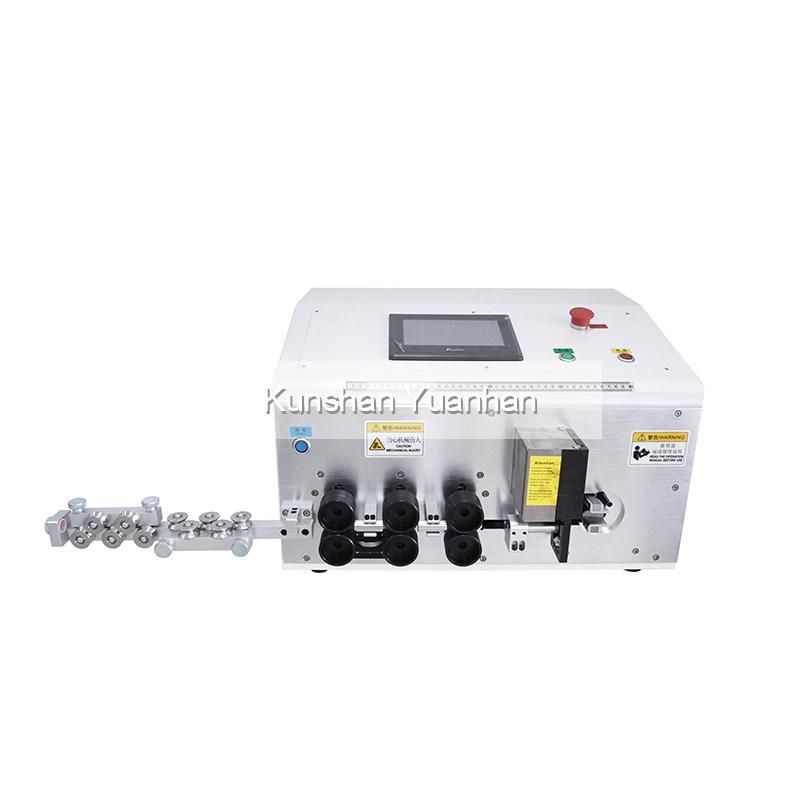

Automatic Wire Cut Bending Machine Manufacturers Yh-690z / Yh-Zw35
Kunshan Yuanhan Electronic Equipment Co., Ltd.- After-sales Service：12 Month
- Driven Type：Electric
- Condition：New
- Certification：RoHS, ISO, CE
- Warranty：24 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：YH-690Z , YH-ZW35
- Model：Yh-690z , Yh-Zw35
- Features：Wire Cutting Stripping and Bending
- Conductor Cross-Section：2-35mm2
- Stripping Length：0.1-100mm
- Cutting Length：1-100,000mm
- Cutting Tolerances：± (0.001XL)mm
- Bending Length：Can Be Set
- Production Rate：L=100mm, 2,000-3,000PCS,H
- Power：600W
- Weight：88kg
- Dimensions：95X88X82cm
- Bend Shape/Angle：Shape, Z Clockwise, Counterclockwise Bend
- Power Supply：110,220VAC, 50,60Hz
- Conduit Diameter：10mm, Can Be Customized According to W
- Transport Package：Double-Layer Export Carton
- Specification：53x53x40cm
- Trademark：YH
- Origin：China
- HS Code：8479819000
- Production Capacity：L=100mm, 3000-7000PCS,H
Description
95x88x82cm
Features:

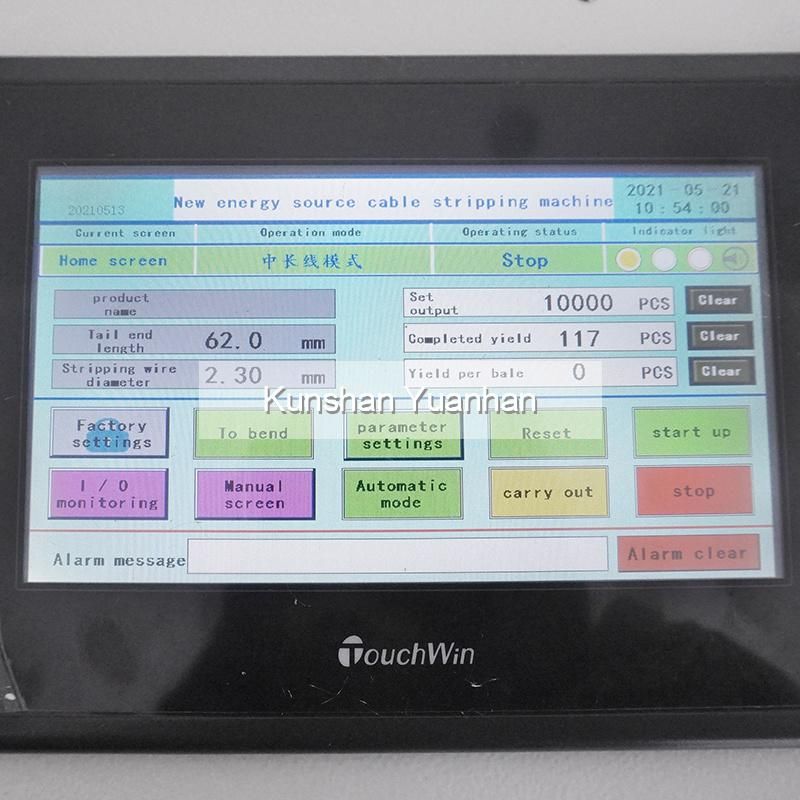

1. Chinese and English switching display
2. The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3. Make both ends semi-stripping and twisting.
4. Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.
Processing Capabilities: Cutting to length, Full strip,
Half strip, precision cut

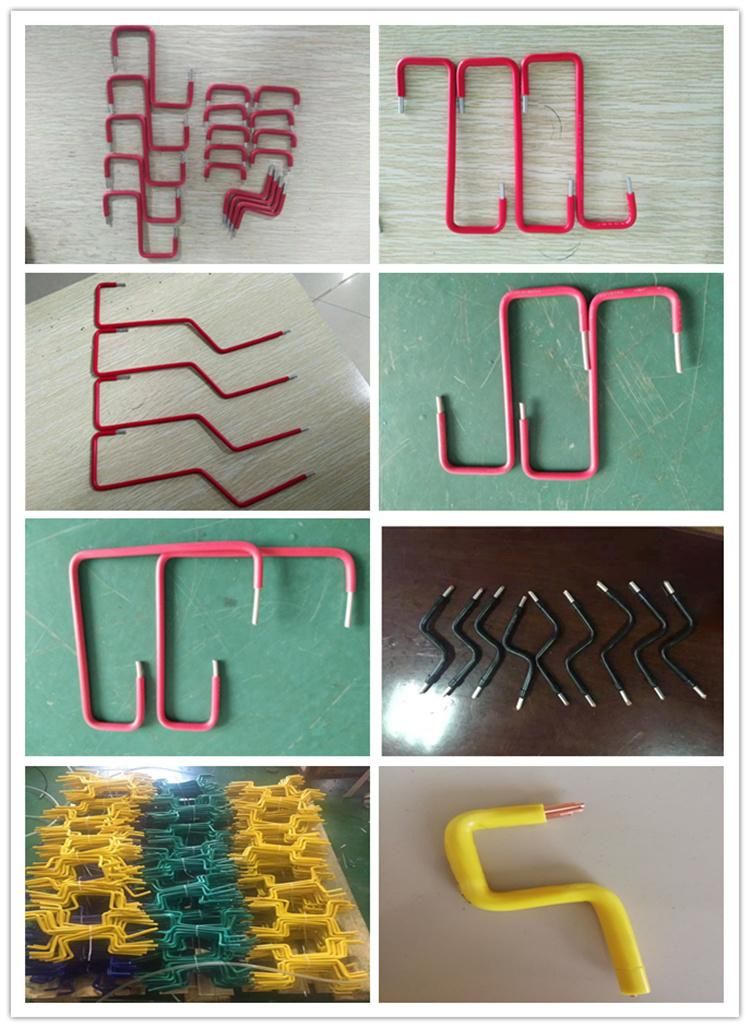

Sample: cut and strip wire automatically
Other Model
If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
Any questions, please feel free to contact us! Thank you !
