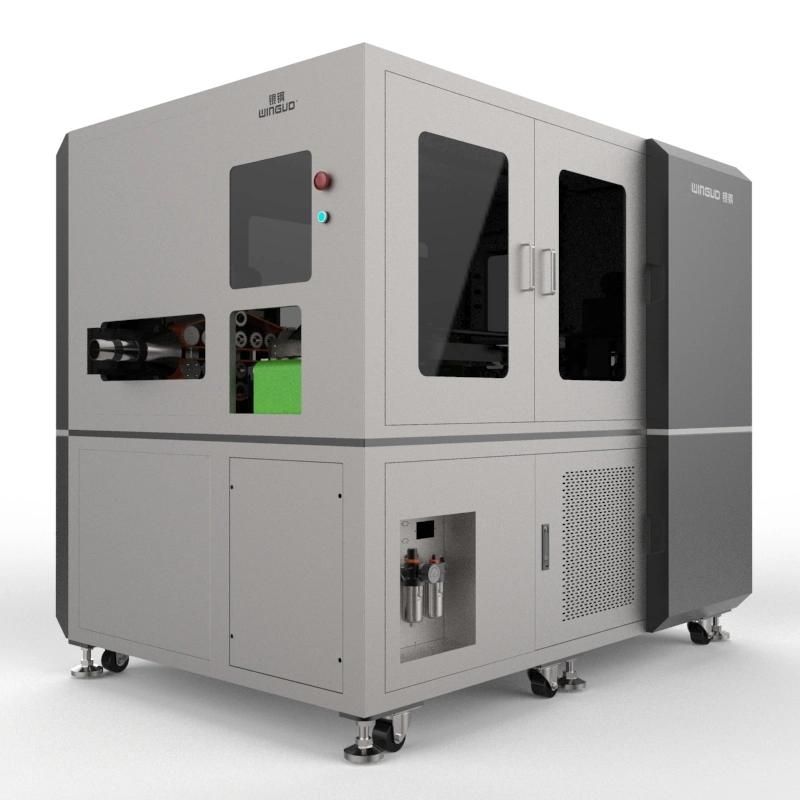

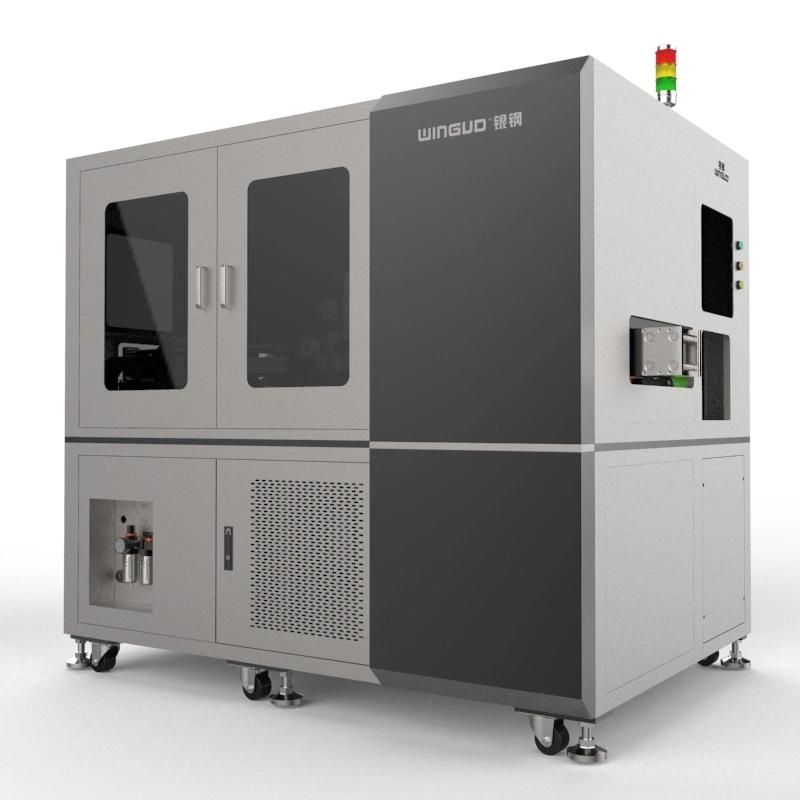

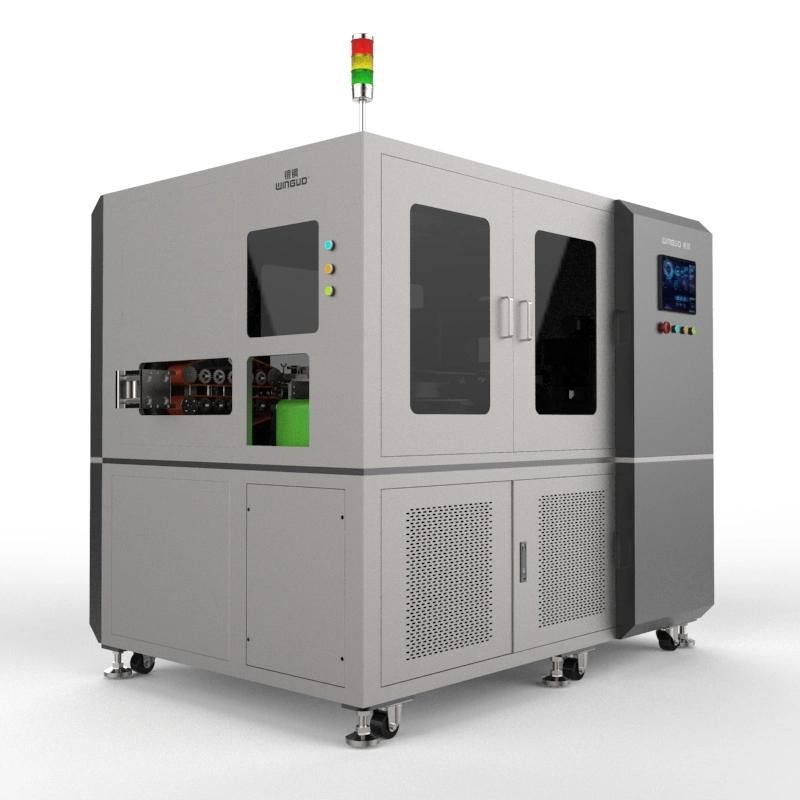

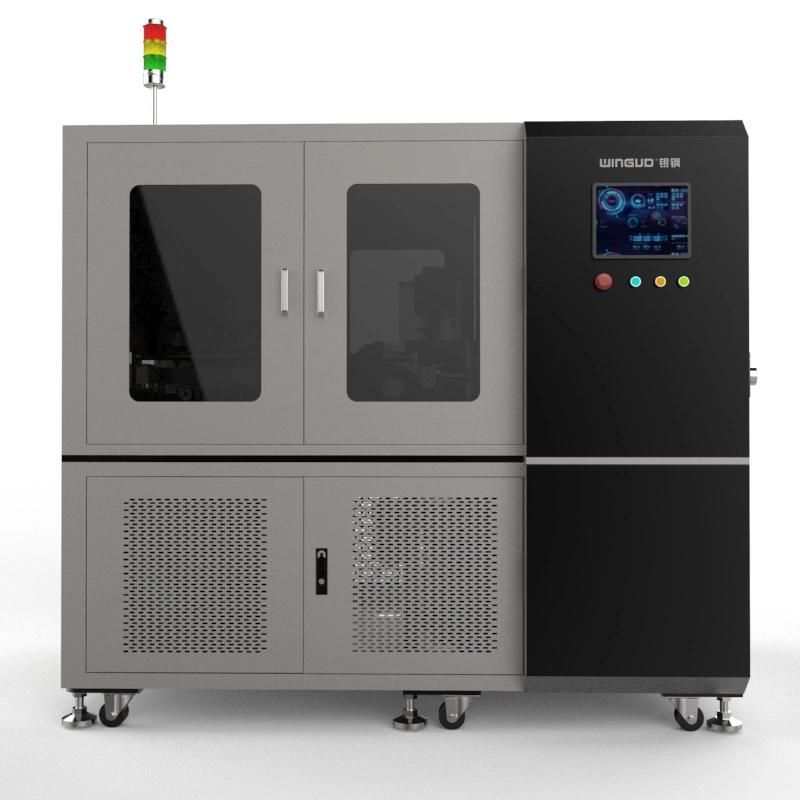

Wire Harness Wiring Cutting and Stripping Machine with Computer Type
GUANGDONG WINGUD INTELLIGENT TECHNOLOGY CO., LTD.- Driven Type：Electric
- Condition：New
- Certification：ISO
- Warranty：12 Months
- Automatic Grade：Automatic
- Power Supply：AC110,220V, 50,60Hz
Base Info
- Model NO.：WG-9950
- Power Consumption：Min.20W-Max.380W
- Funtaion：Stripping & Cutting
- Wire Diameter Range：5-25mm
- Stripping Layers：1-9
- Strip Length：250-400mm
- Stripping Mode：Rotary Blade, Cutter and Stripping Blade
- Transport Package：Wooden Case
- Specification：1430*700*1300mm
- Trademark：wingud
- Origin：China
- Production Capacity：120,Month
Description
corresponding processing cable: BV line, BVR hard line DC charging gun cable, AC charging gun cable, high-voltage cable (only peel the skin) electric vehicle battery cable processing cable maximum processing length: 20mm (standard) standard cable head end maximum peeling length: 750mm. Standard cable end of the maximum stripping length: 1200mm. Semi-stripping Feeding method:Belt Feeding Consumables Feeding blade method:Motor + ball Screw Machine processing method: Double-ended peeling processing rotary blade Material: Powder high-speed steel consumables peeling blade Material: Powder high-speed steel consumables Stripping method: Rotary knife peeling, peel Operation mode: Touch screen digital operation Size: 1900mm long, Width 1300mm, high 1300mm Total weight: 650kg (around) Power: 5.5 kw (actual operation of 1.8 kw) Voltage: AC220V
