• Wire Length：65-9999mm
• Cutting Lenght：45-99999mm
• Productivity：1800-2000 PCS,H
• Air Pressure：0.4-0.6MPa
• Cutting Wire Accuracy：0.01*Lmm (L =Cutting Length )
• Tube Length：3.0-6.0mm
• Crimping Capacity：2t
• Transport Package：Wooden Carton
• Specification：1600*900*750mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Wire Length 65-9999mm Cutting Lenght 45-99999mm Productivity 1800-2000 PCS/H Air Pressure 0.4-0.6MPa Cutting Wire Accuracy 0.01*Lmm (L =Cutting Length ) Tube Length 3.0-6.0mm Crimping Capacity 2t Transport Package Wooden Carton Specification 1600*900*750mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

Fully automatic single side wire crimping shrink tube insertion and heating shrinking machine



Terminal Crimping Machine Function:

Wire size cutting, end stripping, single end half stripping, single wire single end crimping, single end heat shrinkable tube insert and heating shrinking



Specifications:

Name	Fully automatic single-head heat-shrinkable tube inserting and terminal crimping machine
Model	WL-D710
Dimension	L2660 * W800 * H1600mm
Wire size	AWG10-AWG20
Tube size	3.0-6.0MM
Tube length	15-26mm
Wire cutting length	75-9999mm (The shortest cut length varies depending on the crimping die used)
Dimension	1450*800*1400
Weight	350kg
Function	The wire is cut to setted size, stripped at both ends, single-ended and semi-stripped, single-wire single-double-end crimping, automatic cutting sleeve, automatic baking sleeve, full digital touch screen control.
Capacity	Single inserting 3200-3500 Pieces/H
Configuration	1.TBI Screw  2.SMC  Cylinder  3.Hechuan servo   4.HIVIN   Slide rail
Detection device	Whether there is wire detection, heat shrinkable tube detection, wire knot detection, crimp terminal detection and air pressure detection.

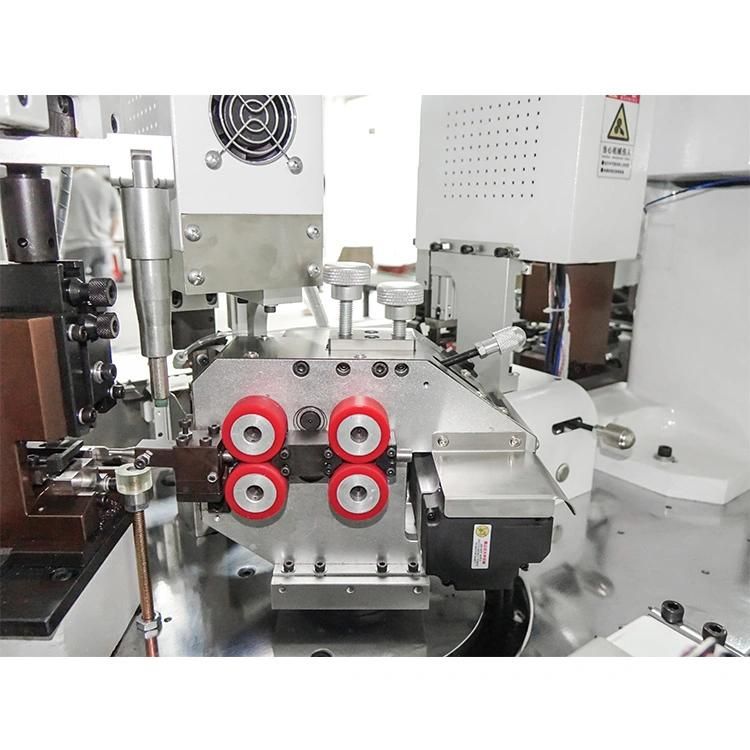

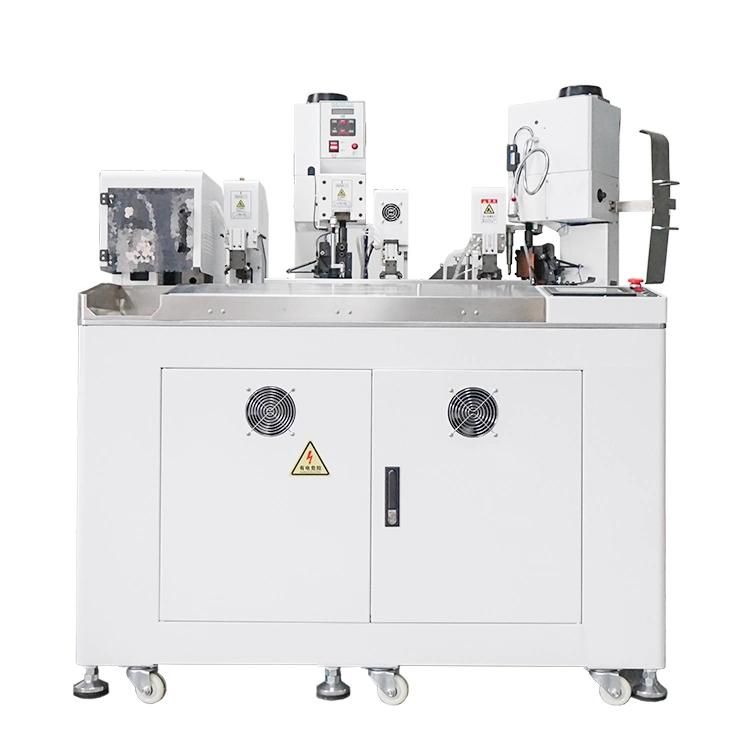

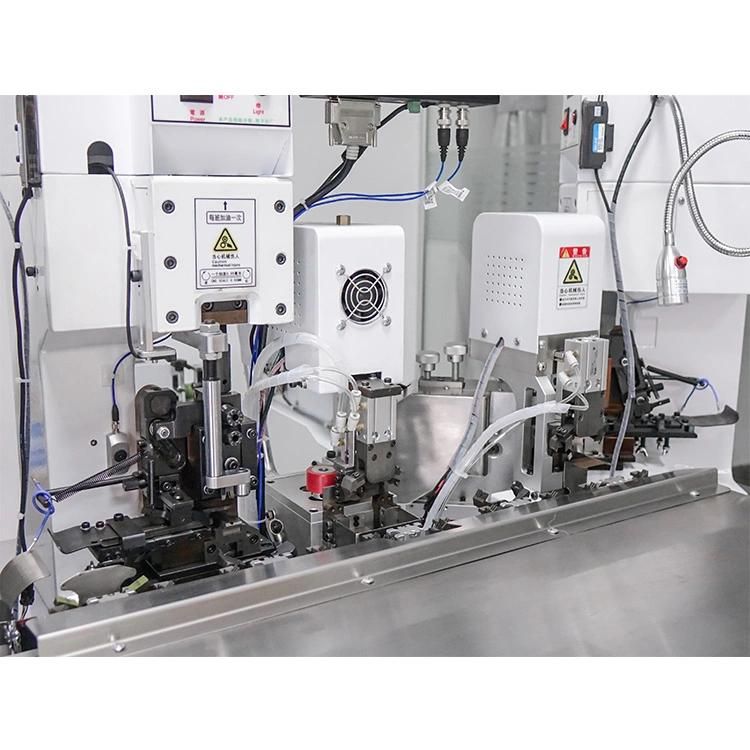

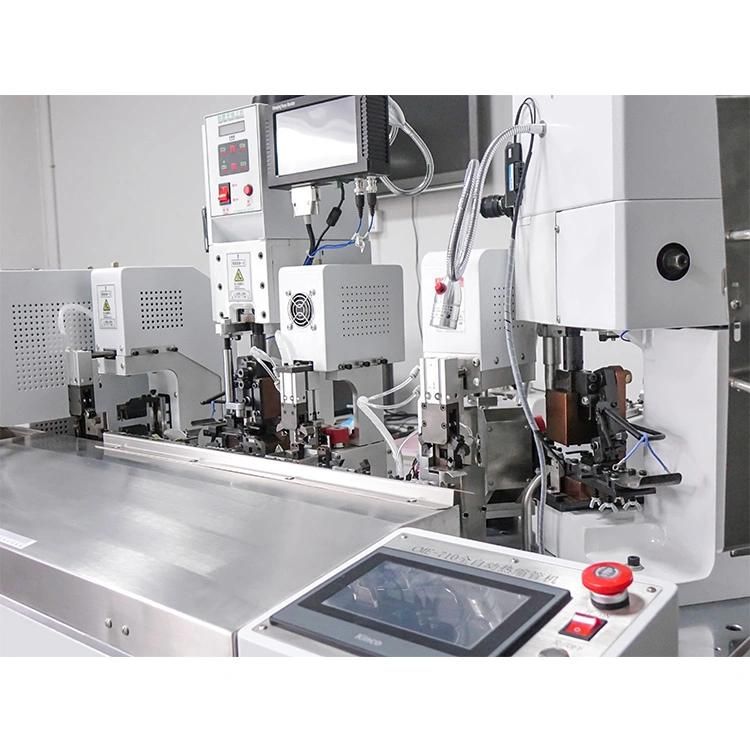

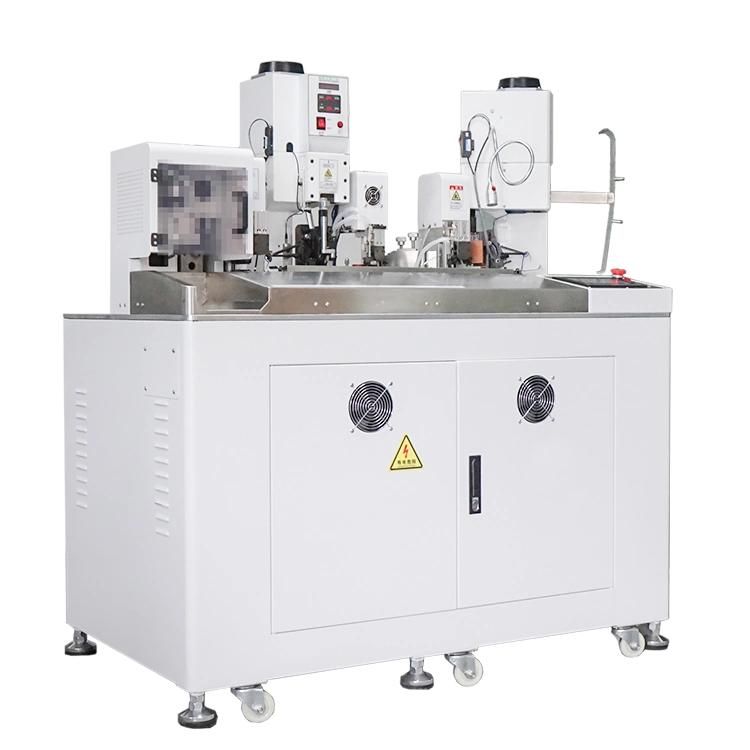

Detail image:

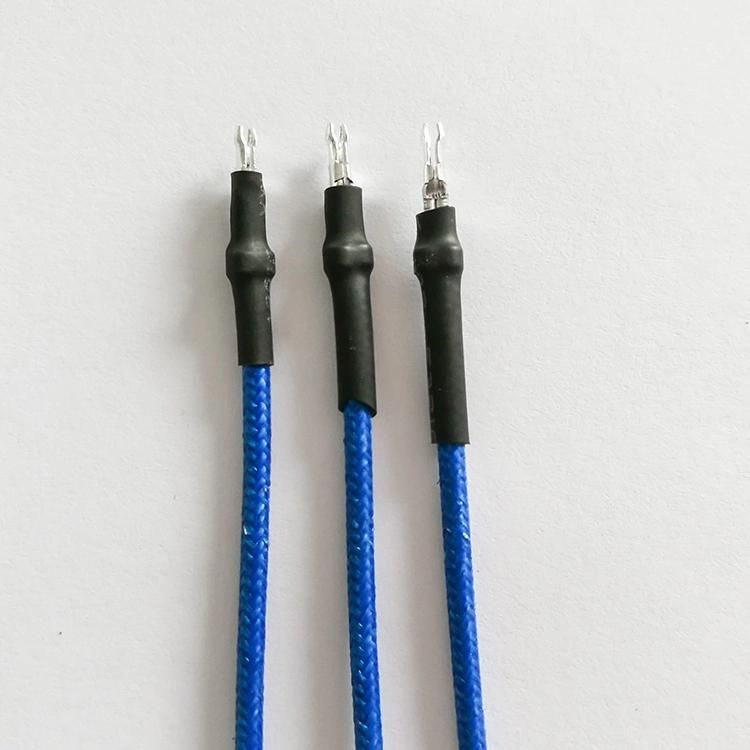

Finished products of this machine below:








Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like





Company Information



 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance


If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.

Contact:
Pls contact Suzhou Crown Emy Zhou for price inquiry or any other questions/doubt.
