Copper Wire Annealed Cable Wire Winding Cutting Extrusion Twisting Winding Bunching Machine
Kunshan Fuchuan Electrical and Mechanical Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：ISO
- Automatic Grade：Automatic
- Usage：Bunch Above 5PCS Alloy Wire, Back Twist Function
- Single Wire Diameter：0.016-0.04mm
Base Info
- Model NO.：FC-500C
- Stranding Section Area：0.0014-0.035mm2
- Pitch：0.55-1.9mm(15areas)
- Direction of Lay：S Direction
- Take up Bobbin Size：Dia125*20*120
- Max Rotating Speed：5000rpm(10000twist)
- Main Motor Power：2.2kw
- Inverter Power：2.2kw
- Protection：Machine Will Automaticlly Brake When Wire Inside
- Transport Package：Common
- Specification：ISO
- Trademark：FC
- Origin：China
- HS Code：8479811000
- Production Capacity：10PCS,Month
Description
Basic Info.
Model NO. FC-500C Stranding Section Area 0.0014-0.035mm2 Pitch 0.55-1.9mm(15areas) Direction of Lay S Direction Take up Bobbin Size Dia125*20*120 Max Rotating Speed 5000rpm(10000twist) Main Motor Power 2.2kw Inverter Power 2.2kw Protection Machine Will Automaticlly Brake When Wire Inside Transport Package Common Specification ISO Trademark FC Origin China HS Code 8479811000 Production Capacity 10PCS/MonthProduct Description

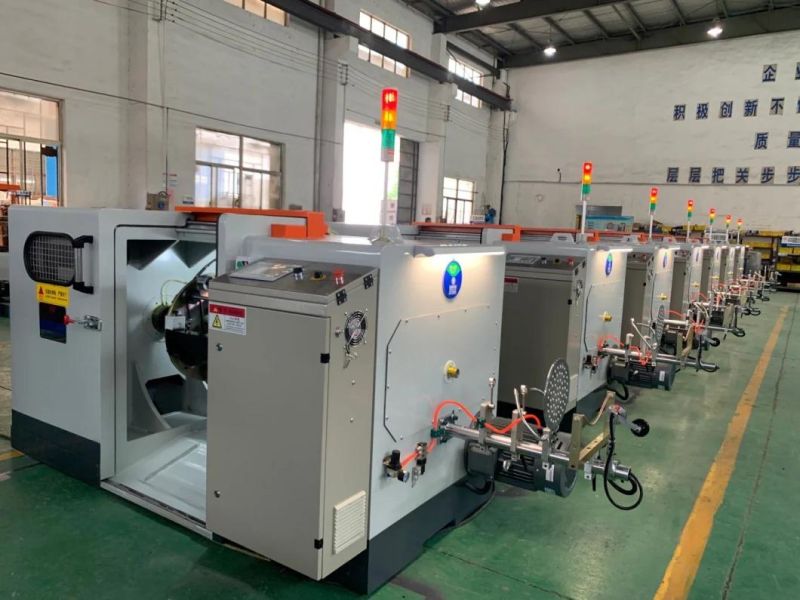

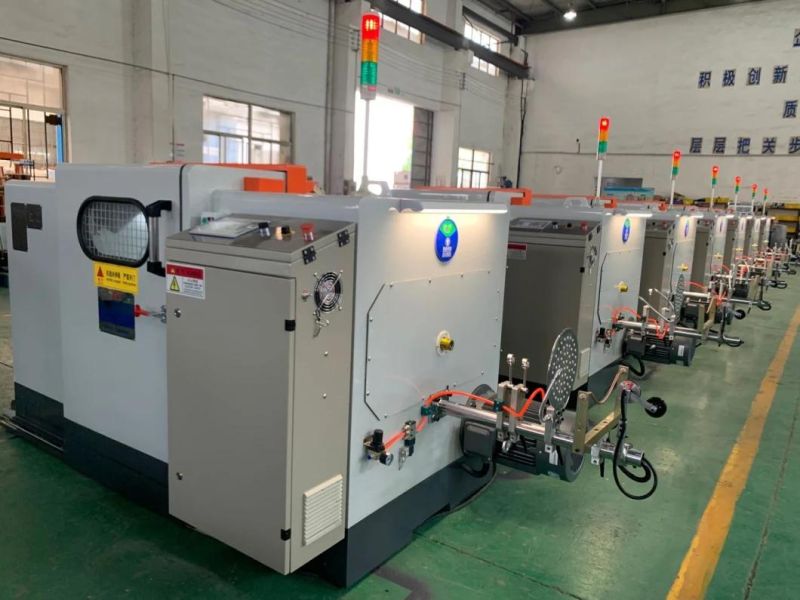

FC-500C high speed bunching machine1. Application

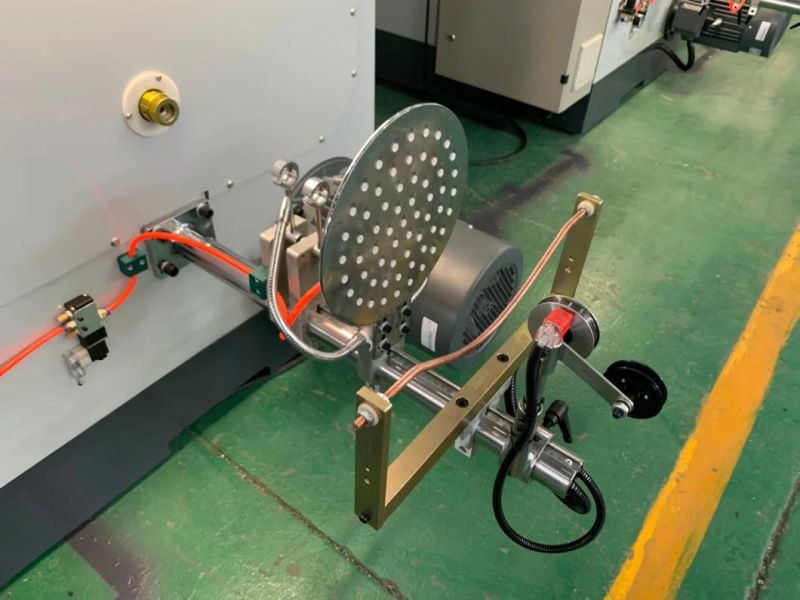

It's equipped with pay-off for bunching machine, with the function of pre-twist, it may realize bunching instead of twisting to meet requirements of customer to twist of small crossection area.
2. Parameter:
Single wire dia: φ 0.08-φ 0.45mm
Take up bobbin dia: φ 500mm
Max Rotating Speed(rpm): 3000
For more details, please do not hesitate to contact me.
