• Cable Width：53mm
• Stripping：up to 5 Sections
• Operation Mode：PLC and Touch Screen
• Motor System：Panasonic Servo Motor
• Transport Package：Wooden Case
• Specification：600*700*1350mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479899990
• Production Capacity：100 Sets,Month

Specification: ModelSR-5305Y axis stroke50mmCable width53mmStrippingUp to 5 sectionsX&Y axis positioning accuracy+/-0.02mmOperation modePLC and touch screenMotor systemPanasonic servo motorMax. loading weight50KgAxis transmission methodY axis: servo motor and one-way ball screw
X axis: servo motor and two-way ball screwProgram storageCapacity can be expanded to 20 groupsVoltage and PowerAC220V, 0.7kwDimensions600*700*1350mmMachine weight75kg



 Features:



1, Equipped with touch screen, stripping length, stripping depth, stripping section can be adjusted easily.

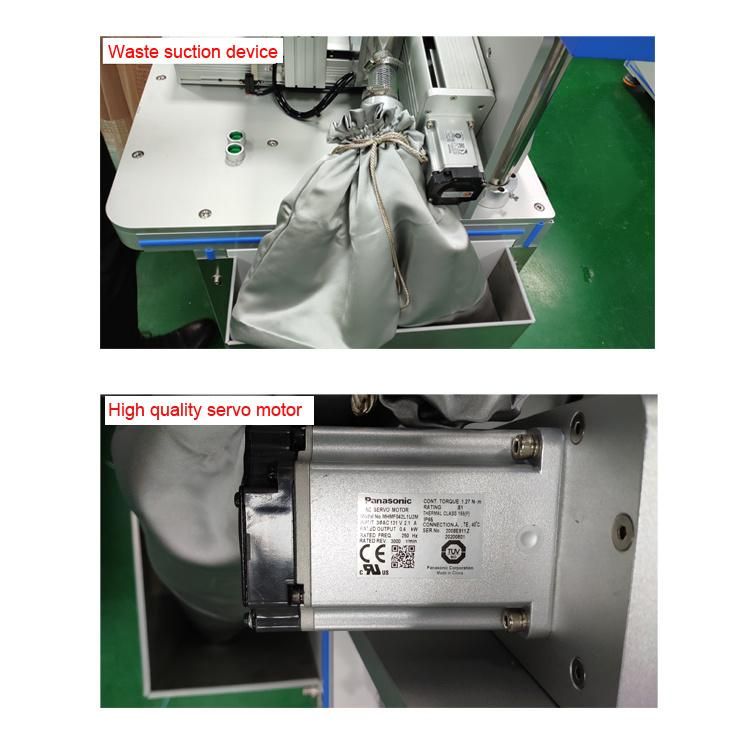

2, Controled by Panasonic servo motors, with high precision stripping.

3, Motion module adopts ball screws, high accurate moving.

4, Cut and strip the wires neatly, to facilitate soldering.

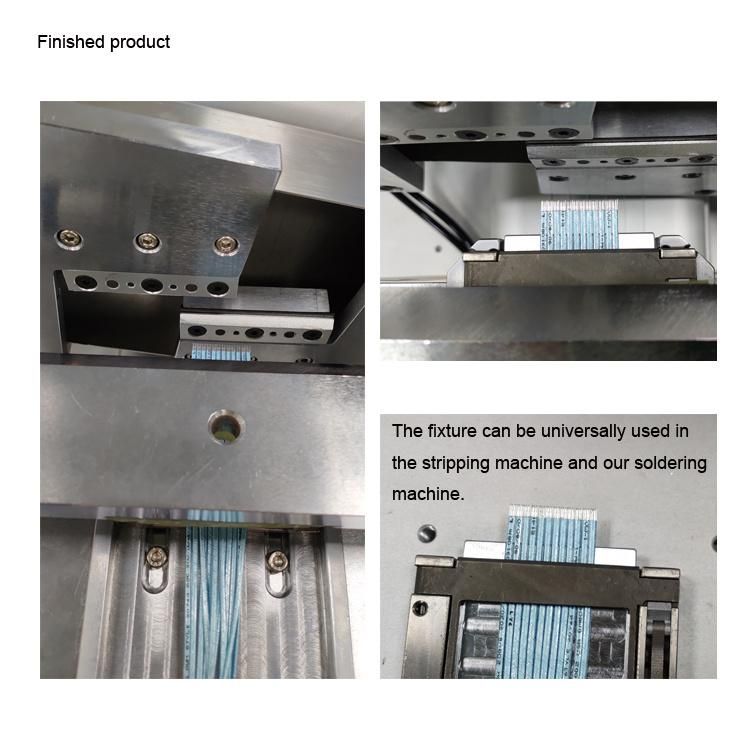

5, The fixture for the cable stripping can be used to next process soldering, without replacement of fixture. Suitable for our pulse welding machine.



Pictures:



Service:

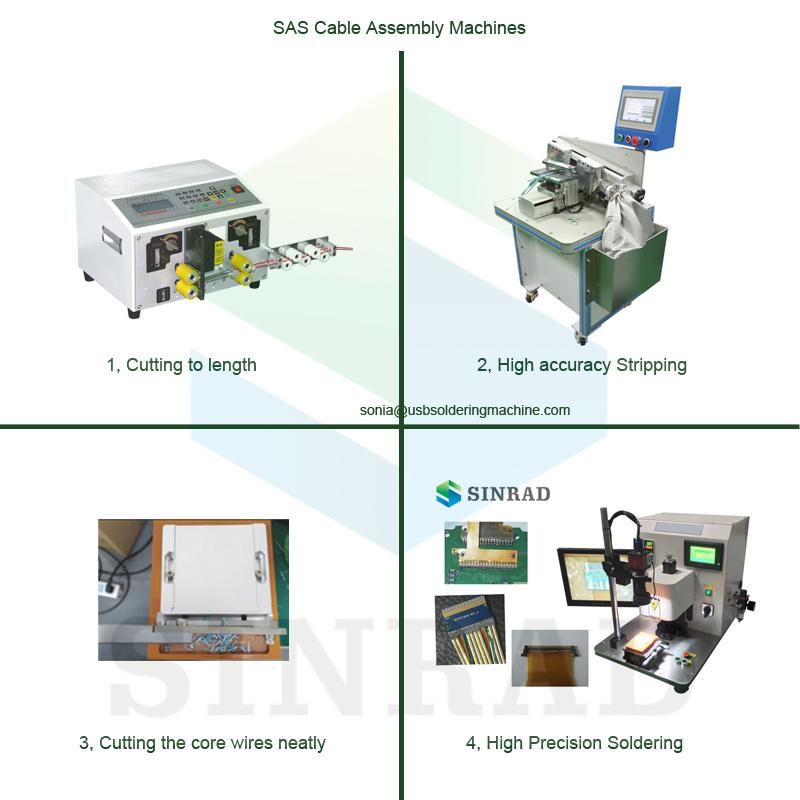

High speed cable assembly machines:



 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
