• Model NO.：T6
• Automatic Grade：Automatic
• Type：Medium-speed Chip Mounter
• Weight：500kg
• Component Available：0603 and Above SMD Component and LED, Sot, Sop
• Typical Mounting Speed：13000-14000cph
• Mount Head：6 PCS
• Dimension：2600*680*1500mm
• Max Circuit Board Size：1200*350mm
• Transport Package：Wooden Package, 1 Set ,PC, About 550kgkg
• Specification：CE
• Trademark：Termway
• Origin：Beijing, China
• HS Code：8479896200
• Production Capacity：50set,Year

Basic Info.

Model NO. T6 Automatic Grade Automatic Type Medium-speed Chip Mounter Weight 500kg Component Available 0603 and Above SMD Component and LED, Sot, Sop Typical Mounting Speed 13000-14000cph Mount Head 6 PCS Dimension 2600*680*1500mm Max Circuit Board Size 1200*350mm Transport Package Wooden Package, 1 Set /PC, About 550kgkg Specification CE Trademark Termway Origin Beijing, China HS Code 8479896200 Production Capacity 50set/Year

Product Description

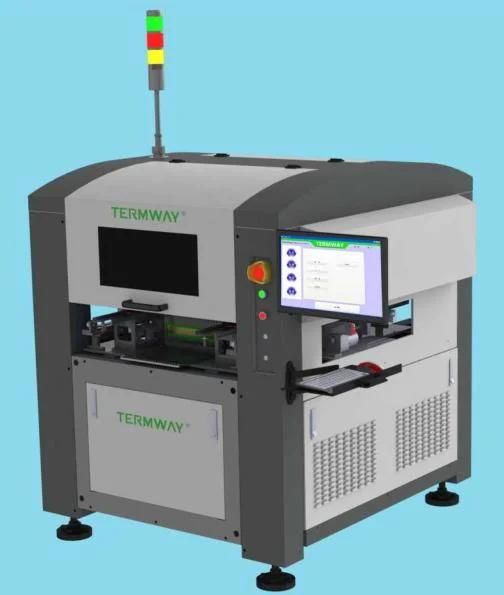

Automatic epoxy bulk material mounter--T6/T6PLUS



T6/T6PLUS introduction
The special full-automatic placement machine for bulk materials can install various components through the vacuum suction
nozzle. It is an automatic placement equipment for bulk materials with high cost performance in the market. It is the smart
choice of bulk material Mounter for small and medium-sized enterprises, R&D centers, enterprises and research
institutes. Reliable mounting 0402, 0201, equipped with visual alignment system to meet the mounting of high-precision QFP IC
or BGA chips In addition to the standard circular reference point, square PCB pads and ring perforated pads without silk screen
solder paste can also be identified as reference points. At the same time, the equipment has the function of glue distribution.

T6/T6PLUS Function introduction
1.Equipped with first-class grating ruler to realize high-precision motion control and high-precision repeated
mounting of the whole machine.
2.The high-precision motion platform made of magnesium and aluminum can effectively ensure the stability of the
motion accuracy of the mounter in long-term use. At the same time, the integrated structure also has very excellent
seismic capacity.
3.International first-class high-speed motion system and high-precision linear guide rail are adopted to effectively
improve the patch accuracy.
4. Professional industrial cameras and lenses are used to ensure the high precision and accuracy of visual alignment,
and complete the visual alignment and installation of high-precision components.
5.Automatic visual programming, simple operation, convenient for beginners, convenient and practical. It can import
circuit board data omnipotently.
6.The universal circuit board positioning device is convenient for the mounting of various circuits
7. The machine has the automatic detection function of circuit board height and the alarm function of component
picking failure, which can effectively improve the production quality.
8.It has electric bulk tray feeder, electric braiding feeder, pipe feeder and IC tray area. It has the pasting function of
bulk material, braiding and short material belt.
9. It has the function of off-line feeding, and can carry out bulk feeding under the off-line state.
10. It has the function of CAD data import and offline programming, and can program PCB files generated by CAD
software (Protel, dxrcadencezmentor graphics)
12. It has the automatic mounting function of chip bulk material elements. The picked up materials are automatically
picked up and the pasted materials are automatically pasted, and the bulk materials are placed at will. At least 60 kinds
of bulk materials can be pasted at one time. It is equipped with 4 groups of bulk material pallets, and the configuration
of charging cart can meet the mounting of 160 kinds of bulk materials.
14.Equipped with automatic nozzle changing system to meet the non-stop installation of different materials.

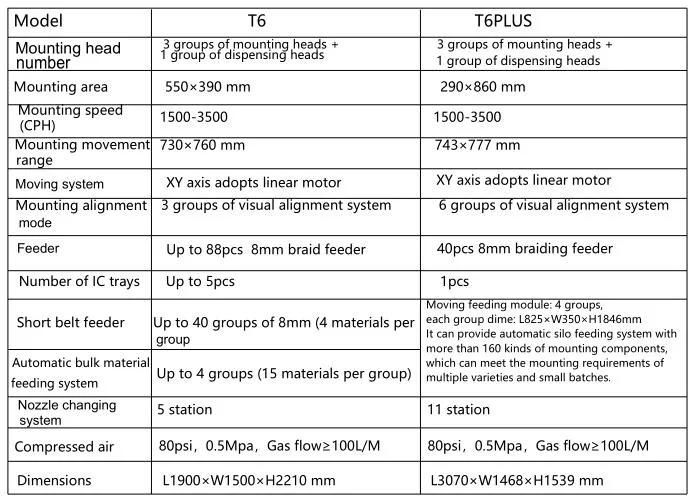

Technical parameter
