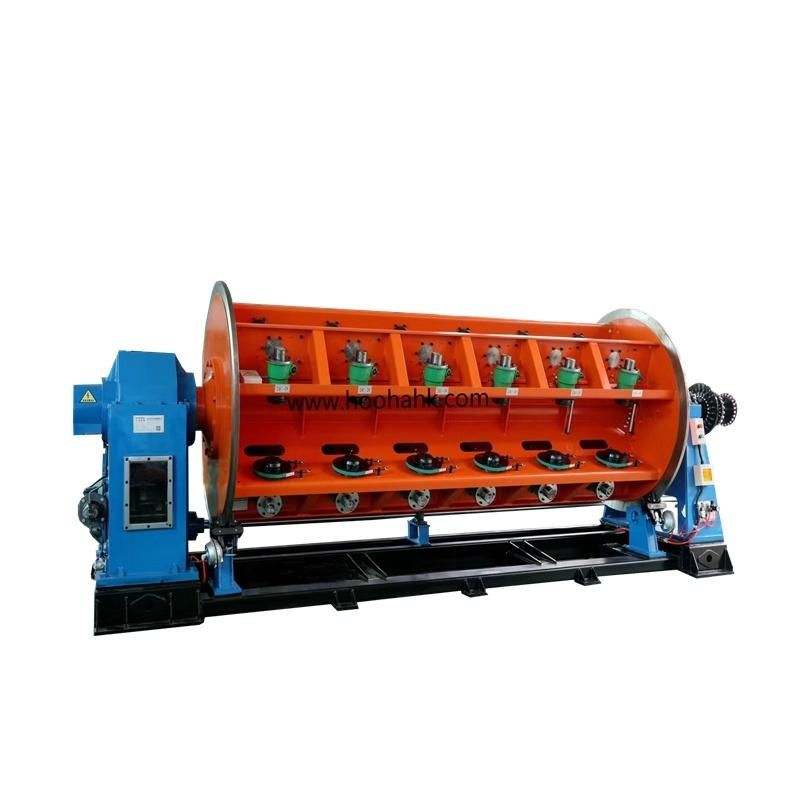

Wire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding Machine

HOOHA Co., LIMITED
  • After-sales Service：12 Month
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：HH-6+1-630
  • Mould Life：>1,000,000 Shots
  • Type：Single Stranding Machine
  • Transport Package：PE Plastic
  • Specification：1000kg
  • Trademark：HOOHA
  • Origin：Guangdong, Dongguan
  • HS Code：8477209000
  • Production Capacity：10sets,Month

Description

1.Adopt 100% back-twist mode and suitable for stranding 2-6 cores ABC overhead cable, control cable or power cable;2.The main motor, traction capstan (or caterpillar) and take-up device are independently driven by AC induction servo motor; Pitch automatic adjusted;3.The whole machine adopts HMI+PLC control;4.Equipped with manual adjustment tape tension system regulation and electromagnetic tensioner, automatically control and ensure the tension always constant from full to empty bobbin.5.Optional: max 24 filling devices.
SpecificationStranding distance300-500mmMain body speedMax 400RPMStranding speedMax 80m/min Equipment directionleft release and right collectionEquipment colorsky blue (national standard 5015)bobbin typesingle head shaftless top cone typespool rotation modJapan NSK bearing rotationmaximum total load1000KGShaft diameterPD400-630mmHost motor22kw

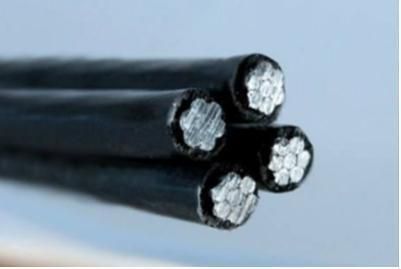

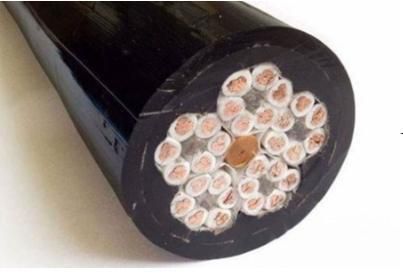

Sample Picture
Wire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding MachineWire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding MachineIt's suitable for twisted wire, power line, control line, special line wire core and copper wire stranding.

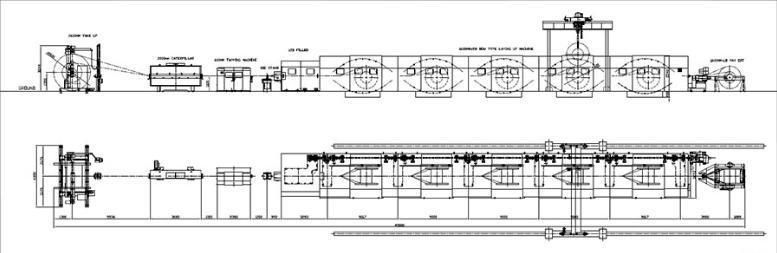

Layout of Equipment
Wire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding Machine

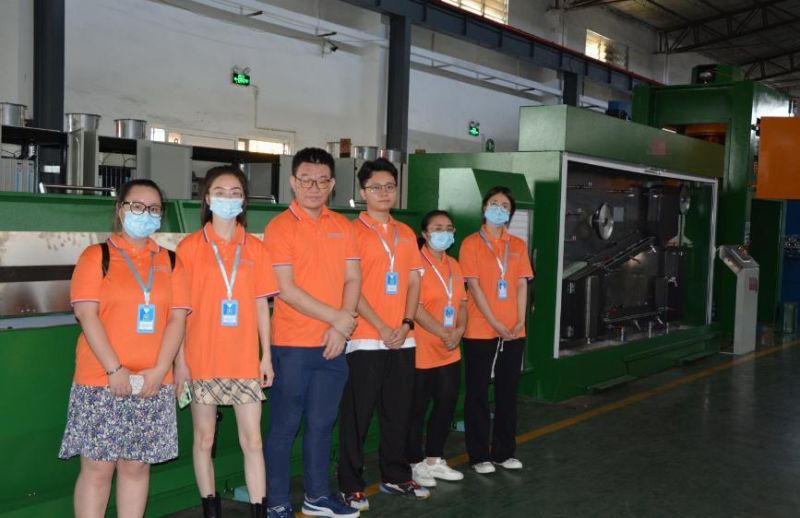

Factory Picture
Wire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding MachineWire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding MachineWire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding Machine

Company Profile
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions.

Wire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding MachineWire and Cable Machine Machine with Sky Blue Bow Type 630/800/1250/1600mm Type Equipment Stranding MachineOur professional sales and engineering team
