Planetary, Cradle, Bow Type Laying up Machine for Manufacturing Electrical Cable and Wire
Hejian Bao Hong Electrical Machinery Co., Ltd.- After-sales Service：One Year Warranty
- Driven Type：Electric
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：500,6+12+18
- Mould Life：>1,000,000 Shots
- Type：To Back Stranding Machine
- Material：Metal
- Colour：as Required
- Wire Diameter Specification：1.5-4.0mm
- Cage Speed：80-106 Rpm
- Stranding Pitch：79-1075 mm
- Traction Wheel Diameter：2000 mm
- Pay-off Bobbin in Cage：Pnd 500
- Central Pay-off Bobbin：Pnd 50
- Take-up Bobbin：Pn1250-Pn2500
- Central Height：1000 mm
- Transport Package：Seaworthy Packing
- Specification：500 , 1+6+12+18
- Trademark：BH
- Origin：Hejian, Hebei, China
- HS Code：8479400000
- Production Capacity：15 Sets,Month
Description

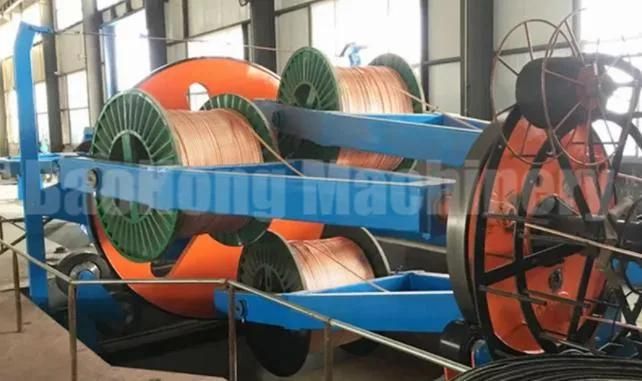

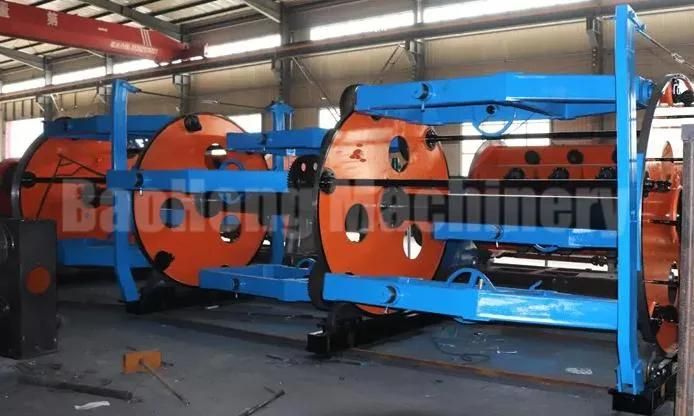

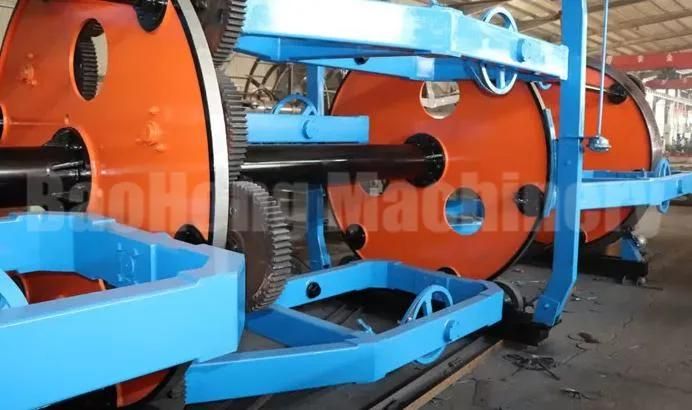

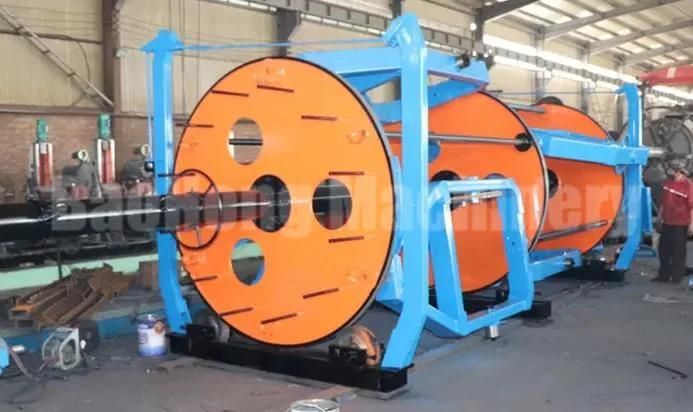

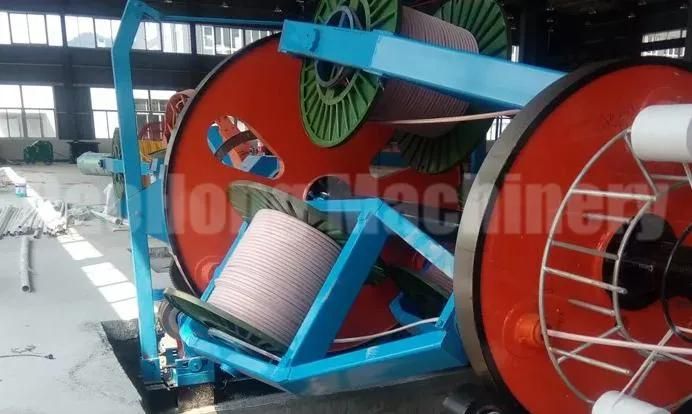

5.Photo
