• Model NO.：N250
• Ber of Heating Zones：2
• Body Size：1800(L)*1200(W)*1600(H)
• Air Supply：0.5 MPa
• Weight：700kg
• Heating Zones：2
• Flux Capacity：3.2L
• PCB Width：250mm
• Solder Capacity：220kg
• Control System：PC Keyboard and Touch Screen
• Transport Package：Wooden Box
• Specification：1800*1200*1600mm
• Trademark：JAGUAR
• Origin：China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. N250 Ber of Heating Zones 2 Body Size 1800(L)*1200(W)*1600(H) Air Supply 0.5 MPa Weight 700kg Heating Zones 2 Flux Capacity 3.2L PCB Width 250mm Solder Capacity 220kg Control System PC Keyboard and Touch Screen Transport Package Wooden Box Specification 1800*1200*1600mm Trademark JAGUAR Origin China Production Capacity 100 Sets Per Month

Product Description

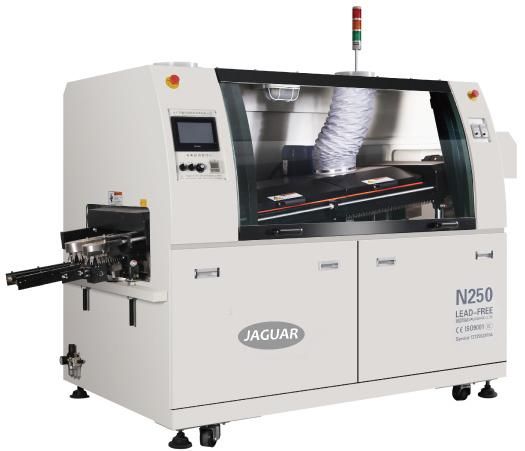

LED Wave Soldering Machine Made by Jaguar/Good Perfomance High Stability wave soldering

Touch tone lead-free dual wave soldering machine





Specification:

Model No.	JAGUAR N250
Number of heating zones	2
Length of heating zones	600mm
Body size	1800(L)*1200(W)*1600(H)
Outside dimension	2600(L)*1200(W)*1600(H)
Weight	700KG
Total/running power	11KW/4-6KW
Air supply	0.5MPa
Preheating method	Hot air
Preheating power	220V 5KW
Control  method	Press key +PLC (Option: touch screen, PC)
Range of temp. control	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder type	Lead-free / Sn-Pb
Solder pot capacity	220KG
Solder pot temperature	300ºC
Solder power	380V 6KW
Solder temp. control method	PID&SSR
Wave crest drive power	500W 220V
Warm-up time of solder	About 120mins for setting 250ºC
PCB  width	50-250mm
Convey  speed	0-1800mm/min
Convey  direction	L→R (R→L optional)
Convey   angle	4-7 º
Flux pressure	3-5 bar
Flux capacity	3.2L

INTRODUCTION:
1. Automatic conveying power system and auto synchronous board feeding functions.

1. Tin stove peak uses frequency conversing speed adjustment which can independently control the wave height.
2. Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
3. PLC is used to control the machine, to ensure the reliability and stability of the system.
4. With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.
5. Special alloy transportation chain claws, non-stick tin and ensures the
6. quality of welding PCB board.
7. Tin stove adopts imported high frequency conversion motor independent control, stable performance.
8. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
9. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
10. Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
11. automatic claw cleaning function ensure the cleanliness of claws.
12. Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
