• Model NO.：XJ30,40,50,60
• Usage：Use for Condutor Single Layer
• Wire Specification：AWG30-AWG24
• Extrusion Material：HDPE, PP, PU, PVC, Sr-PVC(Xj-50)
• Screw Parameter：L,D Radio: 26-28:1
• Screw Material：38crmoaia, Vacuum Heating
• Highest Outoput：60kg,H
• Highest Wire Speed：600m,Min
• Power：15HP
• Temperature-Control Segments(Boby+Head)：4+2
• Precision：High Precision
• Transport Package：PE Film + Wooden Pallet
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. XJ30/40/50/60 Usage Use for Condutor Single Layer Wire Specification AWG30-AWG24 Extrusion Material HDPE, PP, PU, PVC, Sr-PVC(Xj-50) Screw Parameter L/D Radio: 26-28:1 Screw Material 38crmoaia, Vacuum Heating Highest Outoput 60kg/H Highest Wire Speed 600m/Min Power 15HP Temperature-Control Segments(Boby+Head) 4+2 Precision High Precision Transport Package PE Film + Wooden Pallet Specification CE SGS Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 10 Sets/Month

Product Description

Machine to produce PVC cable

Specification and configuration for ø50mm core wire insulation extrusion machine     1). Application of Core Wire Insulation Cable Machine:
Used in high-speed insulation extrusion for PVC/SR-PVC/HDPE/PP/PU wire and cable.

2). Main specification of Core Wire Insulation Cable Machine:

A. Concentricity: 93-97% OD tolerance: Solid +/-0.005
B. Wire specification: AWG30-AWG24 (0.1mm-1mm)
C. Body temperature will be controlled within ±1ºC, working speed: 400-600m/min (depends on wire diameter)
D. Extrusion material: HDPE, Foam-PE, PP, PU, PVC, SR-PVC, etc.
E. Machine color: As required.
F. Operation direction: Right hand or Left hand (As required)

3). Main parts of Core Wire Insulation Cable Machine:

(A) ø300-500mm single-head active pay off
(B) ø50mm main extruder
(C) Electrical control cabinet
(D) U7 domestic extrusion crosshead
(E) 1.8M movable cooling water tank
(F) Laser diameter tester (Eectrl)
(G) 9M single layer cooling water tank
(H) 9M high precision horizontal accumulator
(I) High frequency spark tester
(J) ø250 dual capstan + ø500 double-bobbin take-up machine

4). Brand of main accessories with Core Wire Insulation Cable Machine

A. Motor: Siemens
B. Frequency converter: Yaskawa
C. Bearing: NSK (Japan brand)
D. Electrical component: Siemens or Omron
E. PLC controller: Siemens

5). Spare parts

Name	Unit	Qty
Tool box	Piece	1
Operation instruction and circuit diagram	Piece	1
Inside hexagonal spanner	Piece	1
Round nut spanner+type and type screw	Piece	1 for each
Scissors, pointed forceps	Piece	1 for each

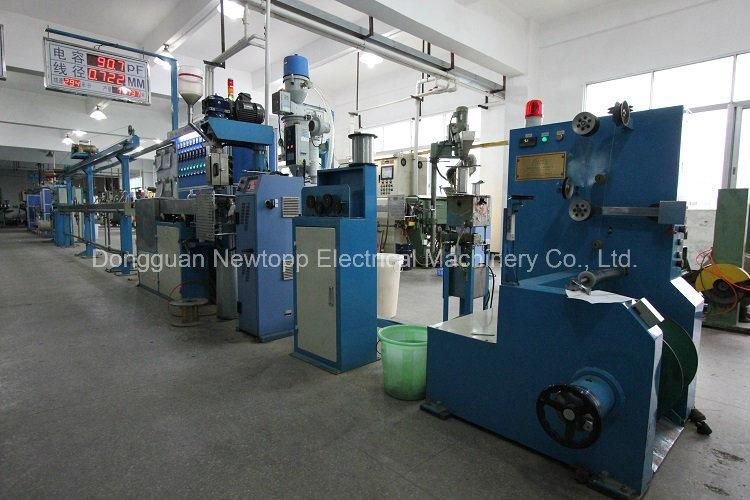

Core Wire Insulation Cable Machine Show As below:

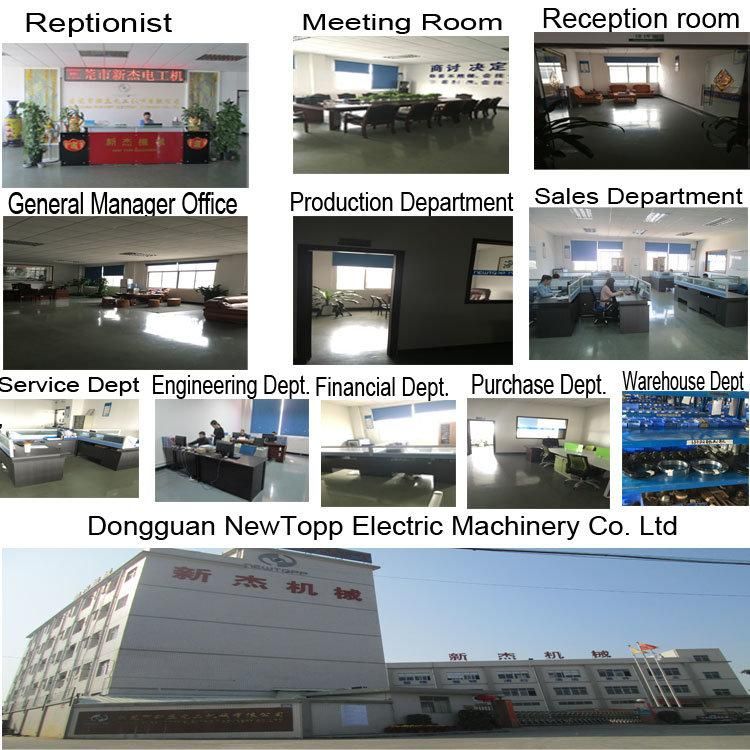

Company Introduction(Why choose us):

1. Dongguan NewTopp Electrical Machinery Co., Ltd is a profeesional enterprise specializing in Wire&Cable equipment R&D, design and Manufacture, Located in Humen Town, Dongguan City. It has very convenient transportation because of the high-speed rail, welcome our customers come to visit our factory at any time.

2. We were founded in Year 2009 but we are famous in cable machine business line and enjoy the higher reputation, our competitors regards us as "dark horse" becuase our rapid development, we are full of passion and energy, also we keep innovating. We have 10 patented products.

3. There is almost 5000 square meter of our company, we have workers about 100. Also we have a system departments: Such as Financial department, Engineering department, After-sales service department, Purchasing department, Production department, Sales department, Personnel departmentManagement department etc.
