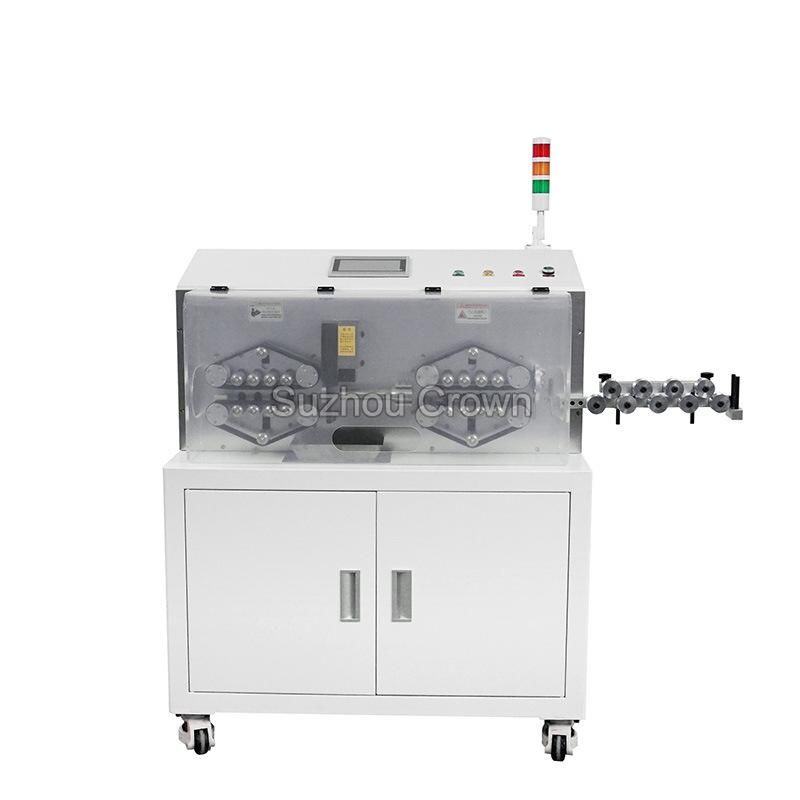

3 Layers Thick Cable Cutting and Stripping Machine Wl-B150
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type：Electric
- Condition：New
Base Info
- Model NO.：WL-B150
- Certification：RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Model：Wl-B150
- Available Wire Size：6mm2-150 mm2

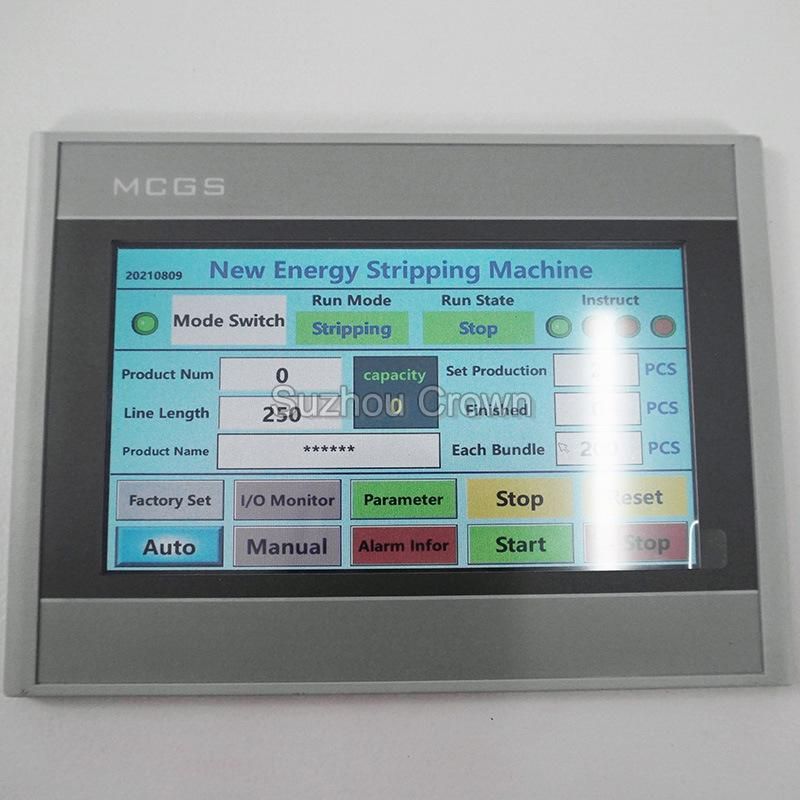

- Operation Interface：7-Inch Touch Screen PLC
- Memory Function：up to 100 Groups of Programs Can Be Stored
- Blade Material：Imported High-Speed Steel
- Maximum Catheter：28mm
- Stripping Length：Wire Head: 0-500mm, Wire Tail: 0-250mm
- Minimum Cutting Length：60mm
- Cutting Length：0-100 Meters (More Than 100 Meters Can Be Customiz
- Stripping Program：Maximum Support 3 Layers of Peeling Function
- Processing Speed：1,500-2,000 Pieces,Hour (Depending on Cable Length
- Transport Package：1180*650*1200mm
- Specification：270kg
- Trademark：Crown
- Origin：China
- HS Code：8479819000
- Production Capacity：100set,Month
- Package size per unit product：120.00cm * 80.00cm * 140.00cm
- Gross weight per unit product：300.000kg
Description
Application
Machine:
Features:
This machine is widely used in wire processing of various industries such as electronics industry, automobile and motorcycle parts industry, electrical appliances, motors, lamps and toys.

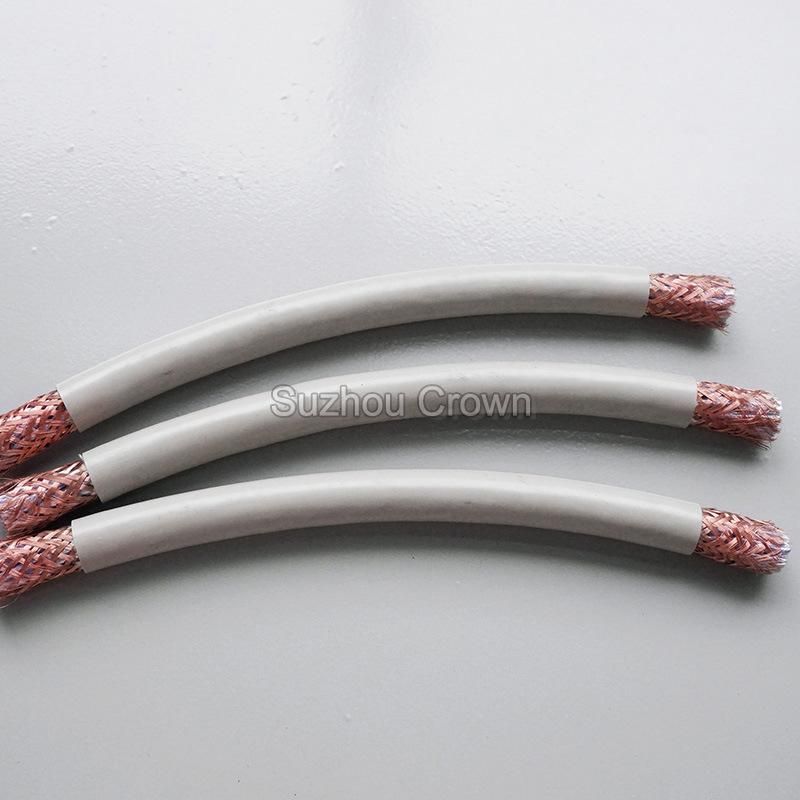

Suitable for cutting and stripping PVC cables, Teflon cables, silicone wires, fiberglass wires, etc.
LCD screen, simple operation, convenient maintenance, stable performance, fast speed and high precision
Wire length can be set freely according to customer request
Max wire size: 150mm2

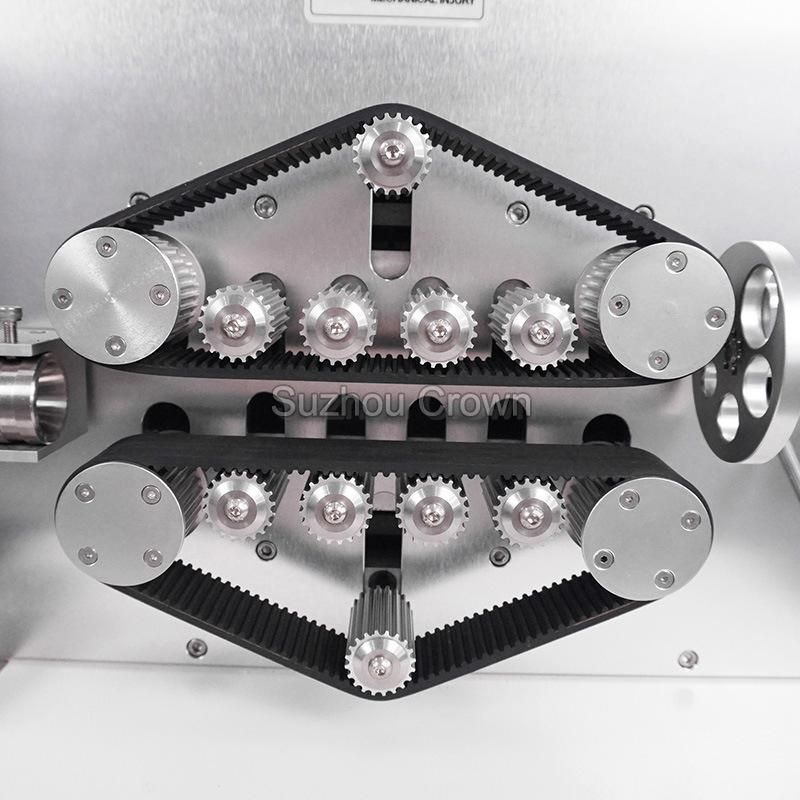

Drive mode: 8-wheel drive

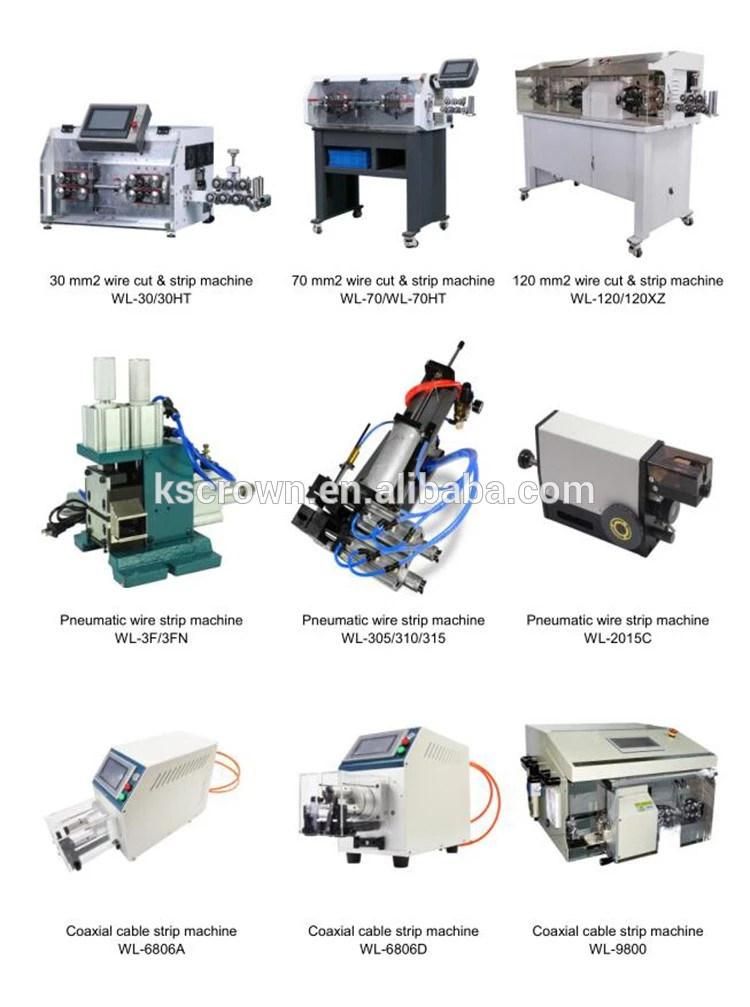

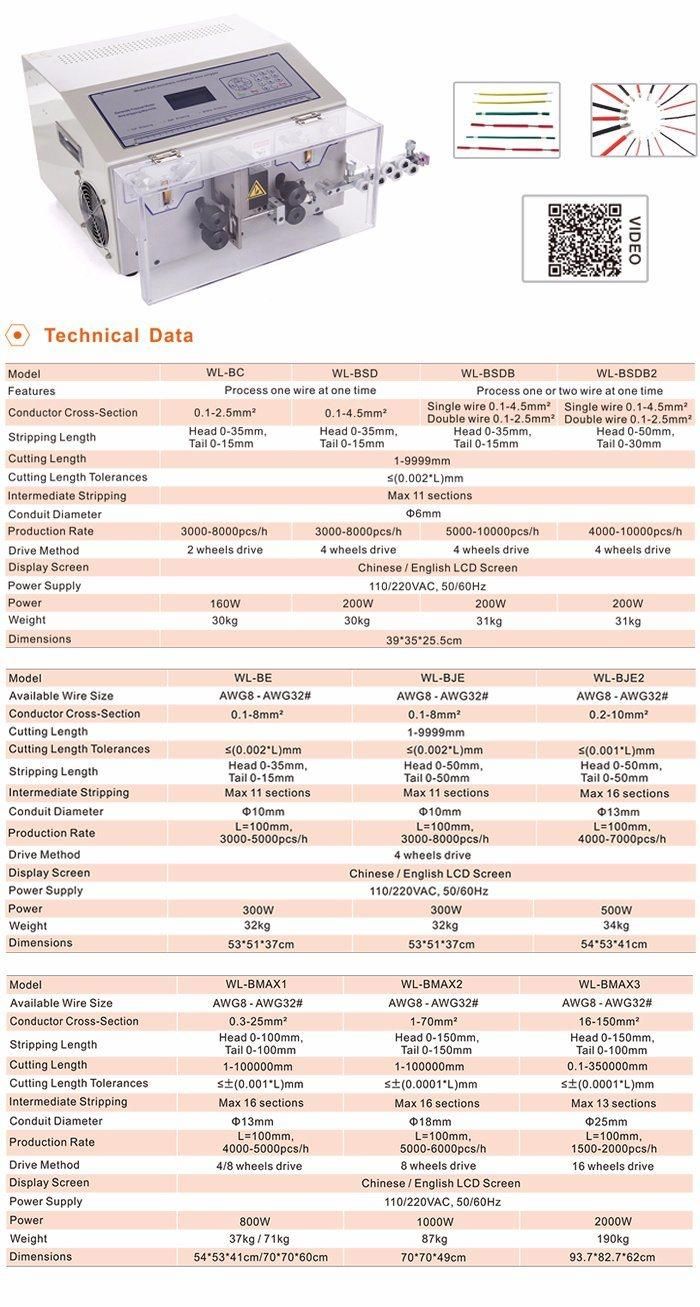

Other Model
If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden
Company info:
Our Services
1, One year guarantee for the whole machine except blade and belt.
2, 24 hours technical support on line .
3, User-friendly English software and user manual.
-Purchase guidance
If you are not sure which model is the best option within your budget, please send us your detailed requirements , it's our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don't worry, we are here to help. We provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed, such as parameter meter set-up for difficult-to process wires. Our engineers are here for your assistance.
---Others
Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance
If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
