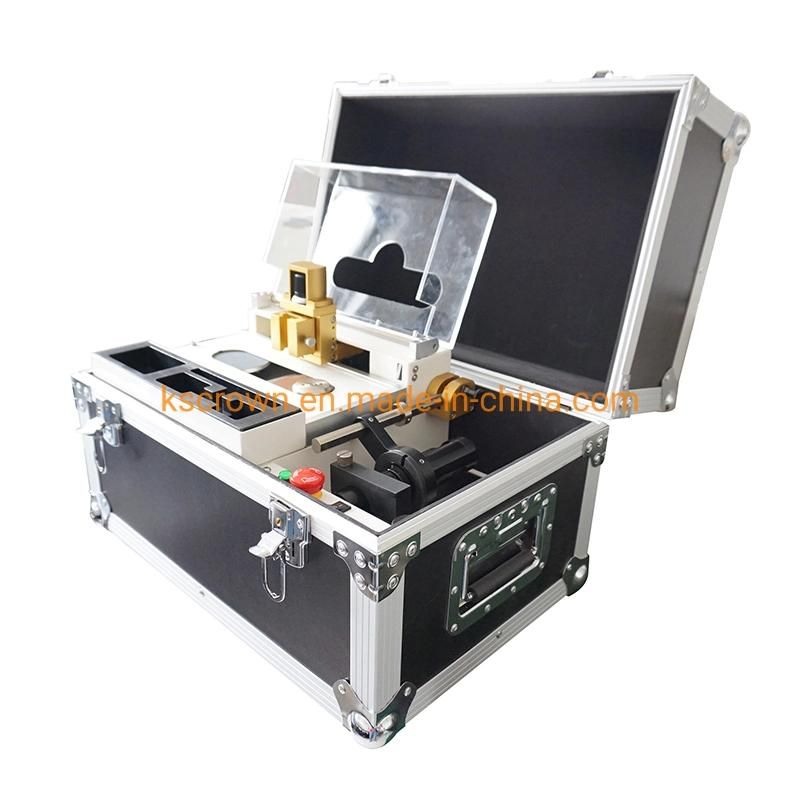

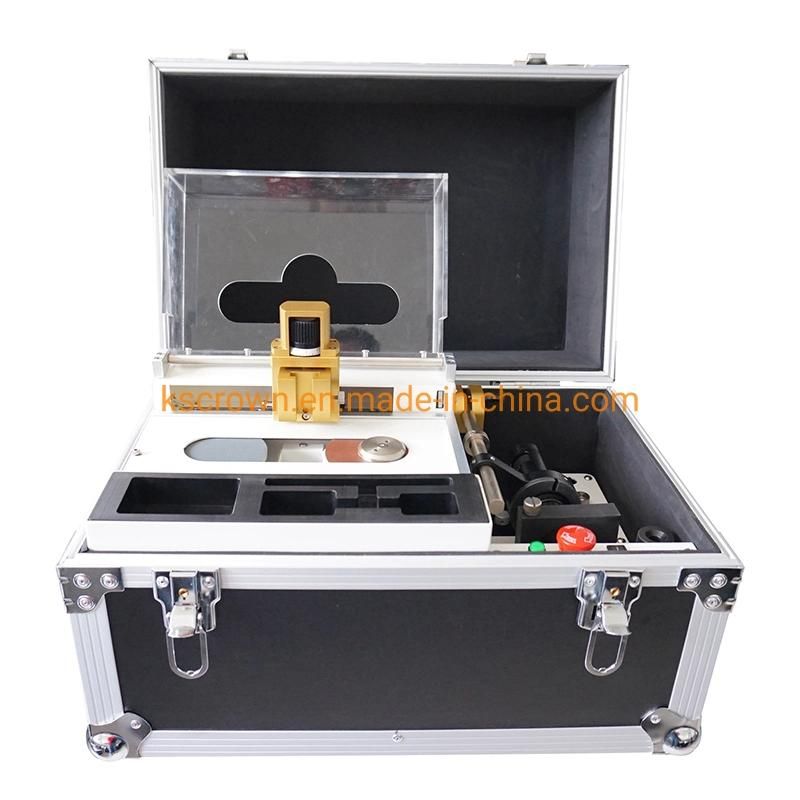

Wl-Se5 Portable Crimp Cross Sectioning Analyzer Equipment
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type：Electric
- Condition：New
Base Info
- Model NO.：WL-SE5
- Certification：RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Semiautomatic
- Control System：Adopt Japanese Mitsubishi PLC Controller - Sbl
- Module Cut Range：0.13 ~6.00 mm2
- Rotate Speed：2800 Rpm (Imported Motor From Germany)
- Cut Speed：2 mm , Sec
- Cut Wheel Inner Diameter：21.7 mm, Od:105 mm, Thickness: 0.5 mm
- Module Grind Speed：2800 Rpm (Imported Motor From Germany)
- Z-Axis Slightly Tuning Range：0.00~5.00 mm
- Special Sandpaper Od：100 mm
- X-Axis Shift：Japanese Panasonic Servo Motor
- Eclipse Partial Electrolysis：up to 6 mm2
- Electrolysis Time：5~30 Sec
- Voltage and Watt：220VAC, 50Hz, 300W
- Dimensions：490 mm (L) * 340 mm (W) *340 mm (H)
- Transport Package：Wooden Case Package
- Specification：103*63*71cm
- Trademark：Dimension
- Origin：Kunshan City
- HS Code：8479811000
- Production Capacity：10000
- Package size per unit product：50.00cm * 35.00cm * 35.00cm
- Gross weight per unit product：40.000kg
Description
490 mm (L) x 340 mm (W) x 340 mm (H) 1, One year guarantee for the whole machine except blade and belt. 2, 24 hours technical support by email. 3, User-friendly English software and user manual. -Purchase guidance If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you. ---After Sale Service Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us! --- Technical Support for difficult-to process wires. Crown engineers are here for your assistance. ---Others Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers. Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidan
