• Model NO.：Jaguar F12
• Number of Heating Zones：up 12,Bottom 12
• Length of Heating Zones：4640mm
• Number of Cooling Zones：up 2,Bottom 2
• Max PCB Size：420mm
• Conveyor：Mesh+Chain
• Start Power：48kw
• Tem Control：Pid+SSR
• Power Supply：5 Line 3 Phase 380V
• Weight：2400kg
• Transport Package：Vacuum Packaging and Polywood Packaging
• Specification：6800*1320*1490mm
• Trademark：JAGUAR
• Origin：Shenzhen, China
• HS Code：8515190000
• Production Capacity：100PCS,Mounth

Basic Info.

Model NO. Jaguar F12 Number of Heating Zones up 12/Bottom 12 Length of Heating Zones 4640mm Number of Cooling Zones up 2/Bottom 2 Max PCB Size 420mm Conveyor Mesh+Chain Start Power 48kw Tem Control Pid+SSR Power Supply 5 Line 3 Phase 380V Weight 2400kg Transport Package Vacuum Packaging and Polywood Packaging Specification 6800*1320*1490mm Trademark JAGUAR Origin Shenzhen, China HS Code 8515190000 Production Capacity 100PCS/Mounth

Product Description

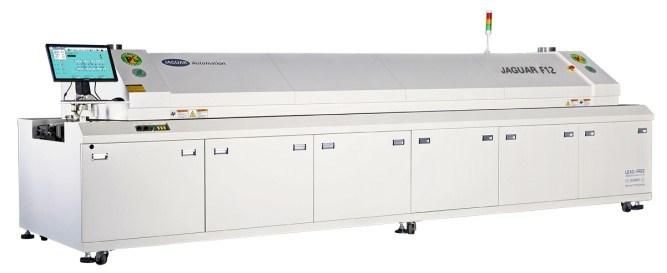

JAGUAR 12 Zones Lead Free Hot Air Reflow Oven F12

Introduction:

1. Heating zone
       1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
       1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
       1.3: 12 heating zones, 24 heating elements( up 12/ bottom 12 ) , independent temperature control and switch
       1.4: The latest design of nozzle plate, the best insulation performance

2. Control system
       2.1: Siemens PLC, table machine performance
       2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch

3. Conveyor system
       3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the
       accuracy is ±2mm/ Min

4. Cooling zone
       4.1: Axial fan forced air cooling ( Up and bottom dual cooling)

5. Protection system
       5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
       5.2: IPC+UPS
       5.3: Super positioning flexible and convenient screw width adjusting system
       5.4: IPC delay shutdown function

6. Machine parameters

Machine dimension	6200 x 1320x 1490mm
Color	Ivory
Net weight	Approx. 2450kgs
Exhaust volume	10m3/min X 2pipe
Power supply	5 wire, 3 phase, 380V 50/60HZ
Startup power consumption	48KW
Steady power consumption	10-14KW
Warming time	About 30mins
Temperature range	Room temperature-300ºC
Mesh width	500mm
Max PCB width	420mm
Component height	Up 30mm/Bottom 25mm
Conveyor direction	Left-right ( option: Right-left)
Conveyor speed	300-2000mm/min
Data storage	Process data and status storage(80GB)
Abnormal alarm	Over temp or low temp alarm, sound and light 2 modes



1. Machine configuration

Heating zone	Up 10, Bottom 10
Cooling zone	Up 2, Bottom 2
Control mode	WINDOWS 7+IPC+PLC
Temperature control mode	PID closed loop+SSR driver
Thermal couple wire	3pcs
Conveyor system	Mesh+Chain
Conveyor control mode	3 inverters+Panasonic motor
Hood lift	Electric hood lift
UPS	Standard, power off standby to protect PCB production completed
