• Model NO.：70MM,80,90
• Usage：Extruding
• Motor：Germany-Siemens
• Bearing：Japan-NSK
• Inverter：Siemens
• Electric Element：Siemens and Omron
• Control Box：PLC Siemens
• Copper Wire：Strand
• Cable：1.5mm2-2.5mm2
• Available Material：PVC, PE, XLPE
• Cores：1-4
• Transport Package：Wood Package
• Specification：CE ISO SGS
• Trademark：GEM
• Origin：Dongguan
• HS Code：8479400000
• Production Capacity：3 Sets,Month

Model:80 Consisting ComponentsPay off bobbin size:400-630 mm Pay off stand1Screw size:80mm Dancer1Motor control:30 kw inverter 80mm extruder1Screw speed:110 rpm loader & dryer1Output capacity:210 kg/hr Crosshead1Max. accumulating length200 m Moving trough1Finished cable diameter2.0---20.0 mm Main cooling trough1Max. line speed:200 m/min Water wiper1   Diameter controller1   Mark printer1   Accumulator1   Capstan1   Spark tester1   Meter counter1   Take up1   Control box1 cable Performance tableItemConductor sectionInsalution thicknessCable diameterProduction speedUnitemm2mmmmm/minkm/hr10.750.62.345027210.62.54502731.50.62.84502742.50.73.24502752 X 1.51.27.61307.863 X 2.51.29.21106.6



3. multi cores cable twist

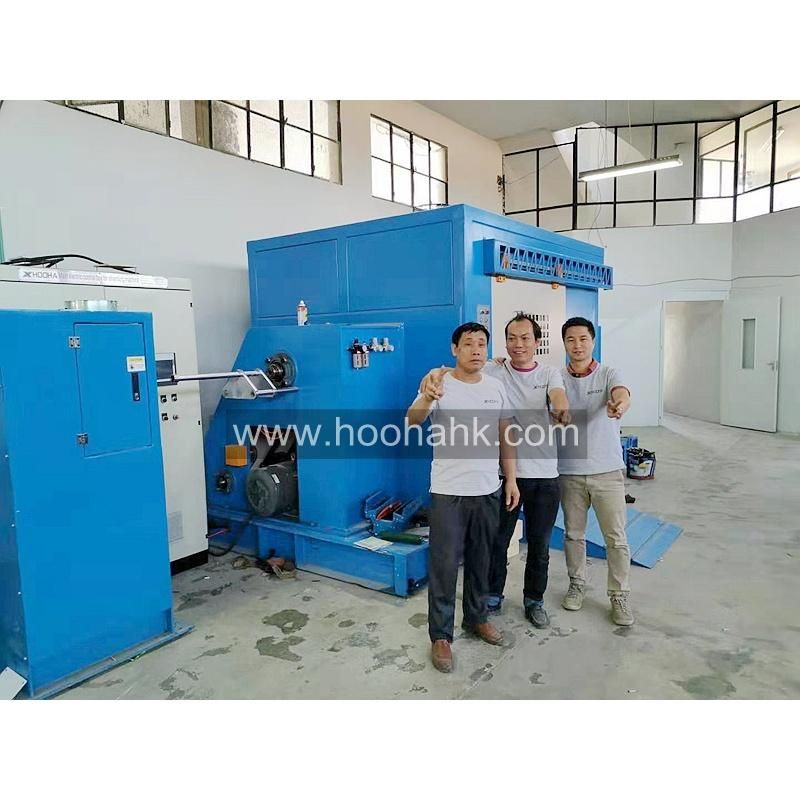

1000-1250mm Cantilever Single Multi Cable Twisting Machine
The machine uses the cantilever cable twister, with the take-up tension = pay-off tension + wire resistance, free of traction; with the motor + ball screw to drive the take-up drum to make wire arrangement; the gap is controlled by the computer. The equipment is specially featured in quick speed, less take-up tension, stable twist gap and high twisting quality.

4. Sheath

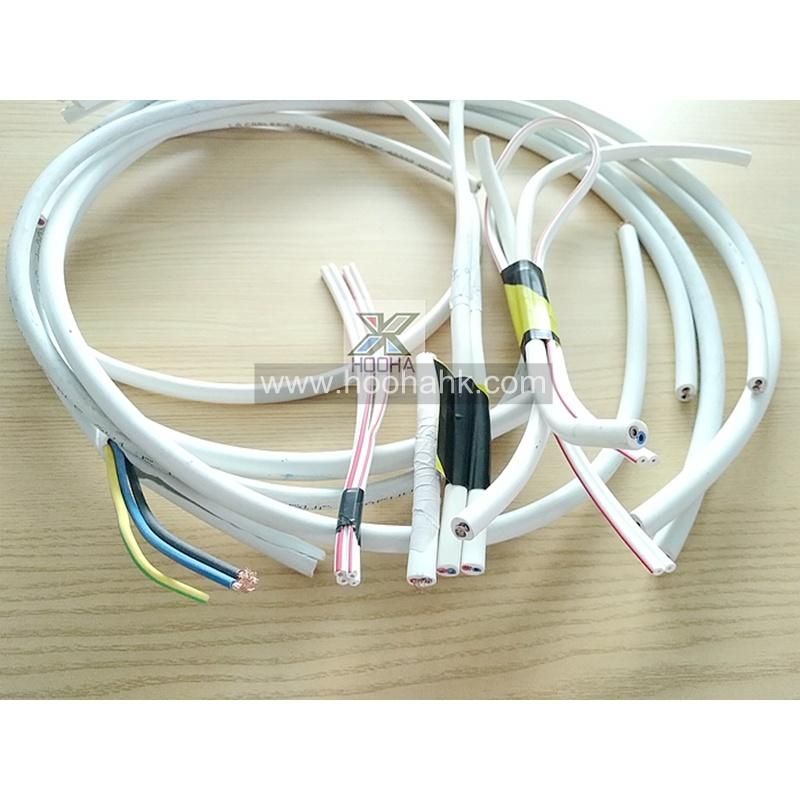

Suit for PVC ,PE plastic insulation & sheath
1. maily used in fire alam cable
2. electrical wire
3. house wire
4. data cable
5. network cable
6. building cable

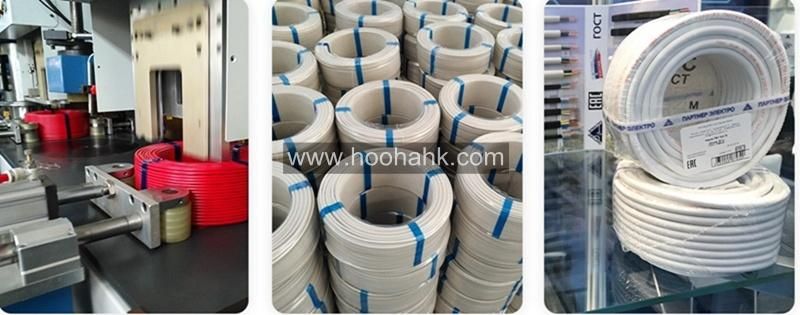

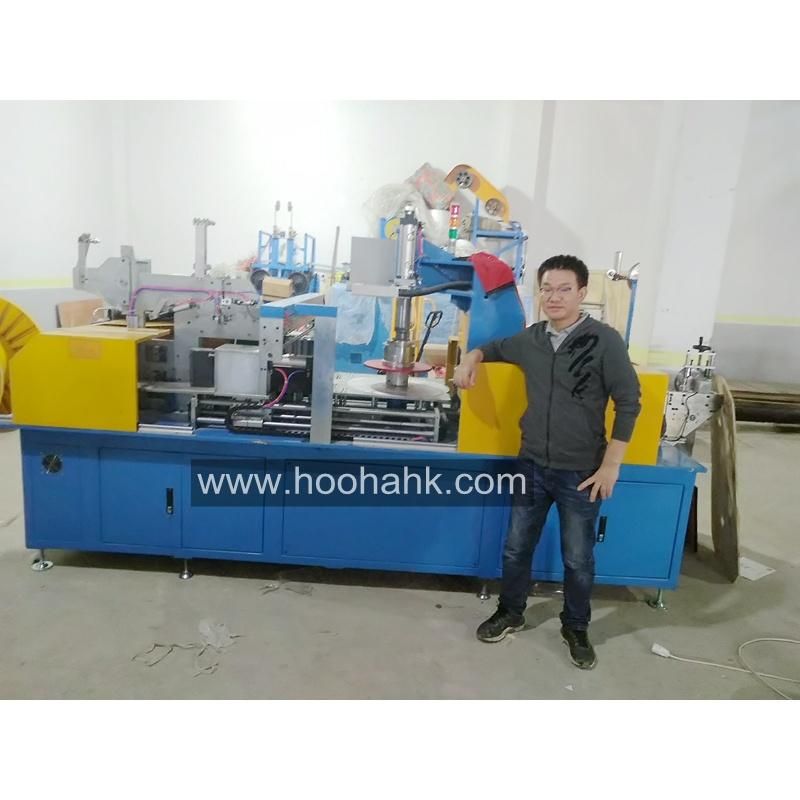

5.Automatic coiling and wrapping

Packing and wrapping all in one , work with extrusion line

Specifications

1. Direct contact the extrusion machine

2. 200m per coil and coiling speed 4 times more than manual

3. Automatic coiling and packing by label

4. Packing label capacity 7 times more than manual

5. Servo motor flat cable system, perfect packing

6. Touch screen man-machine interface operation side dish

7. 99 types of the coiling storage and can change as you like

8. Automatic warning system, easy control of the operation

Feature;

1. Power supply: AC 380 v, three-phase, 50 hz or customized

2. Operation direction:left and right side customized

3. suitable cable: 1-8mm auto and building cable

4. Coiling speed:780RPM

5. Coiling size:Outside diameter: 460mm height 50-100mm ,Inner diameter:140-220mm

Afetr service
1).Delivery dates:45 days
2).Payment:TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 10 years overseas install and cable manufacture training experience.

We focuses on wire and cable making solution:
1)The overall operation suggestions of the cable factory
2)Installation and debugging of overall machinery and accessories of the cable factory
3)Cost accounting service of overall mechanical equipment and components
4)Cost accounting service of raw materials and accessories
5)Cost accounting service of overall operation.
6)Talent delivery and training service.
7)Overseas on-site guidance and consulting services for equipment installation.
8)Maintenance,reconstruction and upgrade services of the overall equipment.


Q1:What is your main brand for the electrical and mechanical parts?

A:China famous brand and taiwan brand.

Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like

Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge

Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge

Q5:Could you do the design for the whole plant
A: Yes , we can.

Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

Q7:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.

Q8:How long the guarantee ?
A: one year and charge for repair the whole life.

Q9: Do you have a video tips for the machine running ?

A. Yes , we have,our youtube channel : tiezhong chi  / HOOHAWIREMACHINE
