• Model NO.：600, 700, 800, 1100, 1200 mm Height
• Speed Adjustment Way：Stepless Frequency Control
• Outer Dia.(mm)：800
• Coil Height(mm)：1400
• Max Coil Weight(Kg)：1000kg
• Machine Power (Kw)：5.5
• Max. Set Turns：999.9
• Round Wire(mm)：0.3- 3.5
• Flat Wire(mm)(Max)：Multistrand Max 600mm2
• Machine Weight(Kg)：2200
• Main Machine Dimension(L*W*H) (mm)：3100*1400*1400
• Demoulding：Automatic
• Condition：New
• Certification：ISO
• Automatic Grade：Automatic
• Driven Type：Electric
• Mould Life：>1,000,000 Shots
• Function：High Speed
• Installation：Mechanical Installation
• Transport Package：Standard
• Specification：3100*1400*1400
• Trademark：Senerge
• Origin：Zhejiang
• HS Code：8479811
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. 600, 700, 800, 1100, 1200 mm Height Speed Adjustment Way Stepless Frequency Control Outer Dia.(mm) 800 Coil Height(mm) 1400 Max Coil Weight(Kg) 1000kg Machine Power (Kw) 5.5 Max. Set Turns 999.9 Round Wire(mm) 0.3- 3.5 Flat Wire(mm)(Max) Multistrand Max 600mm2 Machine Weight(Kg) 2200 Main Machine Dimension(L*W*H) (mm) 3100*1400*1400 Demoulding Automatic Condition New Certification ISO Automatic Grade Automatic Driven Type Electric Mould Life >1,000,000 Shots Function High Speed Installation Mechanical Installation Transport Package Standard Specification 3100*1400*1400 Trademark Senerge Origin Zhejiang HS Code 8479811 Production Capacity 30 Sets/Month

Product Description

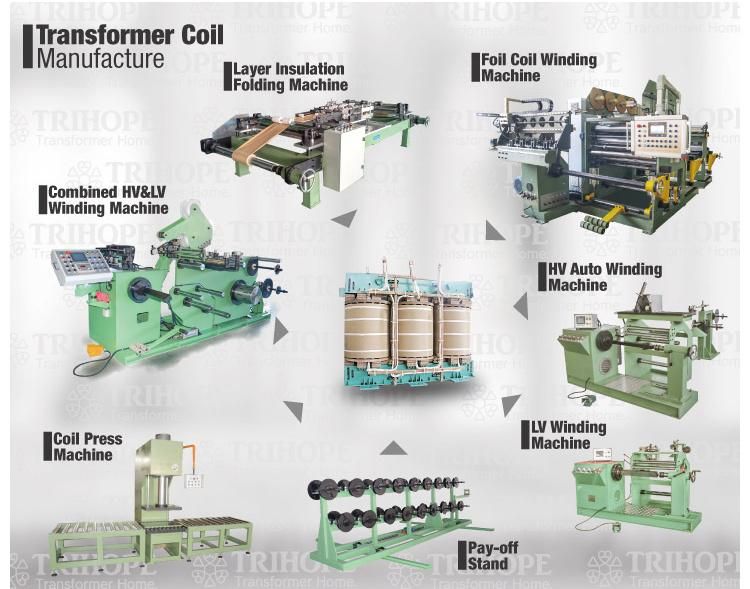

DYR-1400 LV winding machine

DYR-1400 LV Winding Machine is applicable for winding coil of all kinds of small and medium distribution transformer, CT/PT, reactor and similar process of low voltage products. It consist of winding host, Pneumatic system, decoilers and so on.

1. Main Specification
Center Height (mm)                           850
Max Center distance of spindle (mm)             1450
Spindle specification(mm)         50*90 or 40*40or 50*50or 60*60
Max working torque N.M                      2400
Winding speed (rpm)                          20
Speed adjustment way                 Stepless frequency control

Coil applicable
Outer Dia.(mm)                            ≤800
Coil height(mm)                           ≤1400
Max Coil weight(kg)                       1000kg


Machine power (kw)                          5.5
Max. set turns                               999.9
Wire Specification
Round wire(mm)                           Φ0.3-Φ3.5
Flat wire(mm)(Max)                  Multistrand Max≤600mm²

Pay-off stand
Standard supply 3 heads pay-off(include 1 head round wire, 2 flat wire) strands,But machine suitable for 4-36 head wires, customer need order multistrand pay-off separately

Counting mode
4-digital display, can set total turns and set turns with 20 sub-turns, reverse counting available, power-off  memory
Power supply                          AC 380V 50HZ
Color                                International Green
Machine weight(kg)                      2200
Main machine dimension(L*W*H) (mm)     3100*1400*1400
