Electrical Copper Core Cable Wire Winding Rewinding Extrusion Twisting Bunching Drawing Machine
Kunshan Fuchuan Electrical and Mechanical Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Pay off Type：Active Pay off
Base Info
- Model NO.：FC-630
- Motive：Motor Drive
- Pay off Bobbin Size：Dia800-1250mm Bobbin
- Style：Shaftless
- Feeding Wire Diameter：Dia3.0-15.0
- Linear Speed：Max 150m,Min
- Shaft：Shaftless
- Doule Shaft：2shafts
- Transport Package：Simply Packed
- Specification：ISO
- Trademark：FC
- Origin：China
- HS Code：8479811000
- Production Capacity：50PCS,Month
Description
Basic Info.
Model NO. FC-630 Motive Motor Drive Pay off Bobbin Size Dia800-1250mm Bobbin Style Shaftless Feeding Wire Diameter Dia3.0-15.0 Linear Speed Max 150m/Min Shaft Shaftless Doule Shaft 2shafts Transport Package Simply Packed Specification ISO Trademark FC Origin China HS Code 8479811000 Production Capacity 50PCS/MonthProduct Description

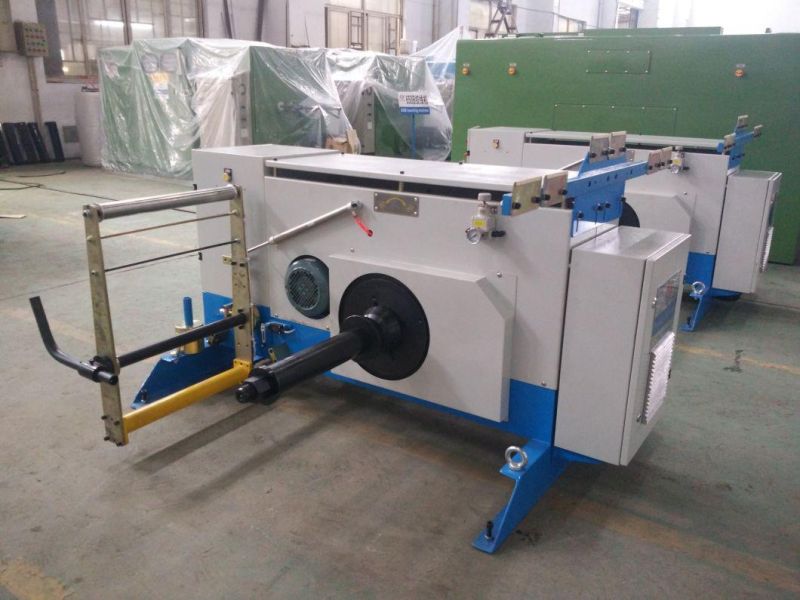

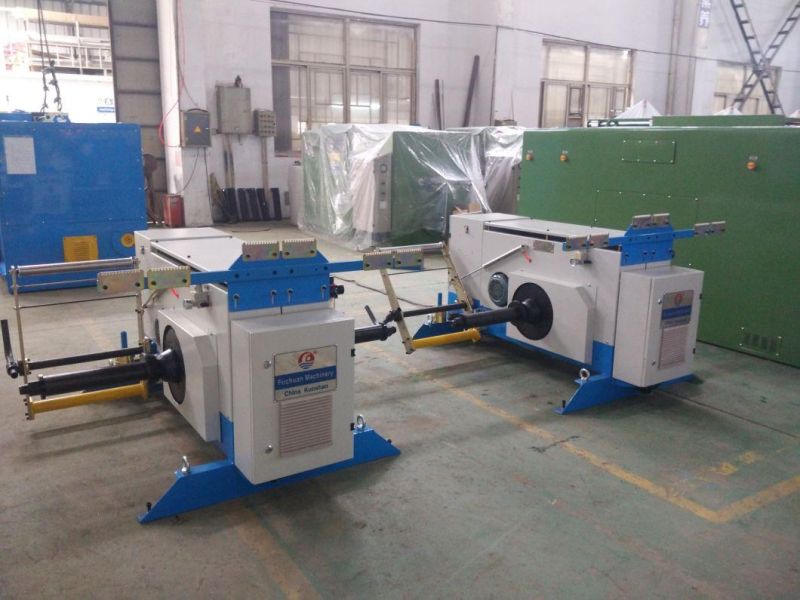

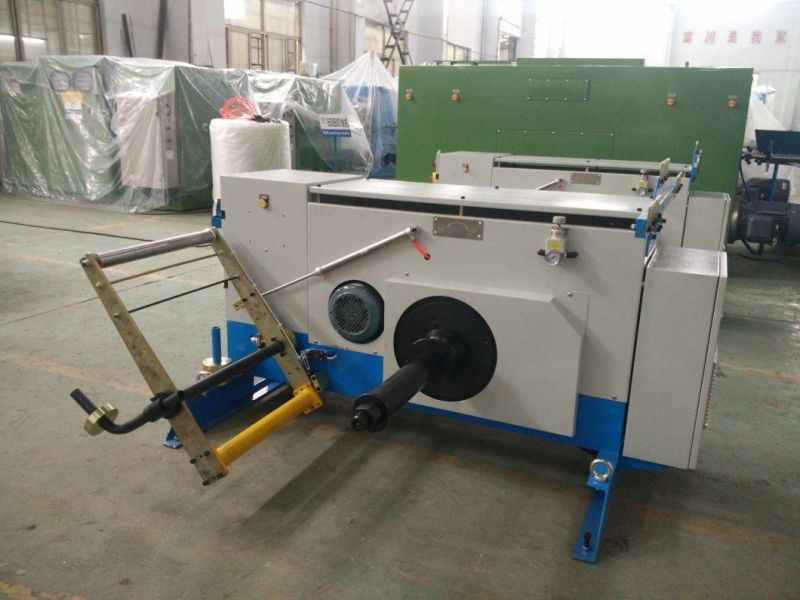

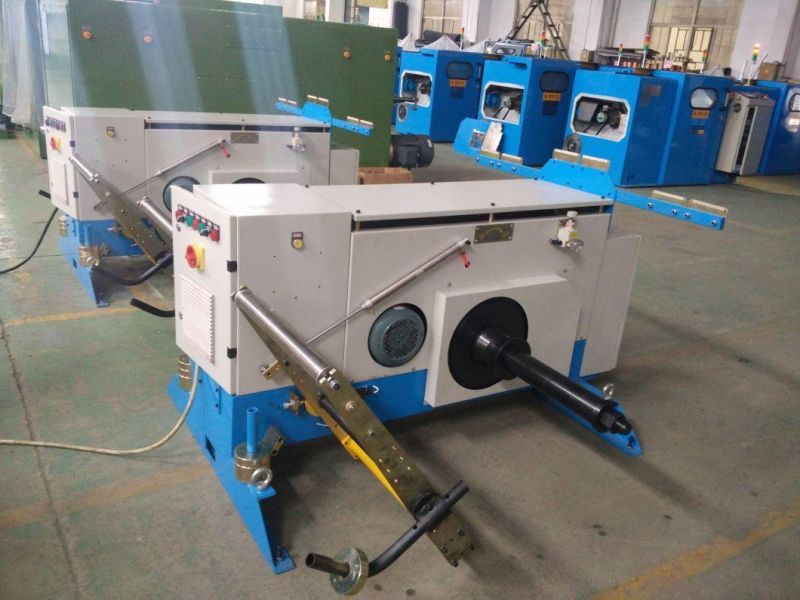

FC-1250 core wire active pay off machine
Technic parameters:
1. Style: shaftless;
2. Feeding wire diameter: Φ3~Φ15mm;
3. Feeding wire bobbin size: Φ800 and Φ1250;
4. Speed of pay off: 0-150m/min.;
5. Power: 7.5KW motor+reducing gearbox;
6. Motor for pay off: Inverter motor 5IK60A-CF;
7. Elevation ways: electrodynamic type;
8. Operation mode: optional for right(or made according to customers' requests);
9. Accessories: contactor(France)and relay(Japan);
10. Brake: 24KGF electromagnetic brake;
11. Painting: Apple green or paint according to customers' requires.
For more details, please feel free to contact me at any time!
