• Model NO.：XJ-500
• Inverter：Yaskawa
• Electrical Components：Omron, Schneider
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-500 Inverter Yaskawa Electrical Components Omron, Schneider Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

XJ-500 Horizontal Type Double-Layer Cable Taping Machine(CE/Patent Certificates)
1. Application:
Suitable for twisted wire & parallel wire single-layer or double-layer concentric taping or wrapping.
2.Machine Features:
2.1 High productivity: High working speed, production efficiency is 2.5 times than traditional taping machine;
2.2 Tension steady: Automatic tension tracking, taping tension can be constant from full bobbin to empty bobbin;
2.3 Pitch accurate: Overlap set on touch screen which controlled by PLC to keep the pitch more accurate;
2.4 Good traversing: Traversing by moving shaft, space can be adjusted according to customer's requirements.3. Technical Parameters:

Model	XJ-500
Inlet wire specification	AWG32 - AWG20
Taping materical	aluminum foil tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Rotate speed	Max. 2000rpm / Max. 20m/min
Main power	Adjust the speed by 1HP motor driver, taping drum linkage with capstan motor
Taping tension	Taping tension automatic calculation tracking and keep constant from start to end,  no need any artificial adjustment.
Melting oven	Automatic flexible melting oven, OMRON temperature control, temperature tolerance:±1°C
Take -up tension	Take-up tension keep constant from start to end, no need any artificial adjustment.
Traversing type	Axis-row type take-up, no damage during the traversing process, traversing pitch and width can be adjusted.
Machine dimension	4250mm × 1500mm × 1900mm
Machine weight	2.5 T

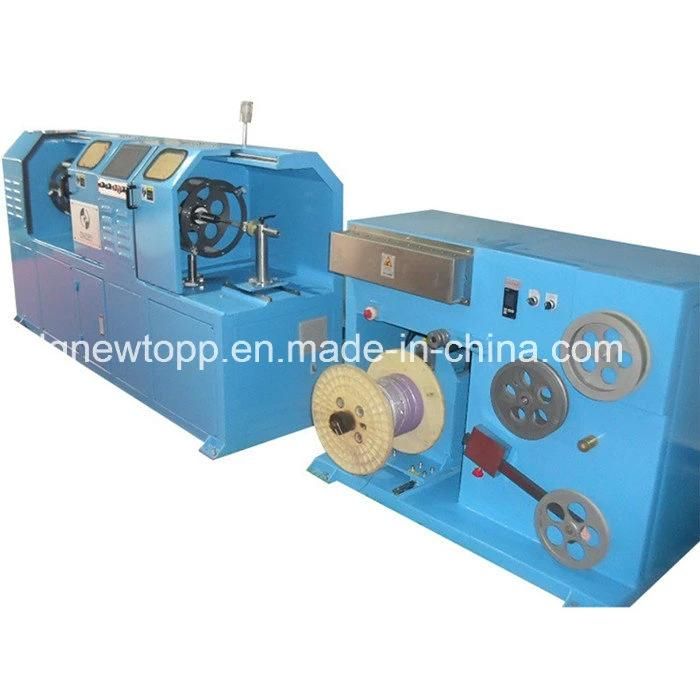

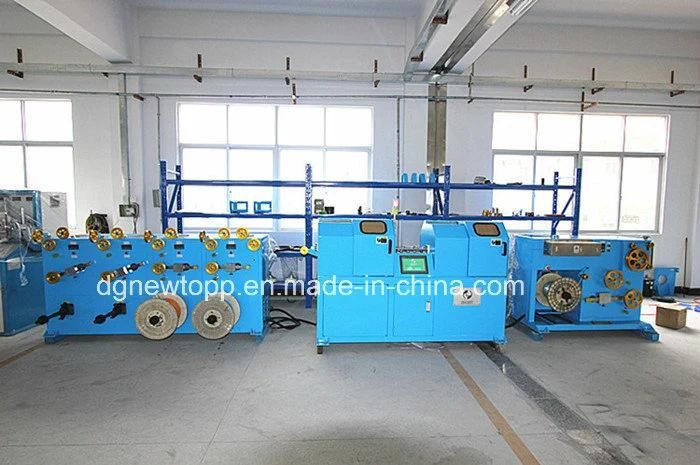

4. Machine Pictures:




5. Brand of main parts:1) Motor: Siemens
2) Driver: Yaskawa or inovance
3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Omron
6.Packaging & Shipping

7. Honors:

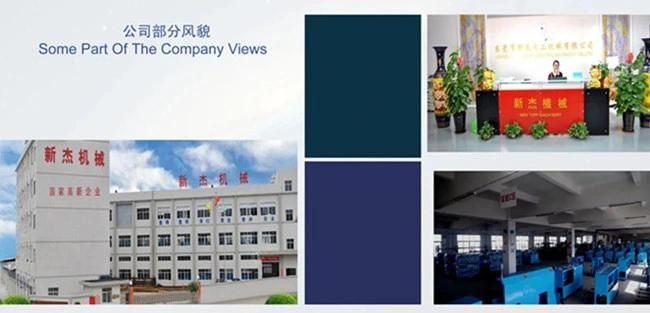

7. About us:
Dongguang Newtop electrical machinery is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products include all kind of extension production line, single twisting machine, double twisting machine, cantilever binding machine, cage type twisting machine, planar cabling machine, trip Le core binding with back twist and taping, and single layer / double layer taping machine etc. and our products have passed CE certification and SGS audited, and we also have passed ISO900 quality management system certification since 2010.

8. 9.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
10.FAQ
1) Are you a manufacturer or trading company?
   We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, there are more than 6000 spuare meters of production workshop and offices in our factory.
2) How can we get to your factory to see the machines works?
   Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
   Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
   Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
   Only 17 minutes take high-speed rail from Guangzhou south station to Humen.
11. Contact information:
     Contact: Mr.David Hou (Sales Engineer)
     Mobile: 0086-188 2296 5628
