Wire Stranding Rigid Frame Conductor Stranding Machine

Hejian Bao Hong Electrical Machinery Co., Ltd.
  • After-sales Service：One Year Warranty
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Mould Life：>1,000,000 Shots
  • Type：High-speed Stranding Machine
  • Material：Metal
  • Colour：as Required
  • Wire Diameter Specification：1.5-5.0mm
  • Cage Speed：64-170 Rpm
  • Stranding Pitch：84-911 mm
  • Traction Wheel Diameter：2000 mm
  • Pay-off Bobbin in Cage：Pnd 630
  • Central Pay-off Bobbin：Pn800-Pn1600
  • Take-up Bobbin：Pn1250-Pn2500
  • Central Height：1100 mm
  • Transport Package：Seaworthy Packing
  • Specification：630,1+6+12+18+24
  • Trademark：BH
  • Origin：Hejian, Hebei, China
  • HS Code：8479400000
  • Production Capacity：15 Sets,Month

Description

Specification500/12+18+24630/12+18+24710/12+18+24  Dia. of single wire(mm)Copper1.5-5.0 Aluminium1.8-5.0Production dia.(mm)45Stranding cage speed ( r/min)75-23164-17046-146Stranding pitch (mm)71-78084-91189-1163Diameter of wheel haul-off (mm)200025002500Production speed (m/min)14.3-58.513.1-53.5Take-up reelPN1250-PN2500PN1600-PN3150
3.Photo:

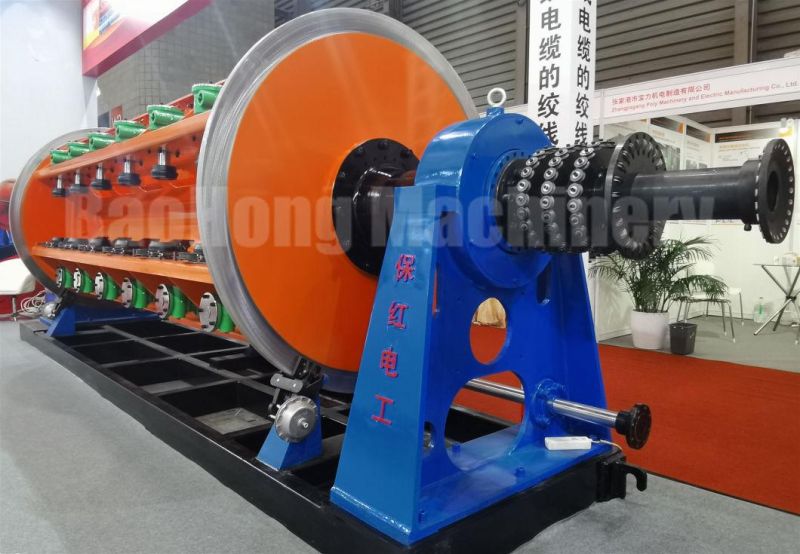

Wire Stranding Rigid Frame Conductor Stranding Machine

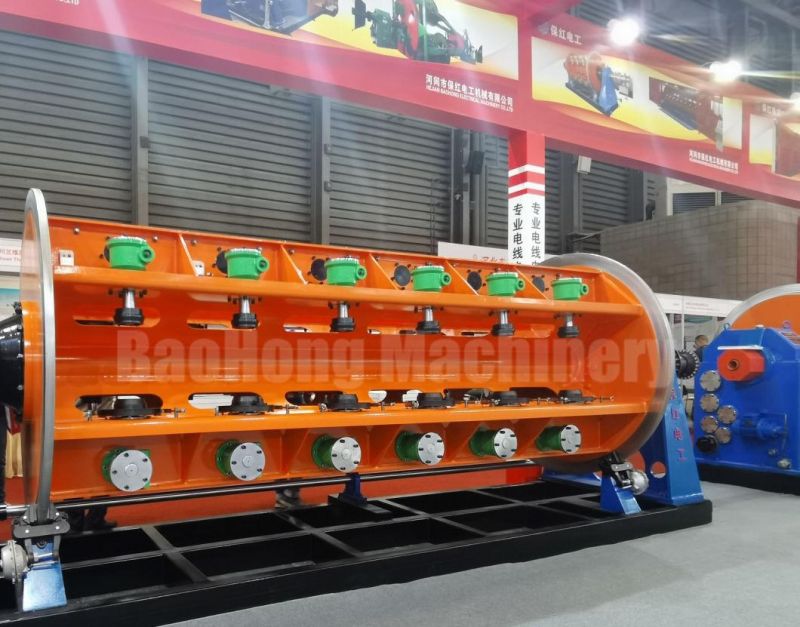

Wire Stranding Rigid Frame Conductor Stranding Machine

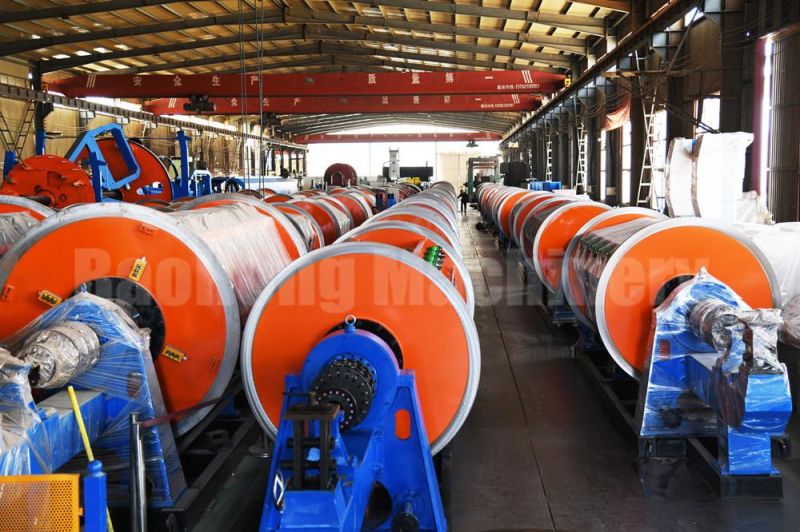

Wire Stranding Rigid Frame Conductor Stranding Machine

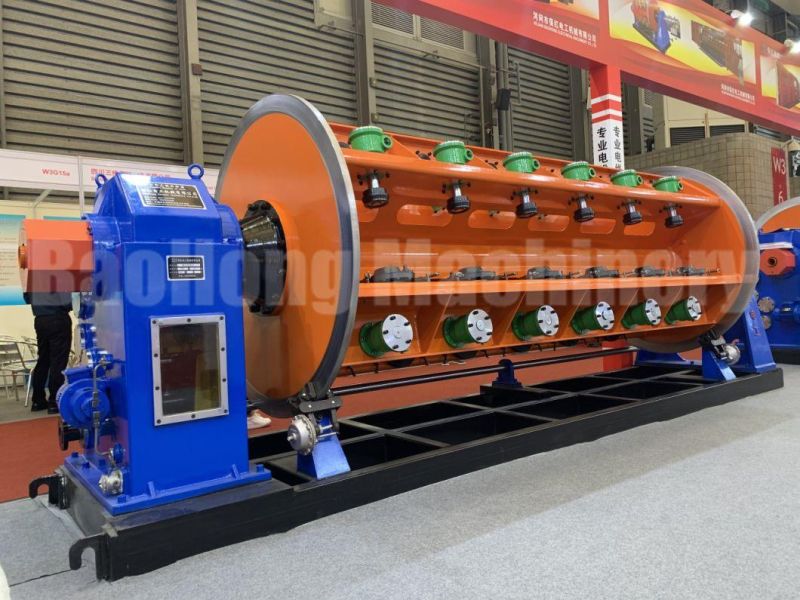

Wire Stranding Rigid Frame Conductor Stranding Machine
Wire Stranding Rigid Frame Conductor Stranding Machine
