• Model NO.：ZGG
• Installation：Vertical
• Driven Type：Electric
• Protection Level：IP68
• Numbers of Inserts：>5000
• Vibration：10-20000Hz, 15g
• Temperature Rang：-45c~ +125c
• Mechanical Shock：100g.6ms
• Salt Spray Corrosion Test：96h
• Material：Cooper Alloy
• Series：K Series
• Pins：Multipins
• Voltage：12V
• Humidity：at 60c, The Highest Humidity Can Reach 95%
• Quality：Waterproof
• Pin：Multipin
• Brand：Qm
• Color：White
• Transport Package：Standard Box as Required
• Specification：0K 1K 2K 3K
• Trademark：QM
• Origin：China
• HS Code：8536700000
• Production Capacity：5000000PCE,Year

Product Description

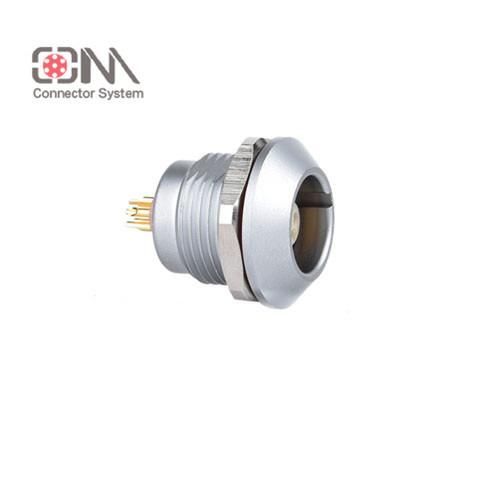

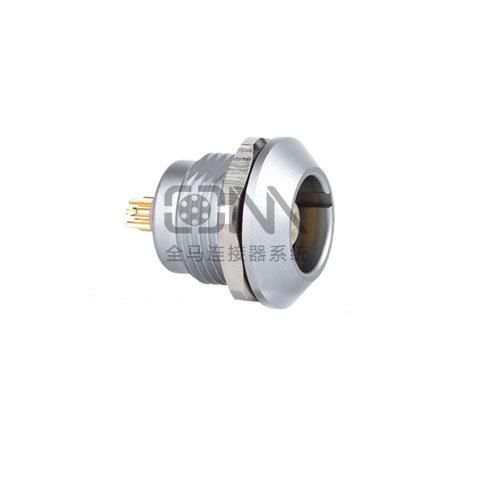

ZGG socket

socket,connector,waterproof

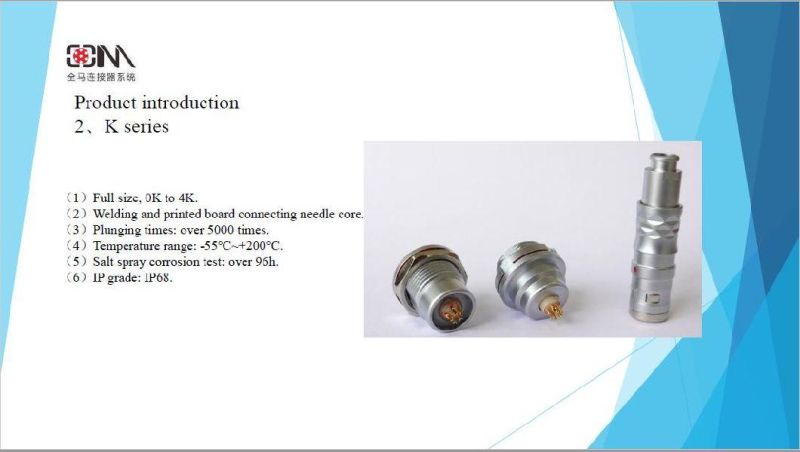

K series connectors are suitable for extremely harsh outdoor environments, protection level can up to IP68

K series connectors are specially designed for outdoor applications

All models of this series can be waterproof when plugged in, and can reach the protection level of IP68 when properly assembled with the corresponding cable.

Detailed Photos

Features

K series has the same insulator as B series, and its main features are:

  Fast push-pull self-latching system

 Rugged housing design is suitable for extremely harsh working environment

 360° shielding provides all-round EMC protection (anti-electromagnetic interference)

 Locating pin system, G is a standard locating pin, used for connector alignment

 2-40 multi-cores can be selected

 Waterproof connection (IP67/ IP68)

 Welding, crimping and PCB(Specification

Technical characteristics of K series connectors

Mechanical properties and environmental factors:

Product Parameters

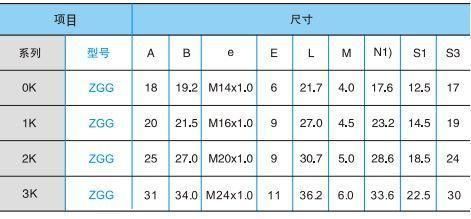

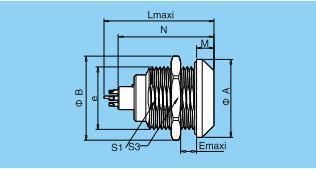

Technical parameters of ZGG socket

Catagory: Waterproof K series

Model: ZGG

Series :0K, 1K, 2K, 3K



Company Profile

QM connector is a Chinese manufacture of waterproof push pull connector. We aim to provide high quality connectors for our customers. Push pull connector is a small and convenient spare parts for your equipment. It can be used in medical device such as endoscopy, can be used in militarys use helmet and garments, base station for telecommunication, automatic machine such as dispensing machine, etc. Our waterproof self-locking connector have different series will fit your requirement in different equipment. We also provide custom made service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfiction is our motivation!

Our factory is located in Shenzhen. The pictures of our factory shows below. We have qualified staff that make sure our customer's order will be delivered in time. Also research and invent new product is always important for a manufacturer. We have a reliable reserach and development team that will make sure our product fit our customer's needs.

FAQ

Q1. Are you a manufacturer or trading company?

QUANMA:We are a professional manufacturer of push pull connectors our sales service
department is in Shanghai and our factory is in Shenzhen

Q2. What's the lead time after place order?
QUANMA: Normally we will deliver your order 7-12 working days after place order.

Q3. Is you connector compatible with other brand connector?

QUANMA:B series is compatible with LEMOS connector.
Q4. How many field can be used this kind of connector?QUANMA:  QUANMA connector now widely used in the fields of measurement,medical,
audio-video,militarys,navigation,security,aviation,industrial control,automo-tive and power etc.

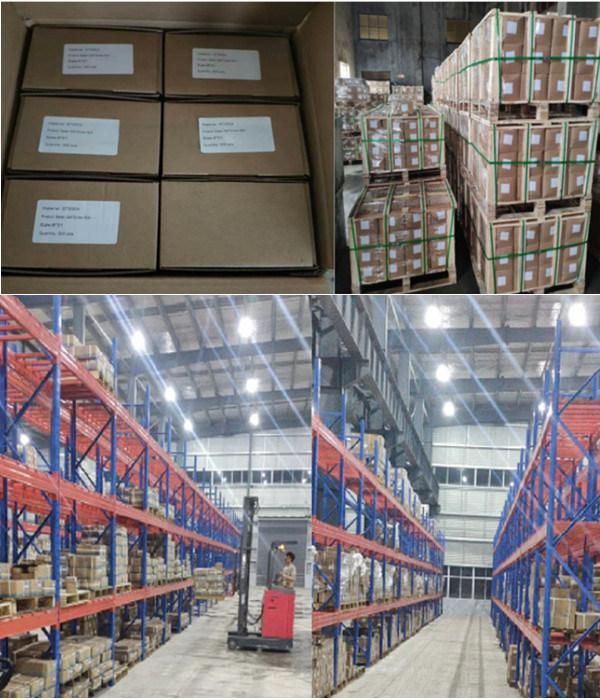

Q5: How's our order spacked and delivered ?QUANMA:
Our connector will pack and ship to you safely. We will pack it as you required. Check our package and warehouse below!
