• Model NO.：WG-9014
• Power Consumption：3kw
• Funtaion：Rotary-Cutting Blade+Cutting and Stripping Blade
• Length Range：100-20000mm
• Wire Range：0.22~5mm2
• Strip Length：0.1~18mm, Side1; 0.1~15mm,Side2
• Stripping Mode：Rotary Blade,Cutter and Stripping Blade
• Transport Package：Wooden Case
• Specification：3900*1300*2000mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-9014 Power Consumption 3kw Funtaion Rotary-Cutting Blade+Cutting and Stripping Blade Length Range 100-20000mm Wire Range 0.22~5mm2 Strip Length 0.1~18mm, Side1; 0.1~15mm,Side2 Stripping Mode Rotary Blade,Cutter and Stripping Blade Transport Package Wooden Case Specification 3900*1300*2000mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

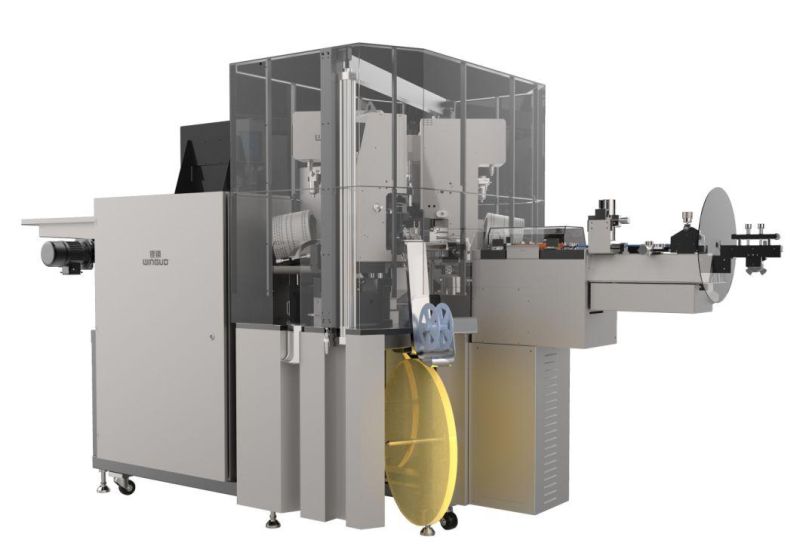

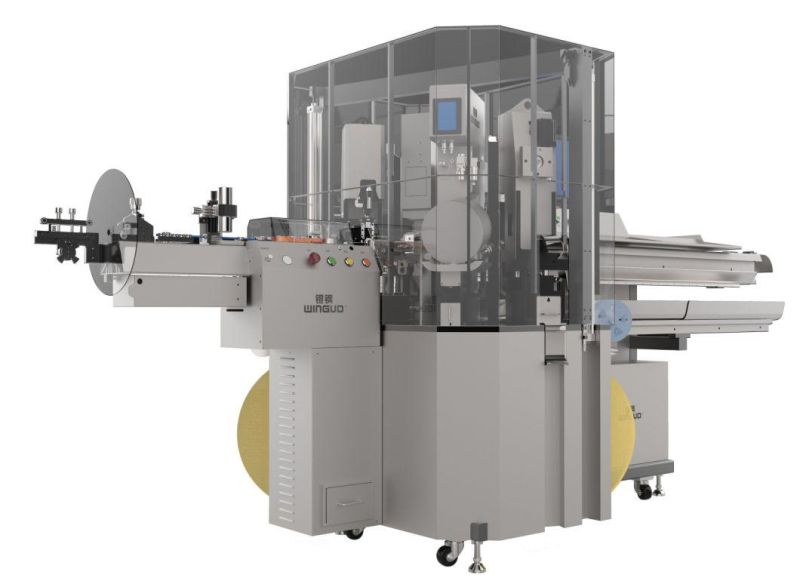

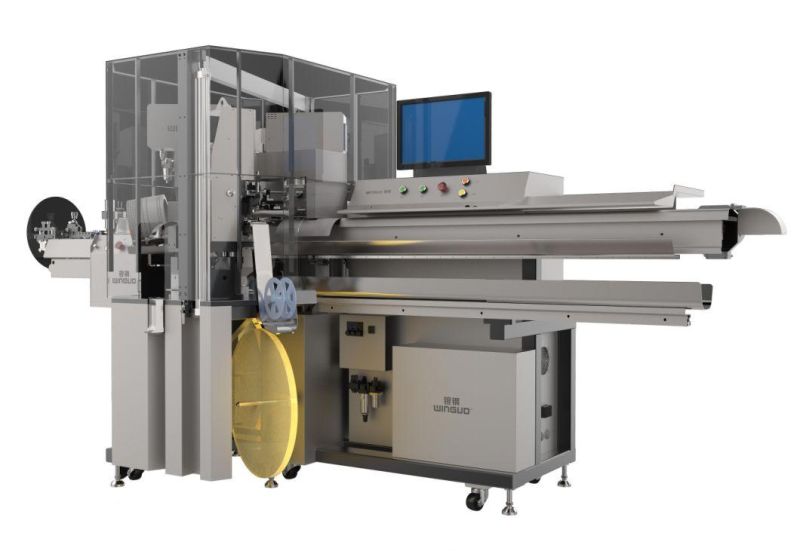

WG-9014HSD Automatic Cutting and Crimping Machine
Functional characteristics:

• Fuselage with a clean sense of industrial gray as the keynote, the overall structure is simple and generous.
• The conveyor belt with guard edge is used to prevent the wire from slipping while the belt is running off. The cutting and stripping of wire is completed synchronously, with high efficiency and time saving.
• The front and rear end are using the rotary swing arm structure for higher efficiency.
• The flexible wire feeding system not only protects the wire from damage, but also ensures the accuracy of the wire feeding length.
• The embedded pressure management device can monitor product quality in real time, and automatically alarm and cut out defective products.
• Friendly PC interface for more intuitive graphics improved the visibility and operability.

Technical parameters:

length range	100-20000mm
Length precision	L<500mm:±1mm;   L>500mm:±1mm+0.2%*L
Stripping length	0.1~18mm, side1;     0.1~15mm,side2
Wire Range	0.22~5mm2
noise level	<75dB
Air Supply	0.5~0.6MPa
Pressing power	20KN
Pressing stroke	30mm (40mm Optional)
Power supply	3*220V/50Hz/3kw
Weight	1400kg
Dimension	3900*1300*2000mm

FAQ:
---Is WINGUD only a trading company ?

No, we are professional manufacturer since 2004.



---Can WINGUD do OEM service ?

Yes, we are happy to provide OEM service to expand our market.



---About parts replacement and maintainance ?

WINGUD parts are free to change if there is worn-out within 1 year providing delivery fee paid. Technical support is available during  your   daily maintainance.



---About distributor or wholesale annual sales rebate?

WINGUD provides a very competitive rebate policy for our distributors. For more info ,   please contact us.



---Quality certificates ,market entrance ticket ?

WINGUD machine got ISO approval and will apply for more certificates in future market demands.



---What is the basic business principle of WINGUD ?

Passion and integrity. We trust work passion can provide best service and products to our customers and integrity the foundation of business.
