• Model NO.：WL-30
• Certification：RoHS
• Warranty：12 Months
• Automatic Grade：Semiautomatic
• Power Supply：220,110V, 50,60Hz
• Wire Size：6~30 Sq mm
• Core Stripping Length：Head: 1~190mm, Tail: 1~120mm
• Wire Guide Diameter：16mm
• Display Screen：16 Wheels
• Productivity：2300PCS,H
• Drive Method：16 Wheels
• Dimension：85*54*63cm
• Weight：115kg
• Transport Package：63*73*71cm
• Specification：130KG
• Trademark：Crown
• Origin：China
• HS Code：8479819000
• Production Capacity：1000set,Month
• Package size per unit product：85.00cm * 54.00cm * 63.00cm
• Gross weight per unit product：110.000kg

Basic Info.

Model NO. WL-30 Certification RoHS Warranty 12 Months Automatic Grade Semiautomatic Power Supply 220/110V, 50/60Hz Wire Size 6~30 Sq mm Core Stripping Length Head: 1~190mm, Tail: 1~120mm Wire Guide Diameter 16mm Display Screen 16 Wheels Productivity 2300PCS/H Drive Method 16 Wheels Dimension 85*54*63cm Weight 115kg Transport Package 63*73*71cm Specification 130KG Trademark Crown Origin China HS Code 8479819000 Production Capacity 1000set/Month

Packaging & Delivery

Package size per unit product 85.00cm * 54.00cm * 63.00cm Gross weight per unit product 110.000kg

Product Description

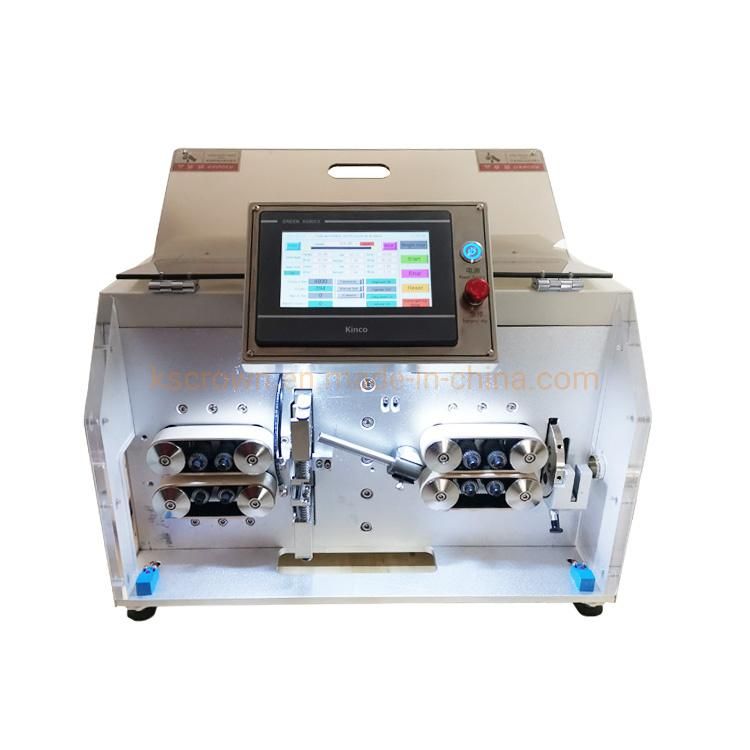

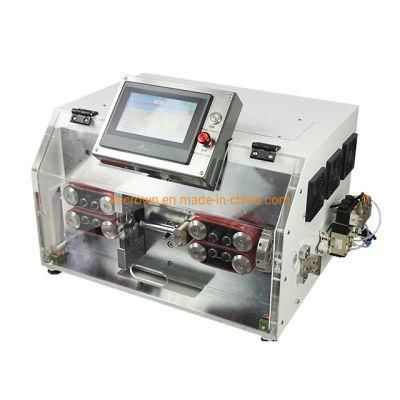

Automatic electric car cable and wire stripping cutting machine(WL-30)

Product Description:

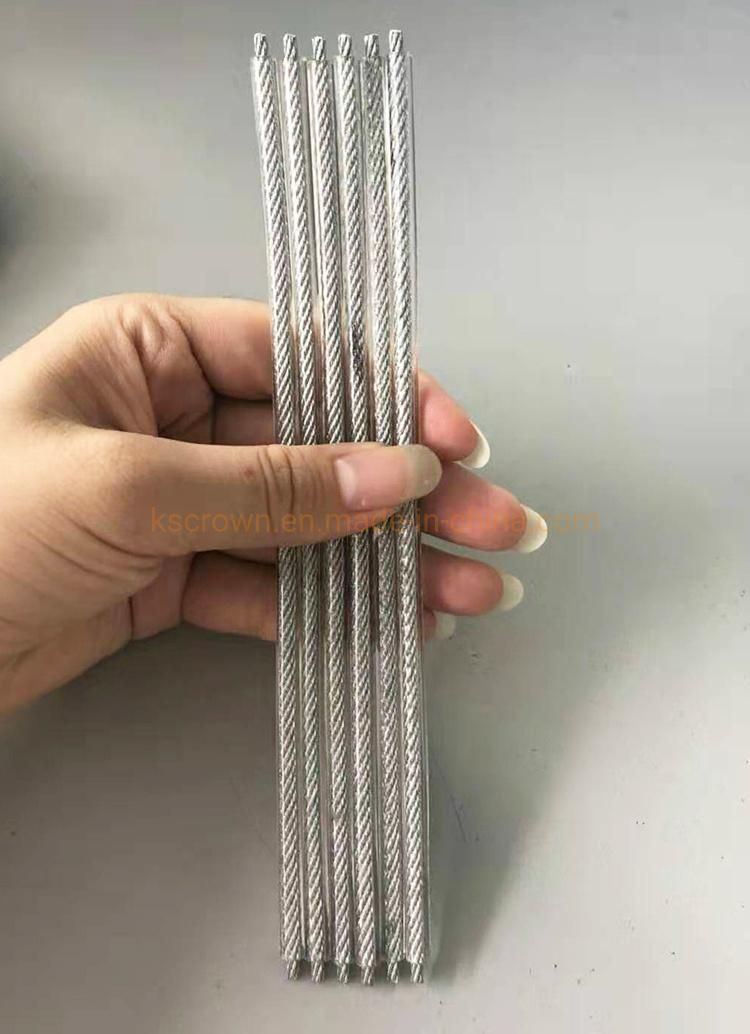

WL-30 is used for automatically cable cutting and stripping different one core wires size, and also
can cut and strip sheath cable jacket. Widely used for processing of new energy motors, charging
stations, electronic control, high-Power Supply power cable wires.

1. Belt feeding wire, no indentation on cable. It's good for Silicone wire, high temperature wire
and signal wire, etc
3. Better cutting length tolerance control, high precision
4. Stable performance, fast production rate
2. Support long stripping length, max stripping length 190mm

Specification:


Model	WL-30
Conductor Cross-Section	6-30mm²
Cutting Length	1-99999mm
Cutting Length Tolerances	≤(0.002*L) mm

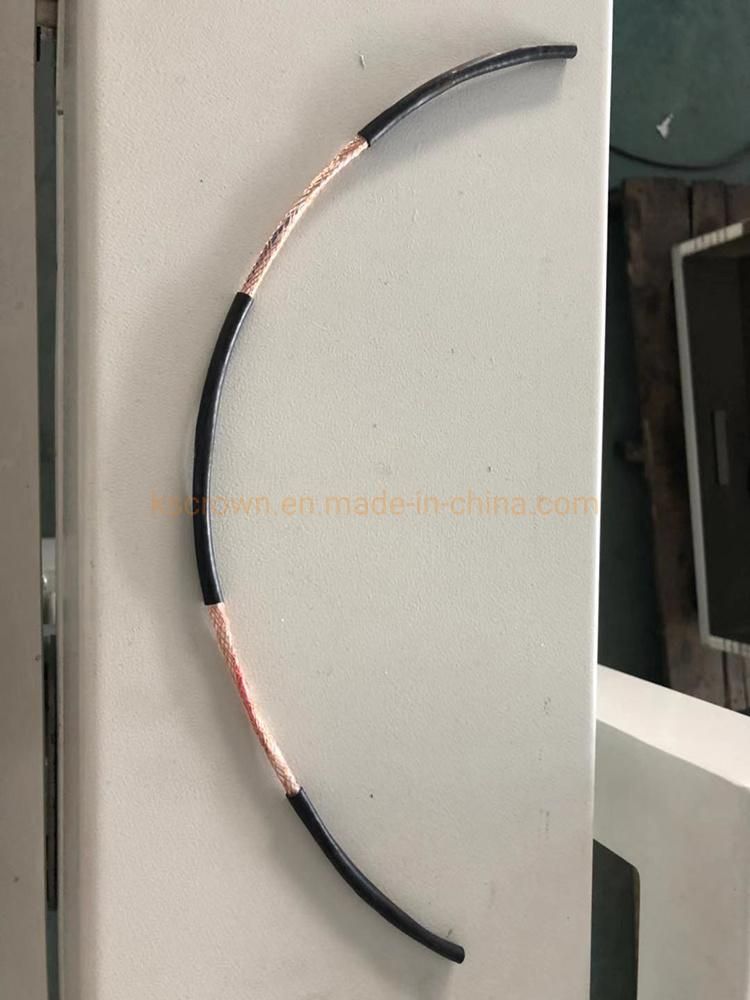

Stripping Length	Head:1~190mm; Tail: 1-120mm
Conduit Diameter	Φ16mm
Production Rate	2300pcs/h (based on wire size); Sheath wire 800pcs/h (based on wire size)

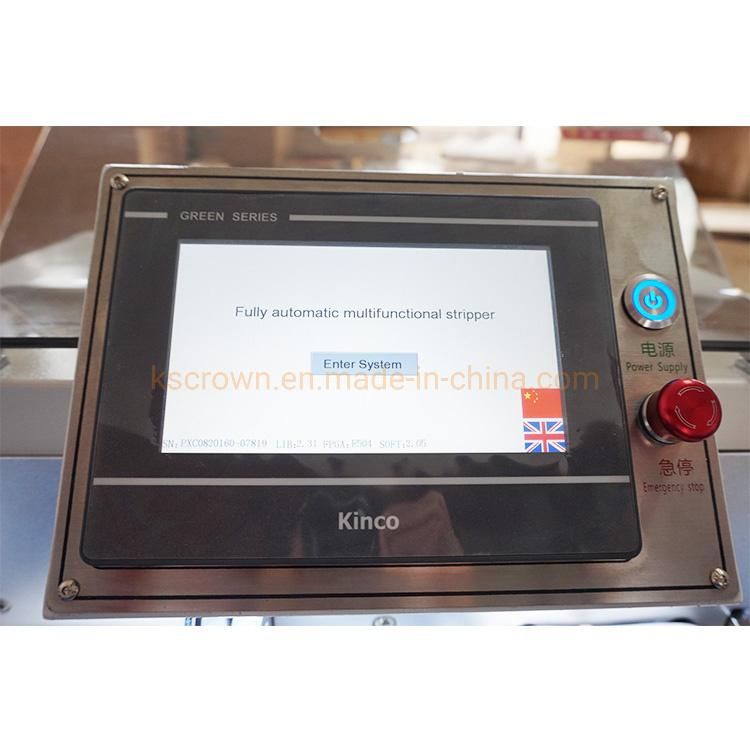

Display Screen	7-inch touch screen

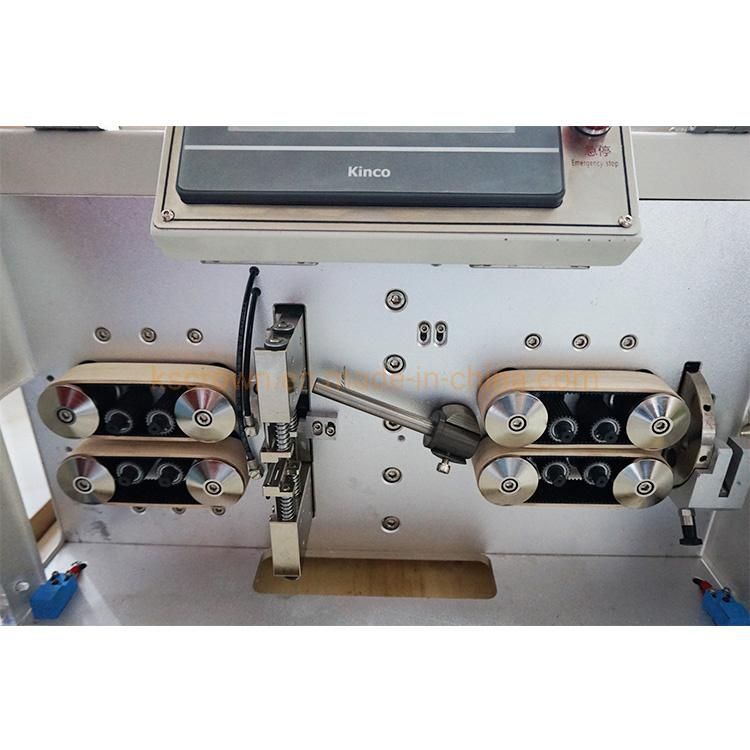

Drive Method	16 wheels drive
Wire Feed Method	Belt feeding wire, no indentation on cable
Tool Material	High quality imported high production rate steel
Weight	115kg
Dimensions	84.5*54*62.5cm

Application



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

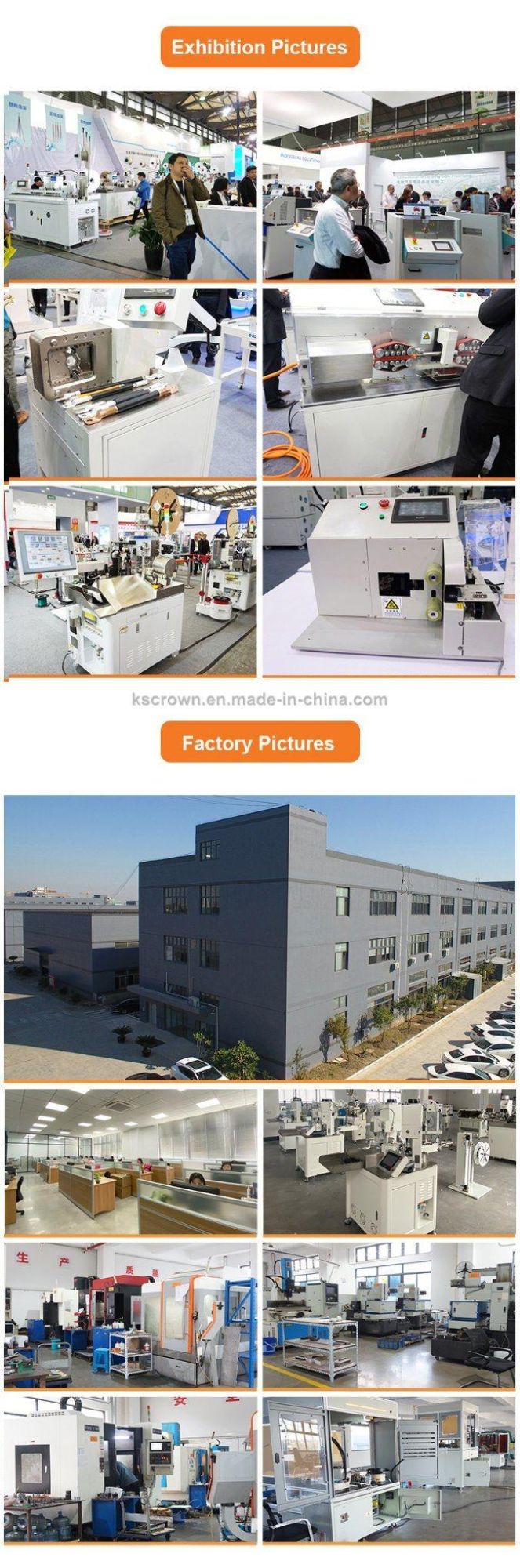

Company info:






Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.

---After-Sale Service

Don't worry, we are here to help. Crown provides lifetime after-sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.

Contact:

Pls, contact Suzhou Crown Suki liao for price inquiry or any other questions/doubts.
