• Model NO.：Alpha
• Feature：High Speed
• Application：Steel Roper, Copper, Aluminium and Welding Wires
• Color：Customized
• Transport Package：Standard Seaworthy Package
• Specification：According to customer′s
• Trademark：Alpha
• Origin：China
• HS Code：7326901900
• Production Capacity：10000 Piece,Pieces Per Month

Basic Info.

Model NO. Alpha Feature High Speed Application Steel Roper, Copper, Aluminium and Welding Wires Color Customized Transport Package Standard Seaworthy Package Specification According to customer′s Trademark Alpha Origin China HS Code 7326901900 Production Capacity 10000 Piece/Pieces Per Month

Product Description

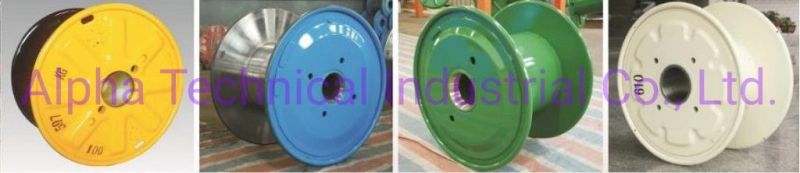

Double Layer High Speed Cable Drum/Flange, Enhanced Metal/Galvanized Reel/Spool/Bobbin For Wire Rope Cable

 Double layer high speed bobbin:


Pressed steel flanges.Dimension either according to customer's specification or GB4004-83,JB/T8997.4-1999,DIN46395/DIN46397 stanard.
Dynamically balanced for speed from 25m/s to 50m/s
For cable/ferrous and non-ferrous wire.
For drawing/stranding and bunching machines

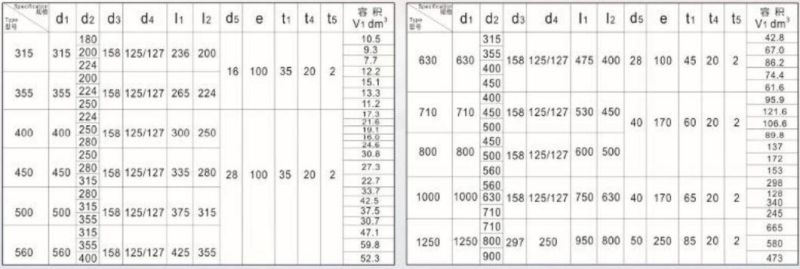

Specification

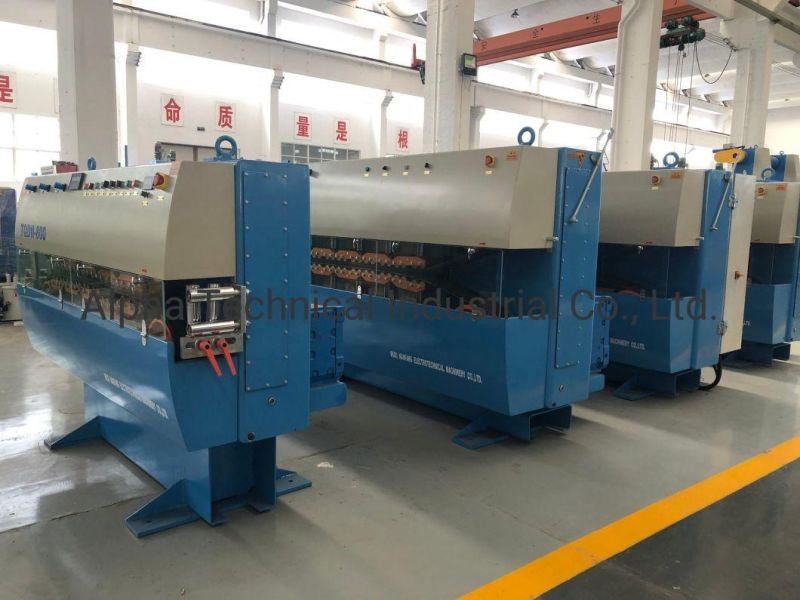

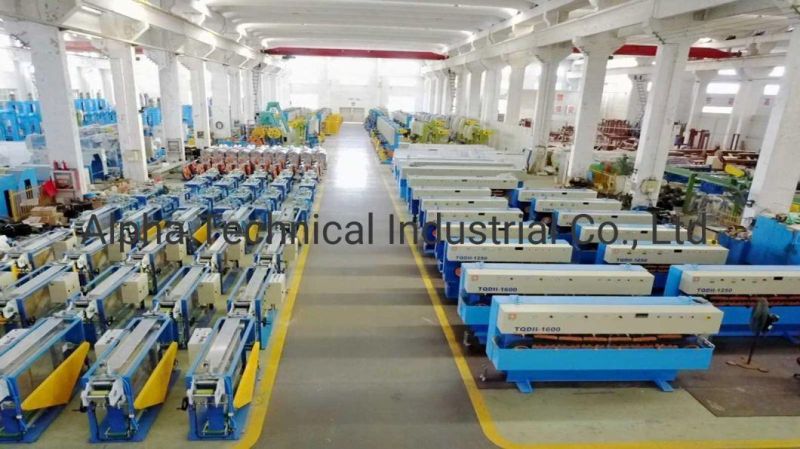

 Factory show
 Alpha Technical Industrial Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.

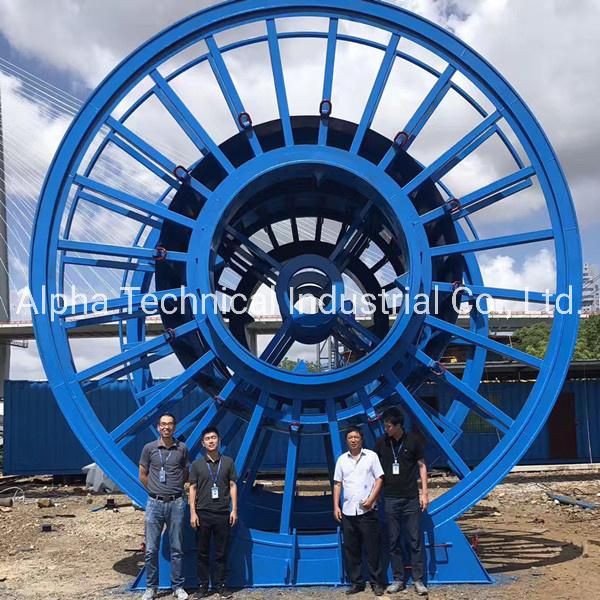

Our team


 Relevant machinery

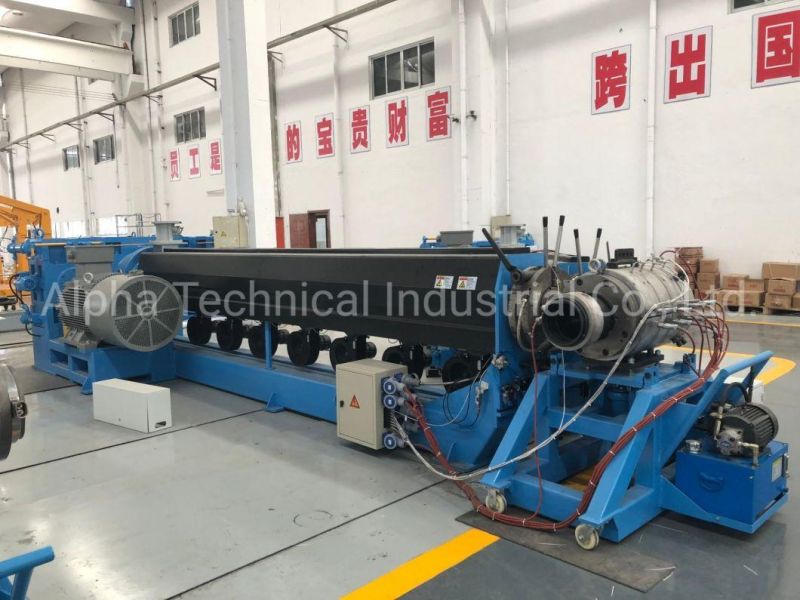

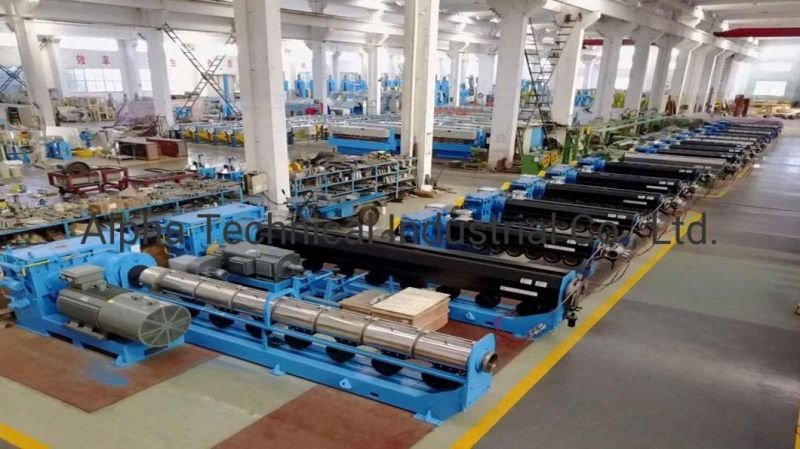

- Cable extrusion machine
A.Description
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter

Type & Size	Screw Dia. (mm)	L/D ratio	Screw speed (rpm)	Main motor (kw)	Barrel heating power (kw)	Temp. contr. zones (body/cross head)	Max. output capacity (PVC) (kg/h)
SJ30X25	20	25:1	5-150	11	3.6	3/2	20
SJ45X25	45	25:1	10-120	15	9	3/2	50
SJ65X25	65	25:1	10-100	30	16	4/4	120
SJ90X25	90	25:1	10-100	90	30	4/4	280
SJ120X25	120	25:1	7-68	132	54	6/4	580
SJ150X25	150	25:1	6-60	185	88	6/4	880
SJ200X25	200	25:1	4-40	250	140	7/4	1100

-Cable puller / caterpillar
Mainly used for various cable production lines for single machine or front and rear double traction.
Machine details

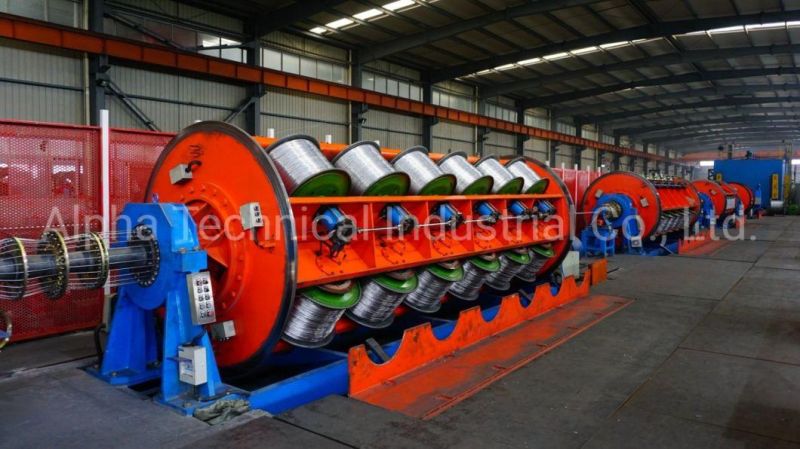

- Cable strander


                                                            FAQ

Q: Are you the manufacturer or trading company?

     A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.

− Q: What is your company's main production?

     A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Bobbin/Reels,Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

− Q: What can we offer our customers?

     A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: Why do I choose your company?
     A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

         We have an experienced team of skilled workers and engineers.

         We can support overseas training engineers.

         We can customize the design, to accept the customer's sample design.

         We can provide customers with after-sales service.

                                                                       RFQ

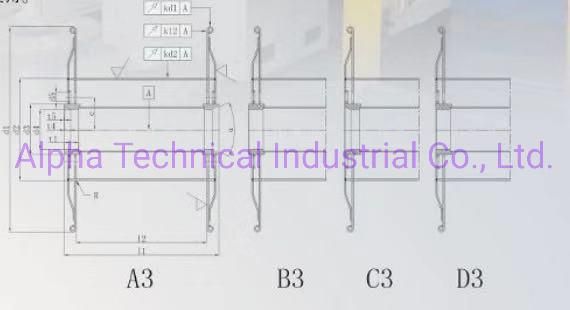

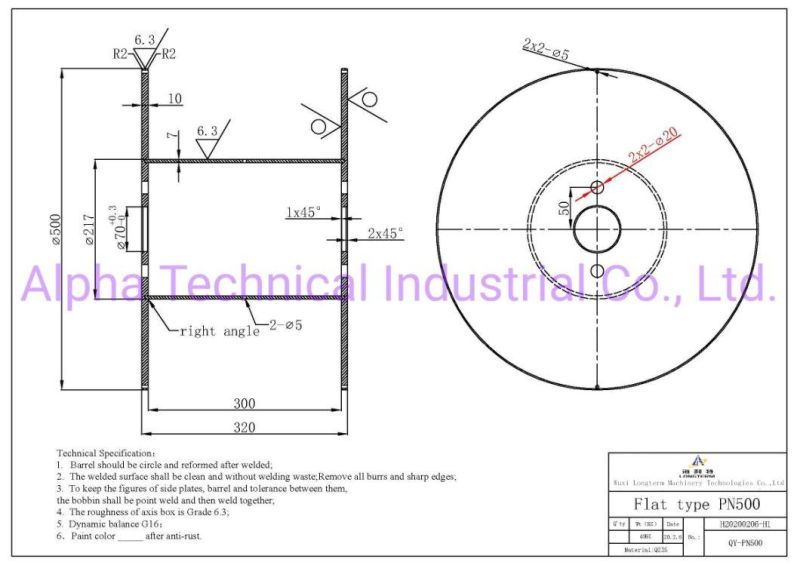

1.Bobbin/Reel Technical drawing like below picture


2.Quantity you need to purchase
