Skip Stranding/ Strander Machine / Copper Wire Twisting Machine by Independent AC Motor
Hejian Bao Hong Electrical Machinery Co., Ltd.- After-sales Service：One Year Warranty
- Driven Type：Electric
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Mould Life：>1,000,000 Shots
- Type：To Back Stranding Machine
- Usage：Skip Stranding
- Material：Copper Wire, Aluminum Wire and Steel Wire
- Maximum Strand Diameter：16
- Max Rotation Speed of The Tube：1200
- Take-up Bobbin：Pn630-Pn1600
- Stranding Pitch：49.3-372.7mm ( 36 Stage )
- Diameter of Draught Wheels：1200
- Main Motor Power：37kw
- Transport Package：Seaworthy Packing
- Specification：630,1+6
- Trademark：BH
- Origin：China
- HS Code：8479400000
- Production Capacity：100
Description
Basic Info.
Mould Life >1,000,000 Shots Type To Back Stranding Machine Usage Skip Stranding Material Copper Wire, Aluminum Wire and Steel Wire Maximum Strand Diameter 16 Max Rotation Speed of The Tube 1200 Take-up Bobbin Pn630-Pn1600 Stranding Pitch 49.3-372.7mm ( 36 Stage ) Diameter of Draught Wheels 1200 Main Motor Power 37kw Transport Package Seaworthy Packing Specification 630/1+6 Trademark BH Origin China HS Code 8479400000 Production Capacity 100Product Description
Skip Stranding/ Strander Machine / Copper Wire Twisting Machine by independent AC motor1.ApplicationThe machine is used for stranding copper wire, aluminum wire and steel wire.
2.Main technical parameter
| Name | Unit | Data |
| Single wire diameter | mm | Copper wire Φ1.5-Φ5.0 Aluminum wire Φ1.8-Φ5.0 Steel wire Φ1.8-Φ4.0 |
| The maximum strand diameter | mm | Φ16 |
| Max rotation speed of the tube | rpm | 1200 |
| Stranding pitch | mm | 49.3-372.7mm ( 36 stage ) |
| Diameter of draught wheels | mm | Φ1200×Φ1200 |
| Main motor power( AC variable frequency speed regulation ) | kw | 37 |
| The specifications of the bobbin | / | d1: 630 mm L1: 475 mm d4: 127 mm |
| Take-up bobbin | / | PN630-PN1600 |

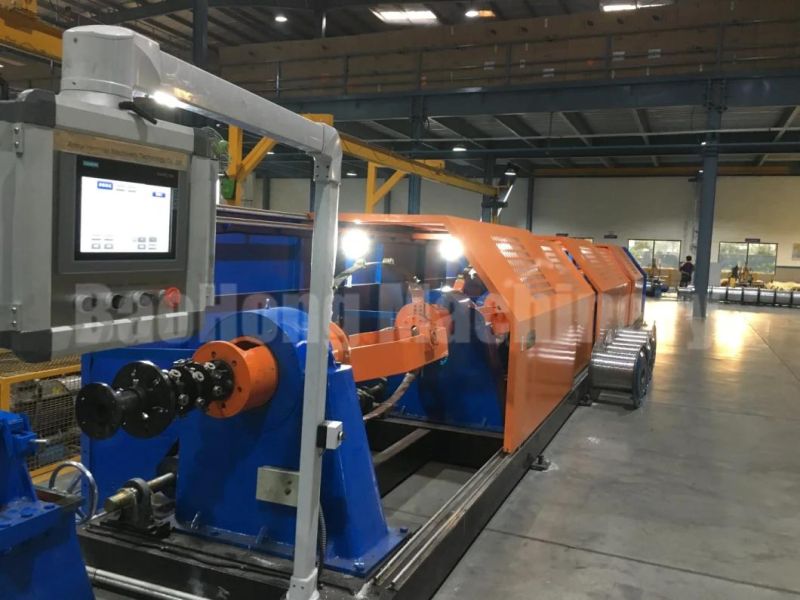

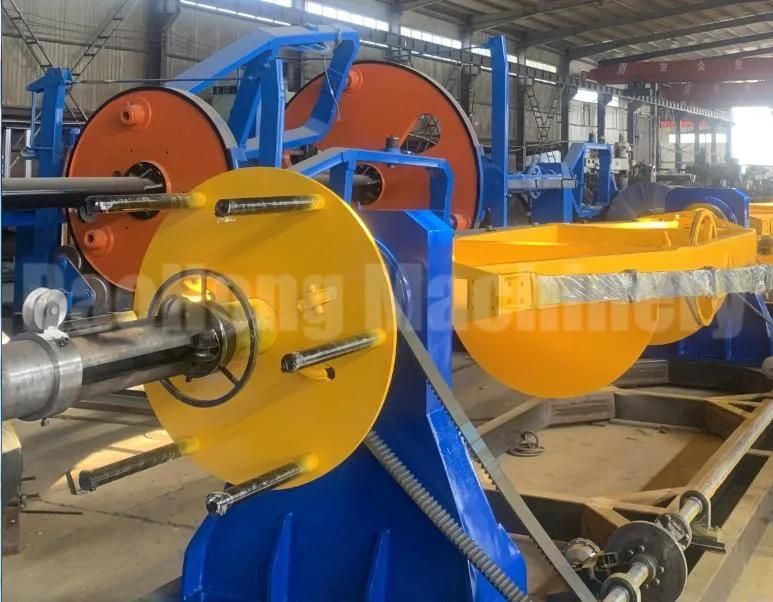

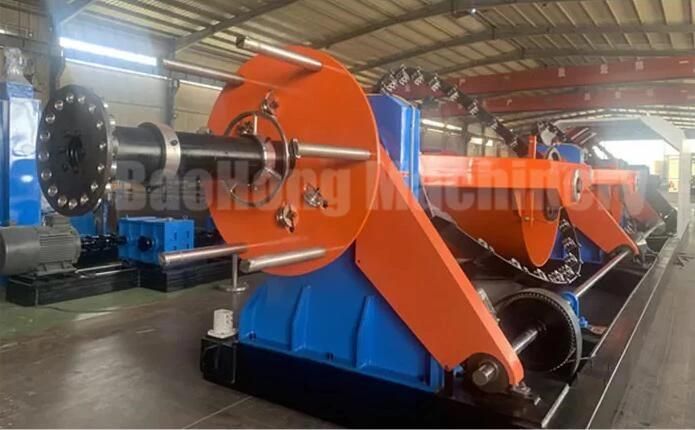

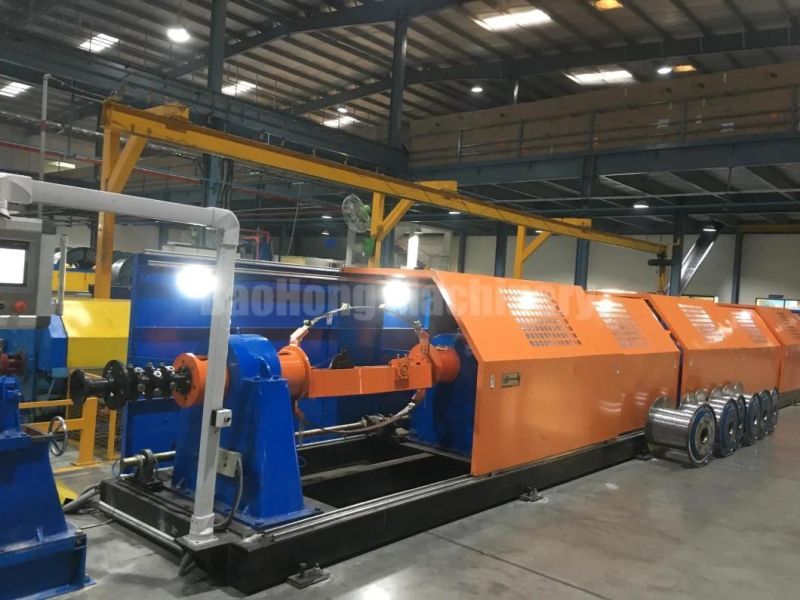

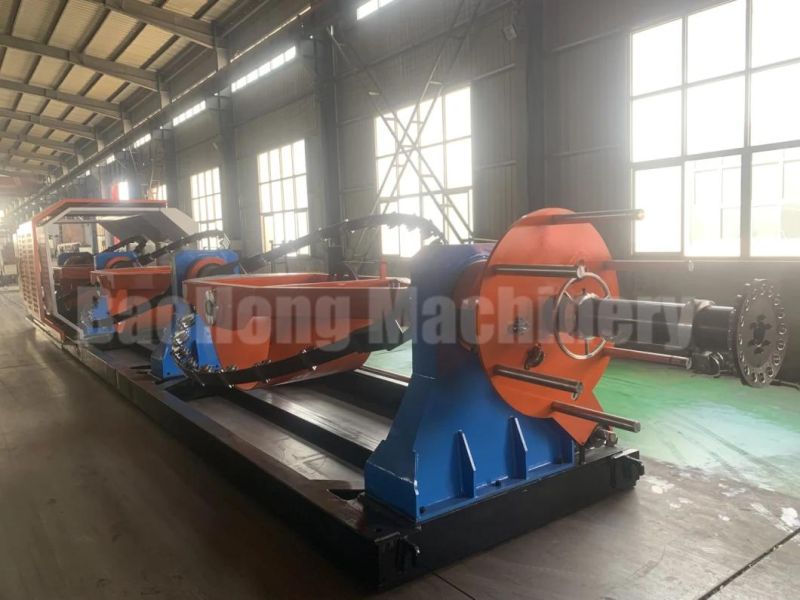

3.Product photos
