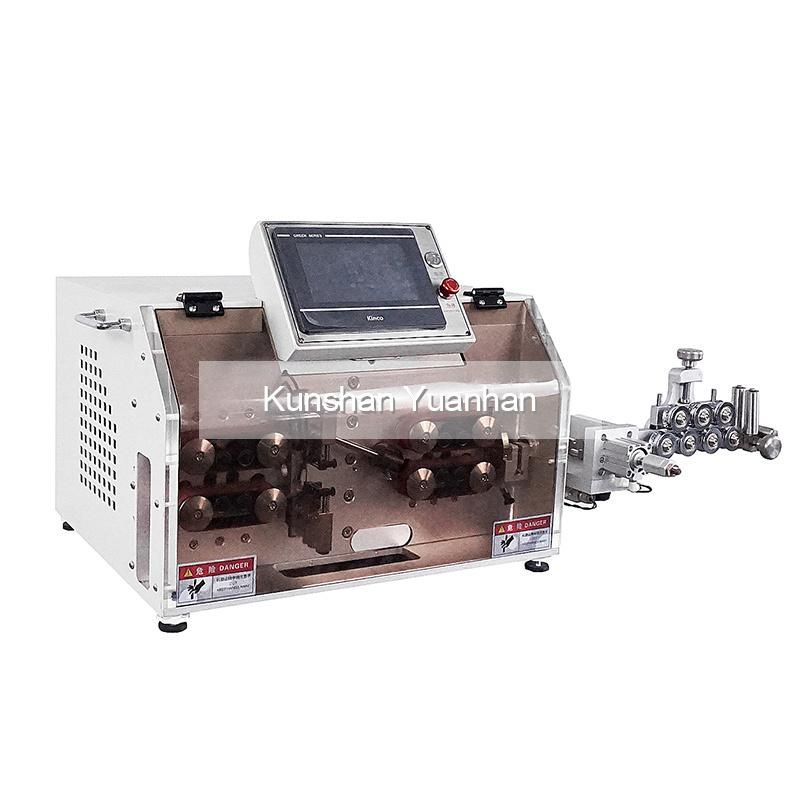

7 Cores Multi-Core Sheathed Cables Stripping Machine
Kunshan Yuanhan Electronic Equipment Co., Ltd.- After-sales Service：All Life
- Driven Type：Electric
- Condition：New
- Certification：RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：YH-8030H

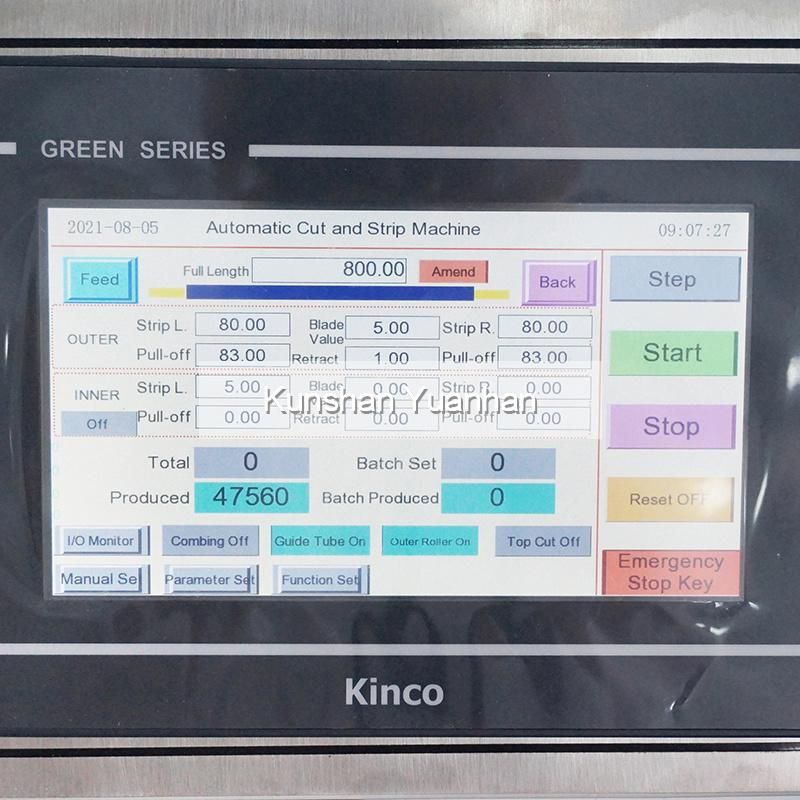

- Display：7 Inch True Color Touch Screen
- Function：Cutting and Stripping

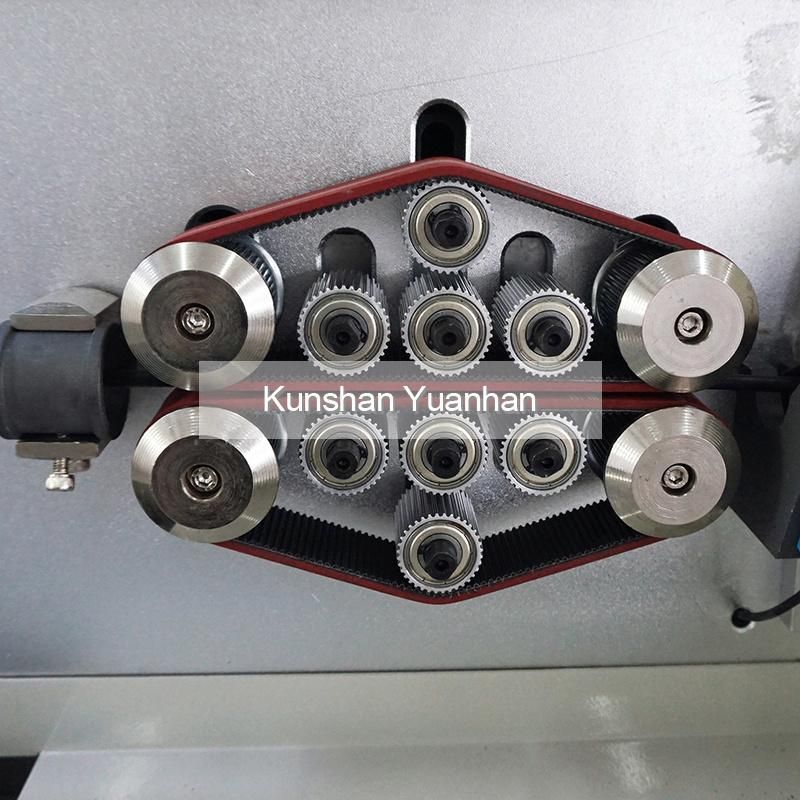

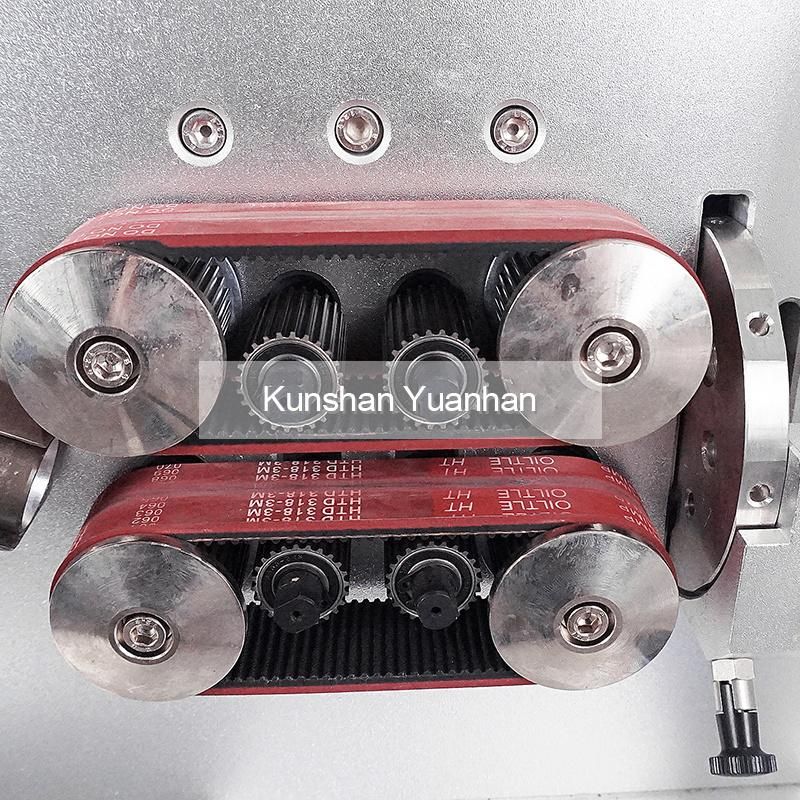

- Feeding Method：12-Wheel Belt Feeder
- Cutting Length：0.01-999999.99mm
- Wire Diameter：6-30mm2
- Core Wires：2-8 Cores
- Head Peeling：Head Peeling Max 120mm
- Tail Peeling：Tail Peeling Max 240mm
- Stripping Accuracy：0.01mm
- Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
- Capacity：2300PCS,H
- Detect Function：Wire Presence Detection
- Air Pressure：0.5-0.8MPa
- Input Power：AC220V,50Hz
- Power：1.6kw
- Transport Package：Double-Layer Export Carton
- Specification：530*530*400mm
- Trademark：yuanhan
- Origin：China
- HS Code：8479819000
- Production Capacity：L=100mm, 3000-7000PCS,H
Description
Sheathed cables, PVC cables, etc.Stripping range 6-30mm² Cutting length 1mm-99999.9mm Cutting tolerance within 0.002*L (L=cutting length) Max guiding pipe dia. Φ16 Tool material High quality imported high speed steel Capacity 2300pcs/h Remarks The machine can be customized for processing special cables, and the sample cable should be sent to us for test. Front Stripping : 1- 120mm Front stripping: 1 - 800mm (wire head) Front stripping: 1 - 800mm (wire head) Front stripping: 1-120mm (special custom peelable more than 1000mm) Front stripping:1-1000mm(head) Tail stripping: 1- 190mm Tail stripping: 1 - 260mm (end of line) Tail stripping 1 - 260mm (end of line) Tail stripping: 1- 270mm Tail stripping::1-300mm (Tial) Maximum diameter of the catheter Φ16 Φ 25 Φ30 Φ7~30mm Φ15~50mm Tool material High quality imported high speed steel High quality imported high speed steel High quality imported high speed steel High quality imported high speed steel High quality imported high speed steel Productivity (times / hour) 2300PCS/hour (depending on the length and size of the line) 1800pcs/h (depending on the length and size of the line) 1800pcs/h (depending on the length and size of the line) 100-700pcs/h (depending on the length and size of the line) 100-700pcs/h (depending on the length and size of the line power supply 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ Power 1.5KW 1.5KW 1.5KW 4KW 11.7KW Drive mode 16-wheel drive (silent hybrid stepper motor, servo tool holder) 32-wheel drive (silent hybrid stepper motor, servo tool holder) 32-wheel drive (silent hybrid stepper motor, servo tool holder) 48-wheel drive, full servo motor Wire feed: 32 wheels, each group of independent servo drive
Knife rest: double servo and double screw Wire feeding method Belt feeding line, no embossing on the cable without scratches Belt feeding line, no embossing on the cable without scratches Belt feeding line, no embossing on the cable without scratches Belt feeding line, no embossing on the cable without scratches Belt feed, no imprint or scratch on the cable Remarks Special cable can be customized, sample line test is required Special cables are customizable and sample line tests are required. If the tail end is stripped, the total length of the cut line should not be less than 150mm, and the total length of the cut line is less than 150mm. The machine can be customized. Special cable can be customized, sample line test is required sample line test is required

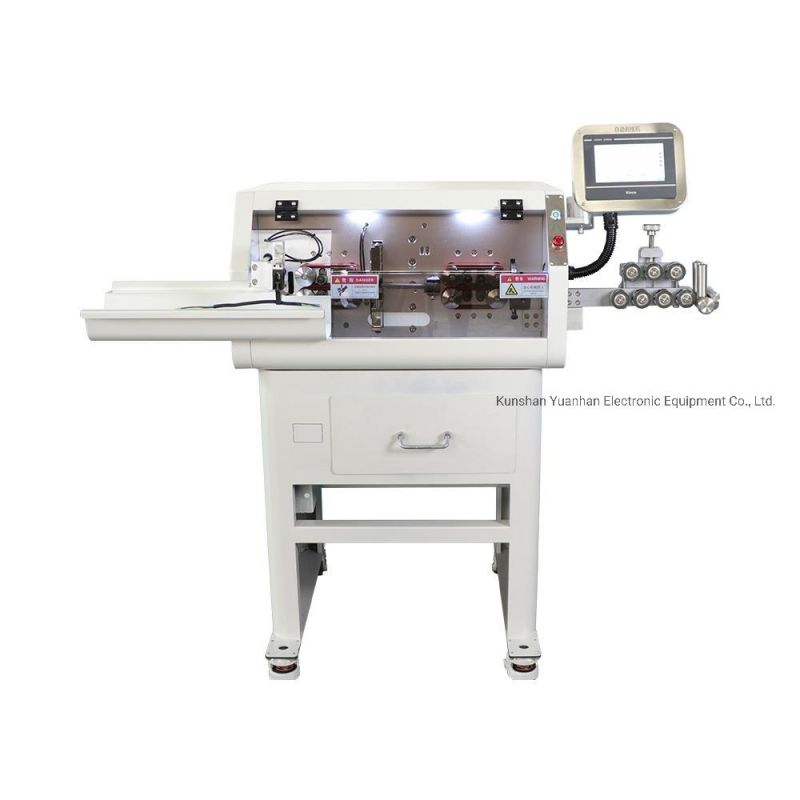

30 square sheathed wire cutting and stripping both inside and outside. All-in-one machine, with manipulator + 2 meters of wire take-up frame

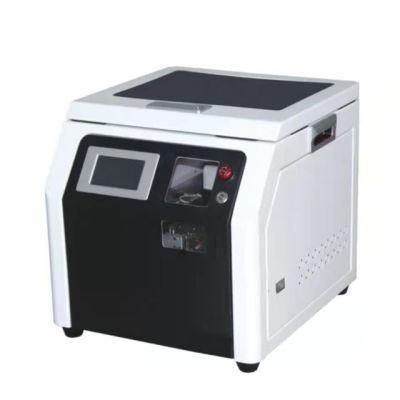

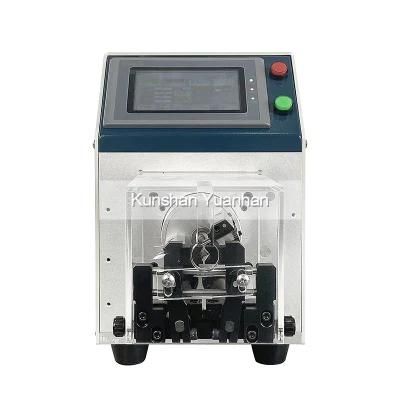

We have other sizes of wire cutting and stripping machine for your choisec!
Stripping lengthKnife rest: double servo and double screw

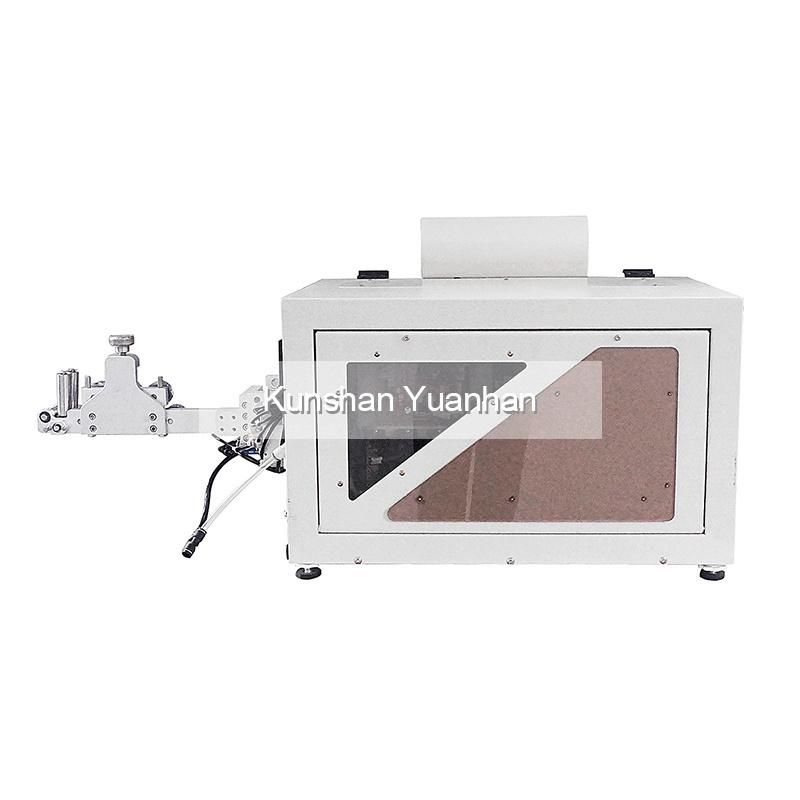

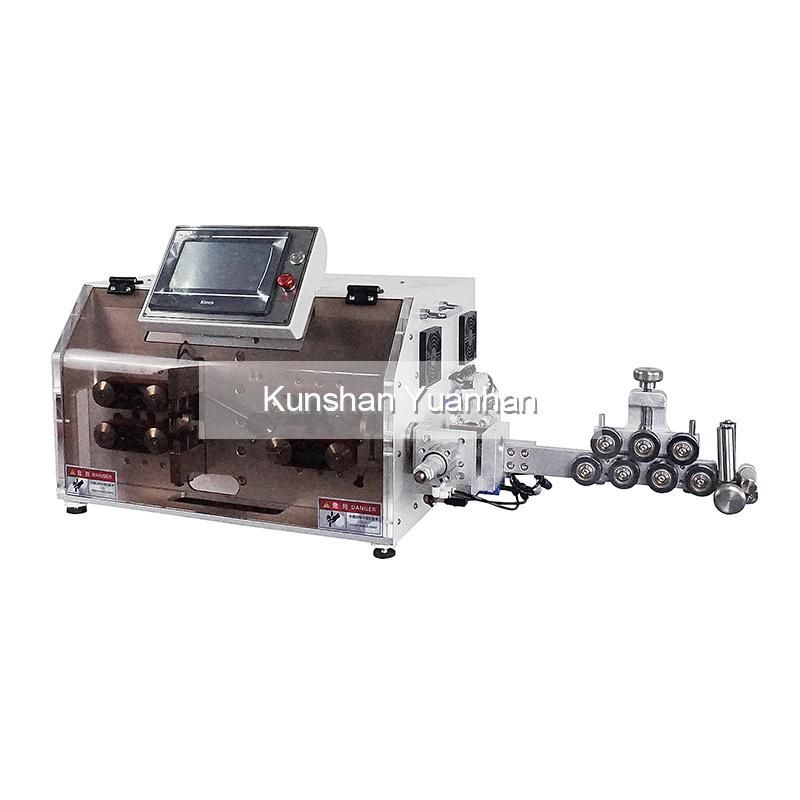

Product Pictures
30 square sheathed wire cutting and stripping both inside and outside. All-in-one machine, with manipulator + 2 meters of wire take-up frame Features:
1. Chinese and English switching display
2. The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3. Make both ends semi-stripping and twisting.
4. Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.
Processing Capabilities: Cutting to length, Full strip,
Half strip, precision cut

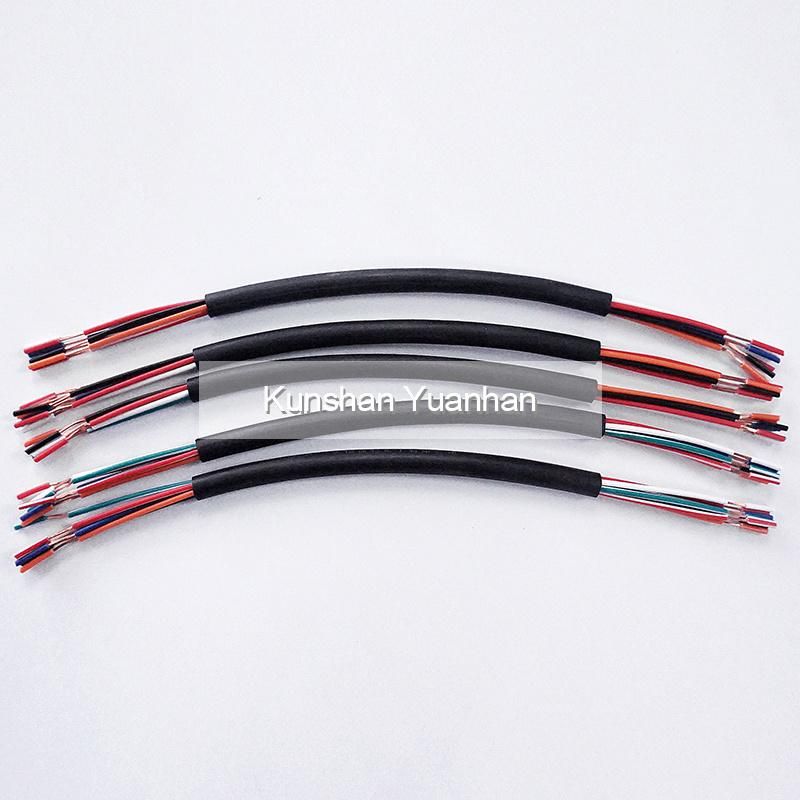

Sample: cut and strip wire automatically
Any questions, please feel free to contact us ! Thank you !
