• Model NO.：HC-20
• Power：AC220V,50Hz
• Processing Capacity：4000PCS,Hour
• Cutting Length：40mm-9999mm
• Cut off Precision：1mm+Cutting Length*2%
• Strimping Length：0.1mm-10mm
• Press Capacity：1500kg,3000kg
• Twisting Length：AWG#28--AWG#18(4mm--10mm)
• Weight：5-6.5kg
• Transport Package：Wooden Case
• Specification：L810*W1280*H1960
• Trademark：Hechang
• Origin：China
• HS Code：8479899990
• Production Capacity：80 Sets,Month

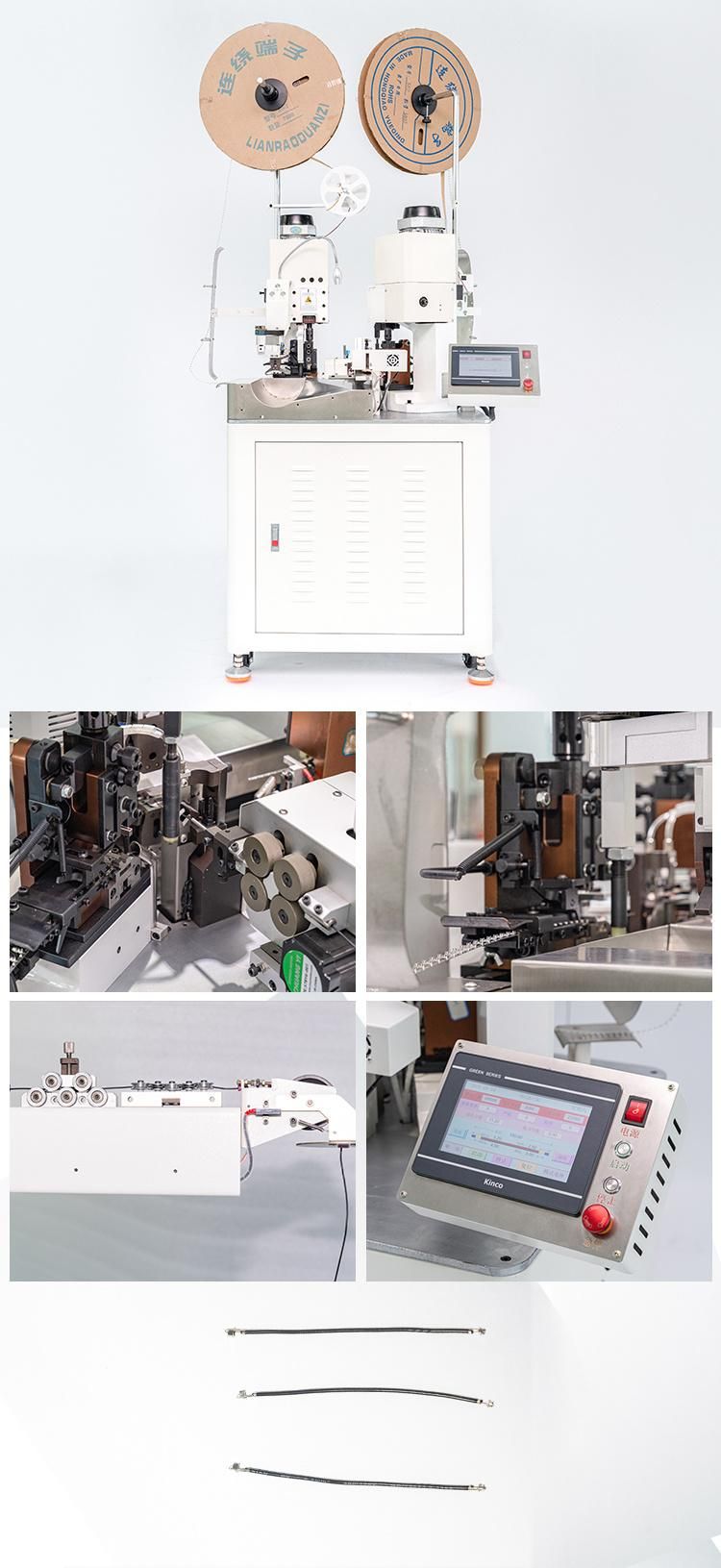

*Full automatic wire cutting and crimping machine,using the unique drive system,speed control technology and transmission mechanism of high rigid,is an excellent model has the high level processing ability and high machining accuracy.Operation developed operating system computer control of humanized operation interface,easy to understand,easy to use.
A:One end crimping one end stripping and twisting
B:One end stripping and twisting and one end crimping with pressure monitoring
*Pressure monitoring and take up equipment are optional
*Press waterproof plug can be customized

Our Advantages

1.What are the wearing parts?
Blade and belt. More spare parts info, please contact us.

2.Operation and user manual?
English and Chinese optional.

3.How long is the warranty period?
1year, all belts and blades without of the warranty.

4.What after sales service do you provide?
Technicians online support, video technical support within 24 hours.
If you need local service please check with Hechang . Generally require additional charges.
