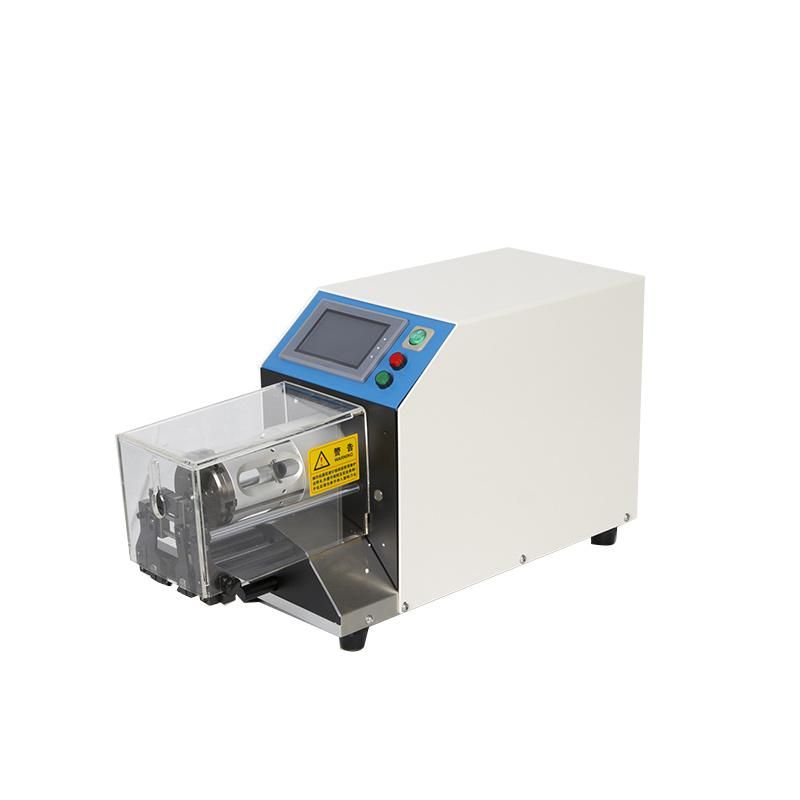

• Model NO.：HC-4606
• Model：Hc-4606
• Outer Dimensions：L200mm*W330mm*H530mm
• Weight：20kg
• Power Supply：220V
• Power Consumption(220V)：380W
• Maximum Stripping Levels：9
• Incise Depth：0.01mm
• Max Stripping Length：48mm
• Workable Cable Size：0.81-6.99mm (7.5mm Optional)
• Blade：2 Pieces  Material
• Trapper：2peices  Material:Imported Tungsten Steel
• Centering Slab：Automatic Self Aligning ,Motor Drive ,The Clamping
• Display：English Touch-Screen
• Productivity：Approx 700PCS,H (Depending on Conductor and Progra
• Drive Supply：Dynamo,Roll Shot Silk Stem Drive ( Import From Jap
• Transport Package：Wooden Box
• Specification：W620*L335*H218mm
• Trademark：hechang
• Origin：Changzhou
• HS Code：8479899990
• Production Capacity：20sets,Mouth

Detailed Photos

Our Advantages

1.What are the wearing parts?
Blade and belt. More spare parts info, please contact us.

2.Operation and user manual?
English and Chinese optional.

3.How long is the warranty period?
1year, all belts and blades without of the warranty.

4.What after sales service do you provide?
Technicians online support, video technical support within 24 hours.
If you need local service please check with Hechang Machinery. Generally require additional charges.
