• Model NO.：TBS-DJ-6331M
• Driven Type：Electric + Pneumatic
• Working Area：400*400*80mm(X*Y*Z)
• Dispensing Accuracy：+,-0.01mm
• Power Supply：AC 220V
• Weight：65 Kg
• Working Temperature：5-40
• Working Humidity：20-90% Rh
• Transport Package：Wooden Box
• Specification：630*730*850mm
• Trademark：Topbest
• Origin：China
• HS Code：8486402900
• Production Capacity：1000 Pieces,Year

Basic Info.

Model NO. TBS-DJ-6331M Driven Type Electric + Pneumatic Working Area 400*400*80mm(X*Y*Z) Dispensing Accuracy +/-0.01mm Power Supply AC 220V Weight 65 Kg Working Temperature 5-40 Working Humidity 20-90% Rh Transport Package Wooden Box Specification 630*730*850mm Trademark Topbest Origin China HS Code 8486402900 Production Capacity 1000 Pieces/Year

Product Description

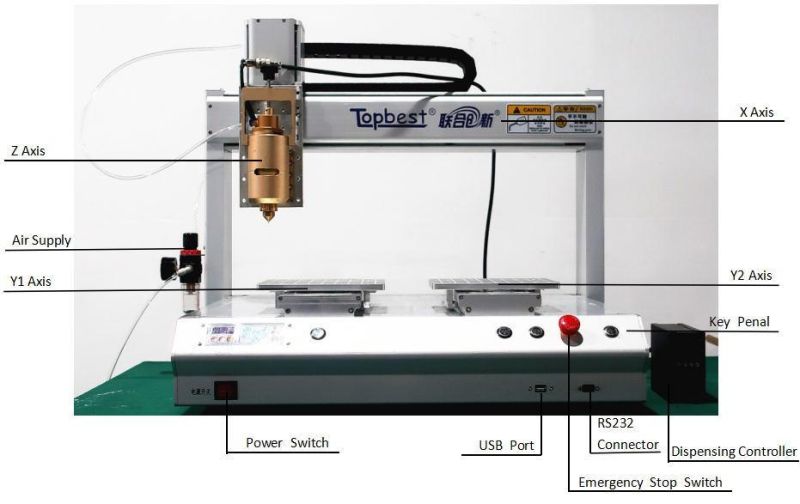

TBS-DJ-6331M


Description

The automatic fluid dispensing machine is widely used in various industries, such as mobile phones, hard drives, keyboards, toys, LCD / LED modules, communications equipment, electrical appliances, auto parts and other electronic processing assemblies. The dispensing machines can solve many substantial problems of small, medium and large enterprises, such as labor shortage, low production efficiency, high labor intensity, increased material consumption costs, and increased difficulty in management.








Parameters

Model	Topbest-DJ3-441
Dimension (L*W*H) (mm)	730*630*850 mm
Weight(kg)	65
Operation Range (X*Y*Z) (mm)	400*400*80 mm
Axes	3 Axis (X,Y,Z)
Control System	Motion Controller or PLC + Teach Pendant
Driving mode	Precision Stepping Motor+Timing belt
Move speed	X,Y 600-800MM/S,Z 400MM/S,
Repeated precision	+/-0.02MM
Dispensing Control	Dispensing Control System
Dispensing speed	According to customer's product requirements and glue types
Control Panel	Teach pendant
External Interface	USB + RS232
Air pressure requirement	0.4 to 0.6MPa (4 to 6kg/cm2) as dry air
Working Temperature	5-40C°
Working Humidity	20-90% RH


Available Dispensed Material
hot melt adhesive, PUR glue, etc.
