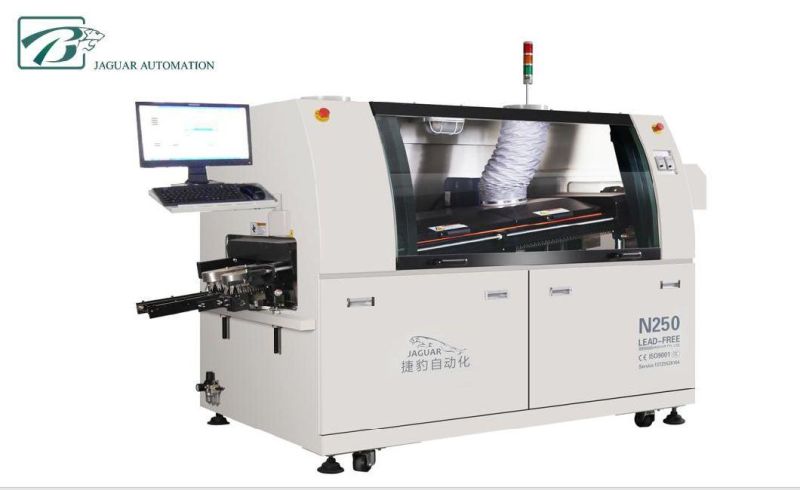

Small Size Lead Free Wave Soldering


SPECIFICATION:

Model No.	JAGUAR N250
Number of heating zones	1
Length of heating zones	800mm
Body size	1800(L)*1200(W)*1560(H)
Outside dimension	2600(L)*1200(W)*1560(H)
Weight	700KG
Total/running power	16KW/4KW
Air supply	0.5MPa
Preheating method	IR(standard)
Preheating power	220V 5KW
Control  method	Press key +PLC
Range of temp. control	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder type	Lead-free / Sn-Pb
Solder pot capacity	220KG
Solder pot temperature	300ºC
Solder power	380V 8KW
Solder temp. control method	PID&SSR
Wave crest drive power	500W 220V
Warm-up time of solder	About 120mins for setting 250ºC
PCB  width	50-250mm
Convey  speed	300-1500mm/min
Convey  direction	L→R (R→L optional)
Convey   angle	4-7 º
Flux pressure	3-5 bar
Flux capacity	6L

INTRODUCTION:
1. Automatic conveying power system, with non-level frequency conversing speed adjustment and auto synchronous board feeding functions.
2. Flux spray system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable
3. Remote infrared ceramic heating pipes are adopted in the preheating system which ensures good heat preservation effect, high heating up speed and even temperature
4. Special alloy transportation chain claws, non-stick tin, reinforced, and ensures the quality of welding PCB board.
5. Tin stove adopts imported high frequency conversion motor independent control, stable performance.
6. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
7. Tin heating furnace uses high-speed PID and 2-stept independent outer -heating control, warm-up quickly and eliminates the flaws of stove tin explodes
8. With time controller, can preset switch functions, tin stove machine heating picks up in 90minutes.
9. Reasonable design of environment protection, and automatic washing claw, ensure the claws clean.
10. The design is reasonable and safe with sensitive fault alarm system, to ensure the stable performance the safety of operators.
