• Model NO.：WG-8023C
• Power Consumption：Min.20W-Max.380W
• Funtaion：Stripping
• Wire Diameter Range：2.0mm-23mm
• Stripping Layers：1-9
• Transport Package：Wooden Case
• Specification：850*230*360mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-8023C Power Consumption Min.20W-Max.380W Funtaion Stripping Wire Diameter Range 2.0mm-23mm Stripping Layers 1-9 Transport Package Wooden Case Specification 850*230*360mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

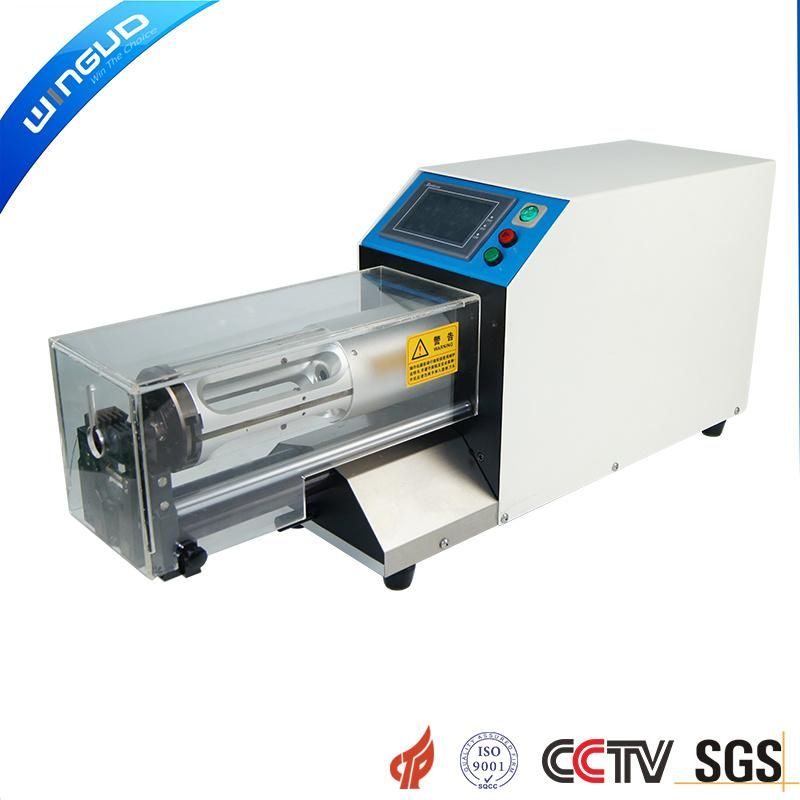

WG-8023C Coaxial Wire Stripping MachineFunctional characteristics:
It is mainly used to process the coaxial wire with larger external diameter and specific single wire,it adopt the most advanced fourblade rotating tool post and four-point centering slice,improved the processing capacity. Nine layers can be stripped and no need to change the blades, then it is feasible to process many kinds of sheath wire with different size.

Technical Parameters:
Stripping range:2.0mm-23mm
Stripping length:0.1mm-150mm
Cutting depth units:0.01mm
Maximum stripping layers:9
Blade:4 PCS
Power supply:220V 50/60Hz
Productivity:250-500pcs/h
Weight:40kg
Dimensions:850*230*360mm
