Semi Automatic Waterproof Seal Plug Loading Inserting Machine Wire Rubber Seal Insertion Machine
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type:Electric
- Condition:New
- Certification:ISO, CE
- Warranty:12 Months
- Automatic Grade:Automatic
- Wire Size:1-3.5mm
Base Info
- Model NO.:WL-300FS
- Seal Plug Inner Diameter:0.6-3.0mm
- Productivity:50times,Min
- Rubber Seal Size:Max: 9X10 mm
- Max Bolt Length:10mm
- Multicore Inner Wire Stripping Length:>38mm
- Accuracy of The Threaded Bolt Position:0. 3mm
- Power:< 150W
- Voltage:200V 50Hz
- Transport Package:Wooden Carton
- Specification:180x175x180cm
- Trademark:crown
- Origin:China
- HS Code:8479819000
- Production Capacity:50PCS,Month
Description
Basic Info.
Model NO. WL-300FS Seal Plug Inner Diameter 0.6-3.0mm Productivity 50times/Min Rubber Seal Size Max: 9X10 mm Max Bolt Length 10mm Multicore Inner Wire Stripping Length >38mm Accuracy of The Threaded Bolt Position 0. 3mm Power < 150W Voltage 200V 50Hz Transport Package Wooden Carton Specification 180x175x180cm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/MonthProduct Description
Semi automatic waterproof seal plug loading inserting machine wire rubber seal insertion machine
1. Waterproof plug size requirements: MAX: 9X10 (outer diameter x length) mm;
2. The inner diameter of the waterproof plug: 0.6-3.0mm;
3. Maximum bolt length: 10mm;
4. The outer diameter of the wire: 1-3.5mm;
5. The length of the inner sheath of the multi-core wire needs to be greater than >38mm
6. Work efficiency: 50 times/min (not counting manual speed);
7. Work quality: the accuracy of the threaded bolt position is ±0. 3mm;
8. Power supply: 200V 50HZ;
9. Power: <150W;
10. Operation interface: using visualization, parameters can be set quickly, and the operation is simple;
11. Material loading: The transparent baffle is used to facilitate the observation of the material usage and timely material replenishment. The material barrel is made of stainless steel. ;
12. In terms of operation: to complete each piercing action, you can use foot pedal or timing operation;
13. Material replacement: different waterproof bolt tracks and modules can be replaced, simple operation and quick replacement;
14. Safety: With safety protection cover and other safety prevention and control.
Product advantages::Product advantages:
1. Modular design, tool-free changeover, 4 minutes to complete, convenient and fast; 2. Photoelectric induction trigger, no need to pedal, improve the accuracy of penetration and reduce labor intensity; 3. One-key setting of all parameters on the touch screen; 4. Special mini, hard shell, and oversized waterproof plugs can be easily solved; 5. Komax rails can be installed and used |

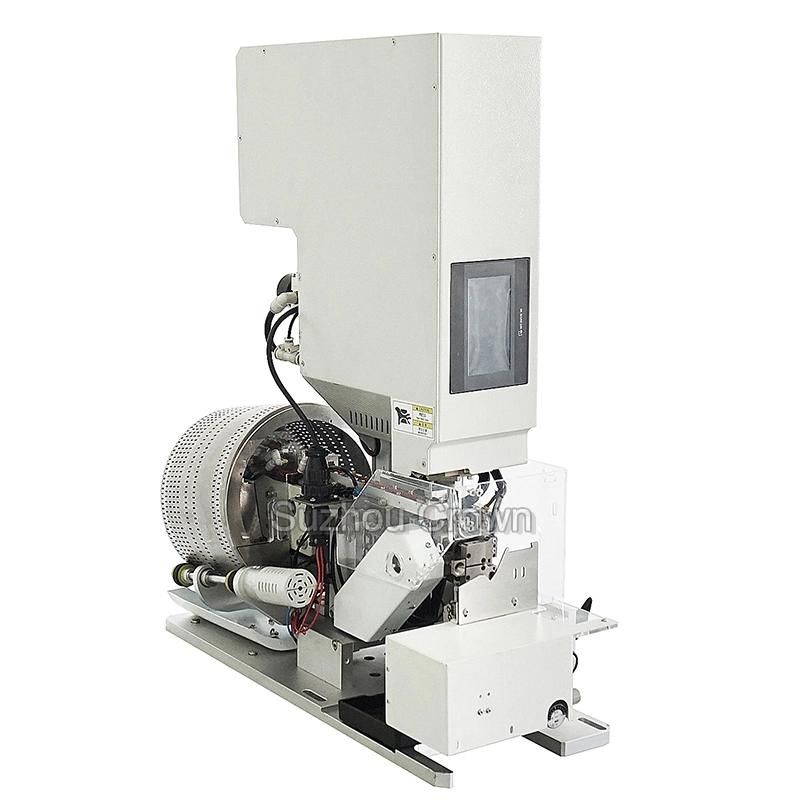

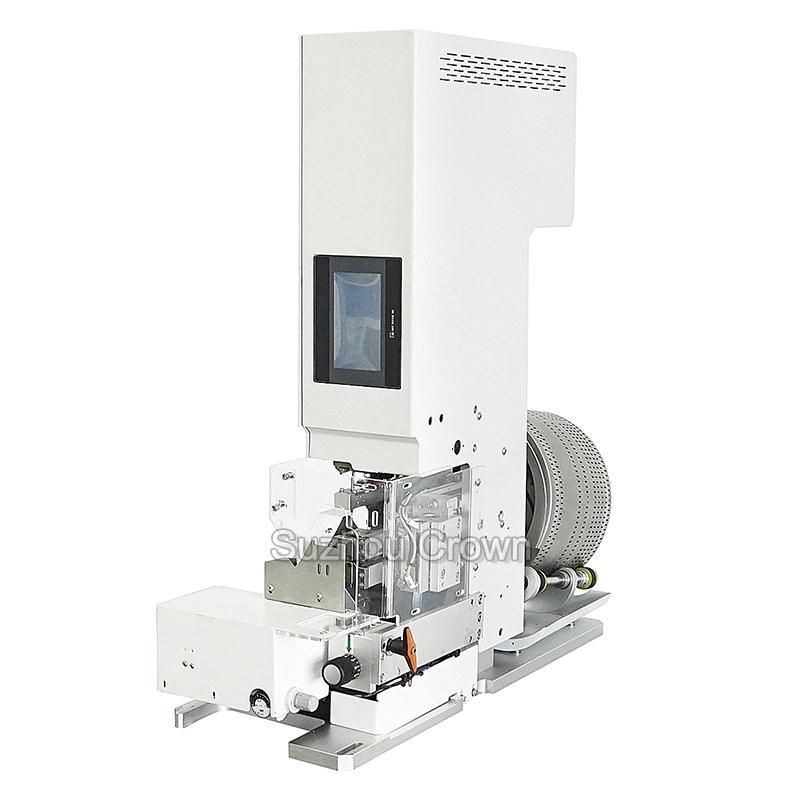

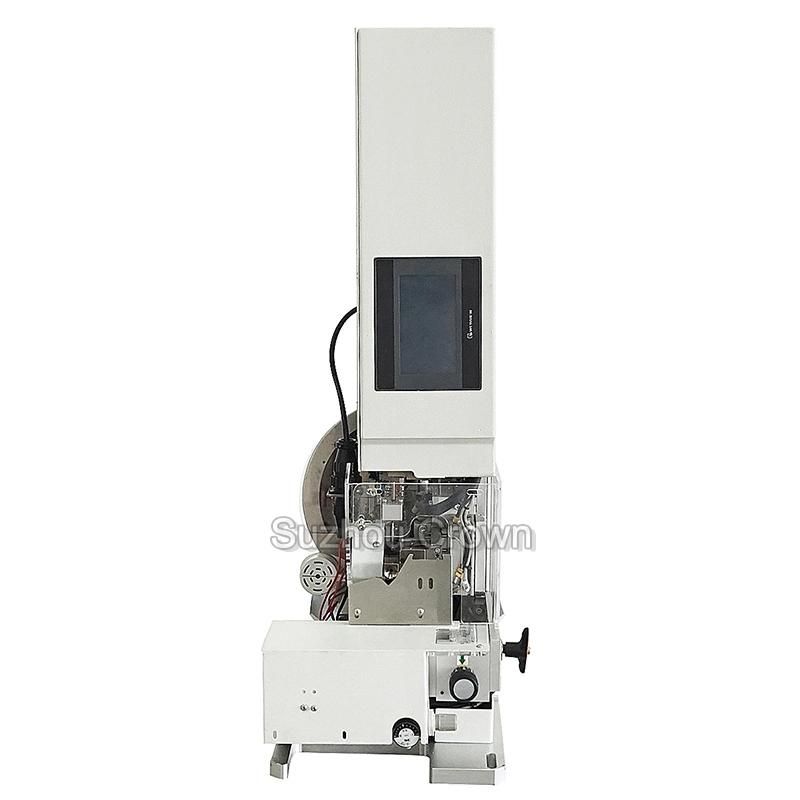

Detail image:

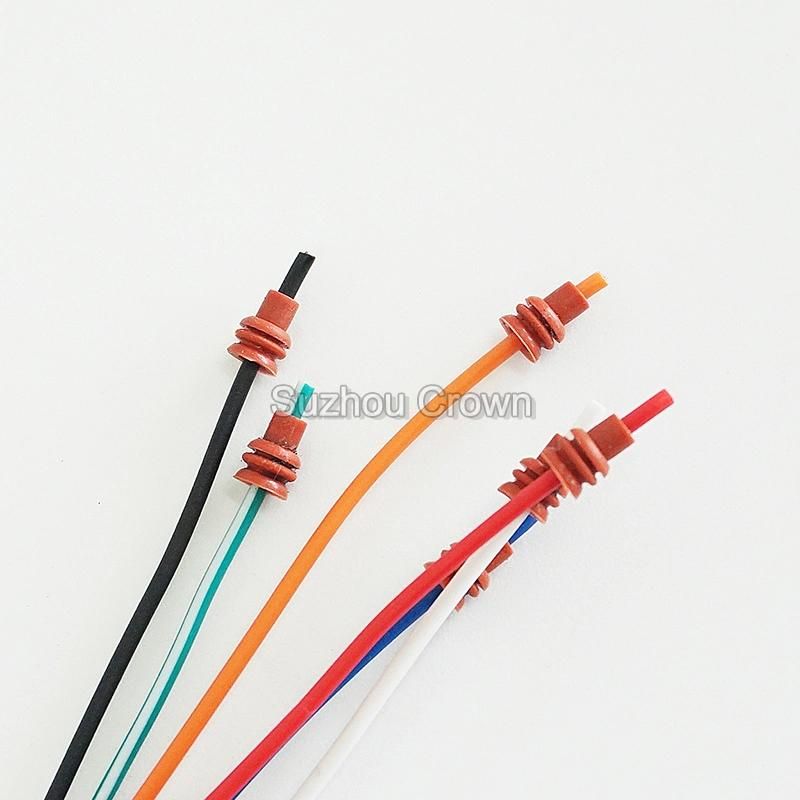

Finished products of this machine below:
Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .
ALso there are many models for your reference.
