• Model NO.：WL-S01
• Certification：ISO, CE
• Warranty：12 Months
• Automatic Grade：Automatic
• Wire Size：AWG16-AWG30
• Stripping Length：0-10mm
• Wire Cutting Length：45-99999mm
• Productivity：4000PCS,Hour
• Air Pressure：0.4-0.6MPa
• Cutting Wire Accuracy：0.01*Lmm (L =Cutting Length )
• Features：Wire Cutting, Two Ends Stripping, One End Crimping
• Model：Wl-S01
• Transport Package：Wooden Carton
• Specification：1600*900*750mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month
• Package size per unit product：76.00cm * 96.00cm * 170.00cm
• Gross weight per unit product：370.000kg

Basic Info.

Model NO. WL-S01 Certification ISO, CE Warranty 12 Months Automatic Grade Automatic Wire Size AWG16-AWG30 Stripping Length 0-10mm Wire Cutting Length 45-99999mm Productivity 4000PCS/Hour Air Pressure 0.4-0.6MPa Cutting Wire Accuracy 0.01*Lmm (L =Cutting Length ) Features Wire Cutting, Two Ends Stripping, One End Crimping Model Wl-S01 Transport Package Wooden Carton Specification 1600*900*750mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 76.00cm * 96.00cm * 170.00cm Gross weight per unit product 370.000kg

Product Description

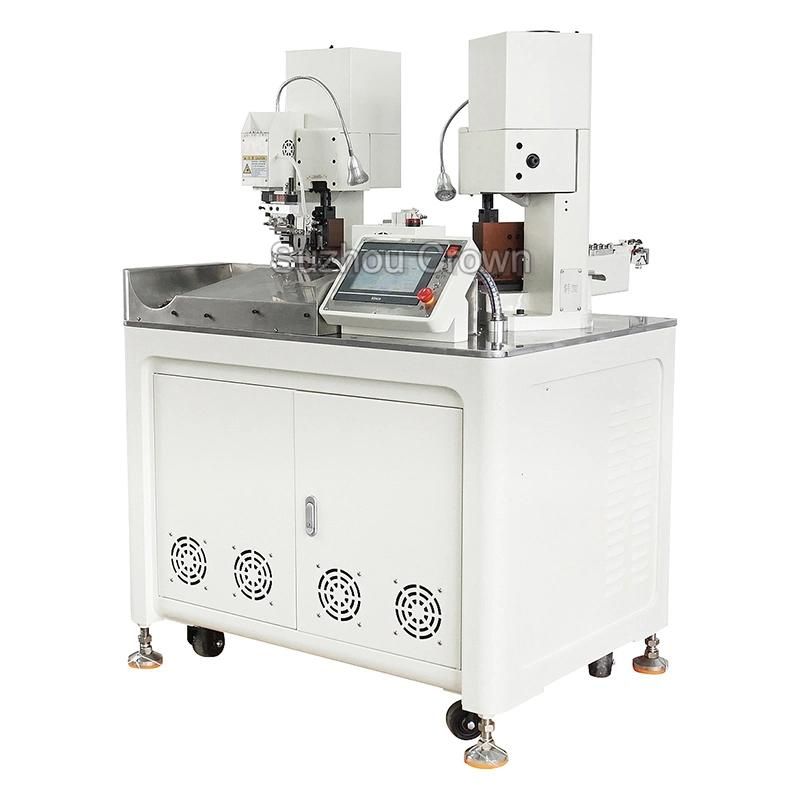

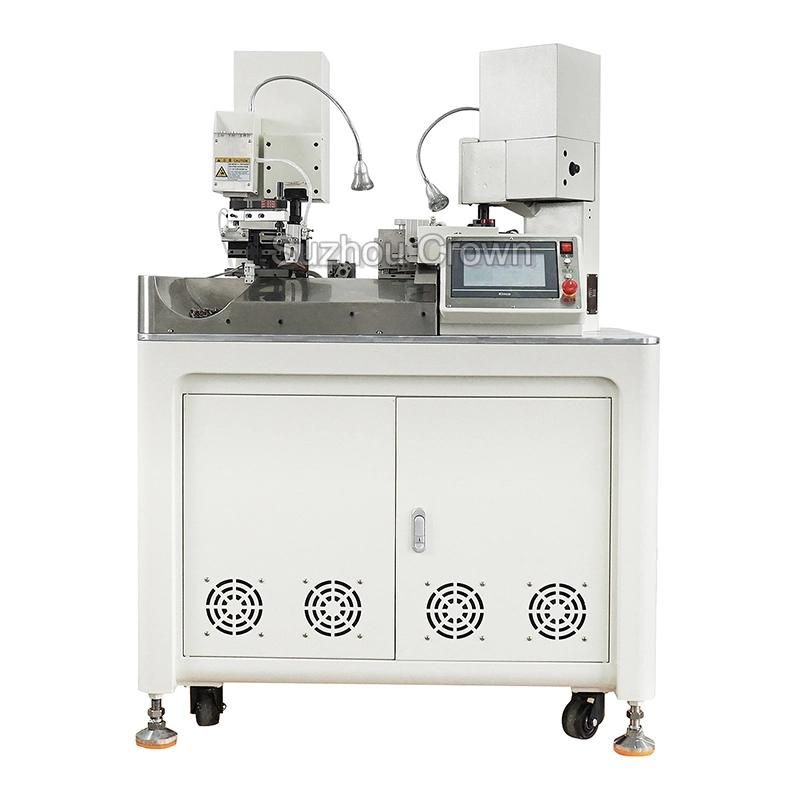

Crown High Productivity Easy Operate Cable Wire Crimping Machine

Function :Wire cutting, two ends stripping, one end crimping, two ends crimping, one end twisting

This fully automatic double-head terminal crimping machine can process wire cutting, wire stripping and crimp terminal at one end or both ends. It can be equipped with horizontal and vertical

Specifications:

Product Name	Automatic double head terminal crimping machine
Model	WL-S01
Power Supply	AC220V/50HZ/60HZ Single Phase
Mechanical function	wire cutting, single end stripping, double- end stripping, single and double head crimping
Capacity	4000 pieces/hour (within length 300mm)
Processing Range	AWG16#/-AWG30#
Cutting wire length	45-99999mm
Cutting wire accuracy	0.001*Lmm (L refers to the length of the cut line)
Stripping length	0.1mm-15mm on one end
Air pressure	0.4-0.6MPa
Detecting device	pressure detection, presence of wires, presence  of terminals Terminals without pressure, stripping detection
Appearance size	160x70x80cm
Machine weight	130KG

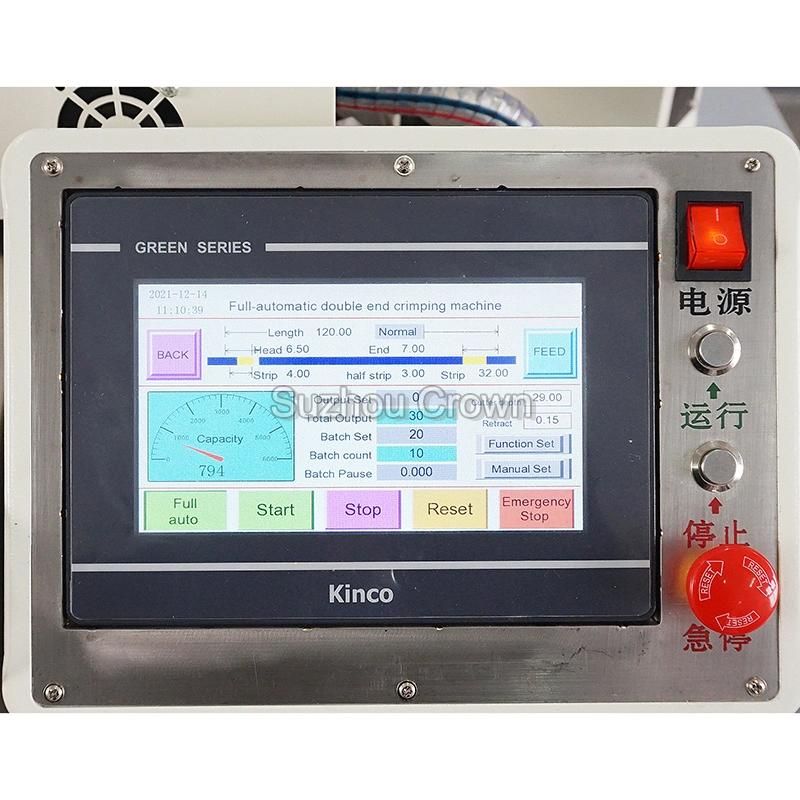

Detail image:

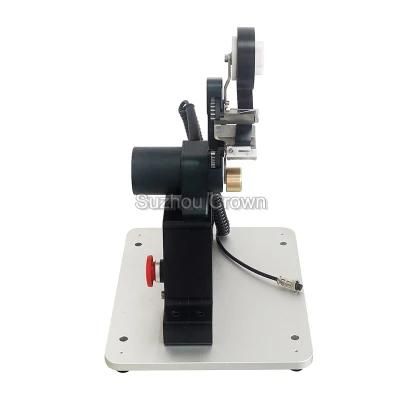

A wire feeding mechanism equipped with an accurate pulse signal electronic control unit,
It can control the cutting tolerance to less than 0.2% of the total length.
To achieve a higher standard quality of processed products,
You only need to replace the wire guide to change the wire type.
Convenient and fast, suitable for AWG18#-28# electronic line.

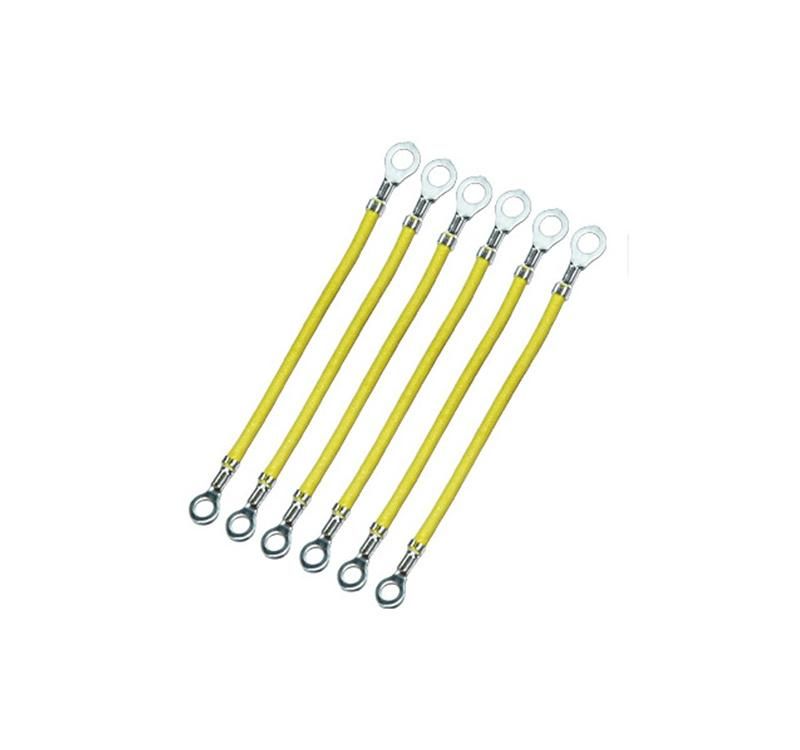

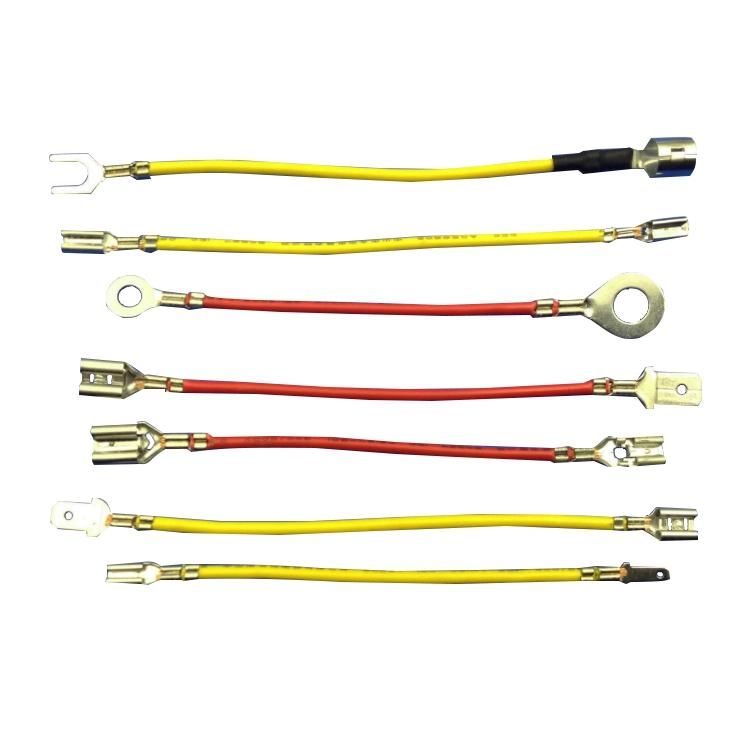

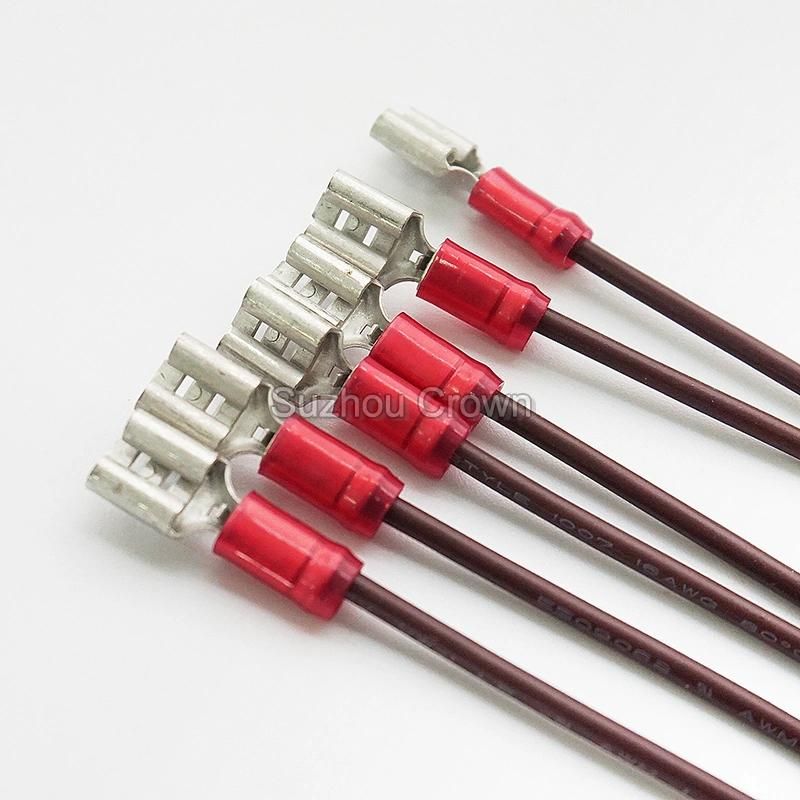

Finished products of this machine below:

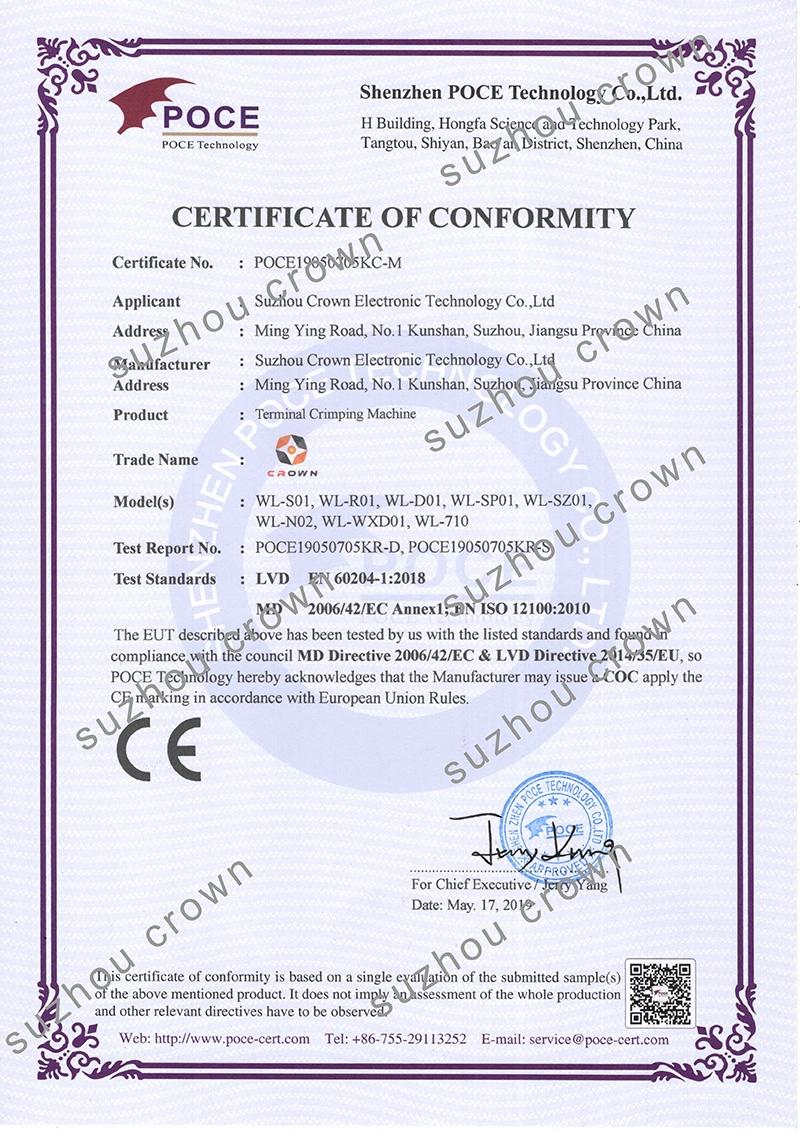

Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

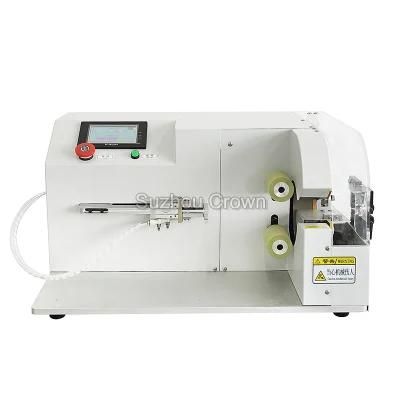

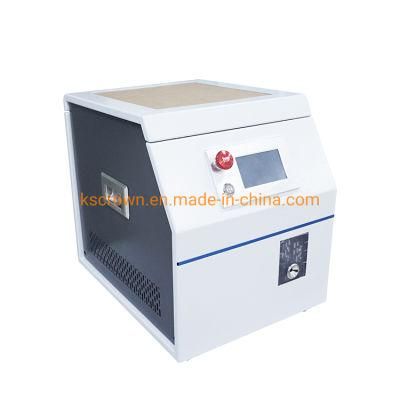

ALso there are many models for your reference.

You may also like

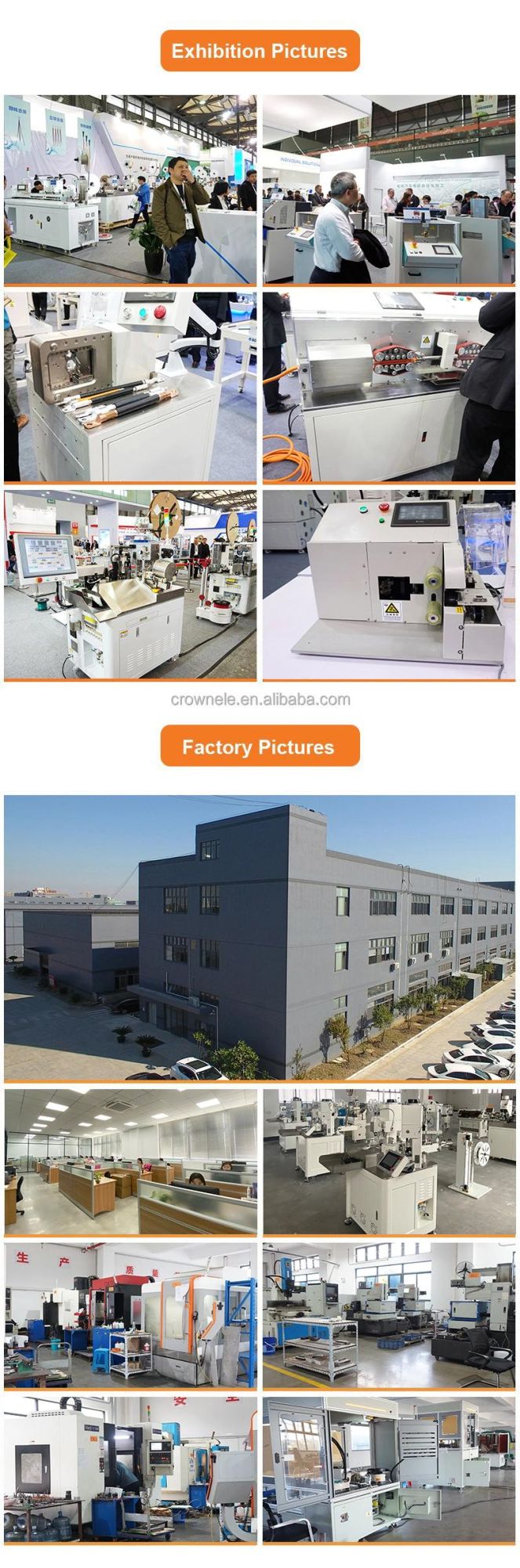

Company Information
 packing & shipping





 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance


If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.
