• Mould Life：>1,000,000 Shots
• Type：To Back Stranding Machine
• Usage：Skip Stranding
• Material：Copper Wire, Aluminum Wire and Steel Wire
• Maximum Strand Diameter：16
• Max Rotation Speed of The Tube：1200
• Stranding Pitch：49.3-372.7mm ( 36 Stage )
• Take-up Bobbin：Pn630-Pn1600
• Diameter of Draught Wheels：1200
• Main Motor Power：37kw
• Transport Package：Seaworthy Packing
• Specification：630,1+6
• Trademark：BH
• Origin：China
• HS Code：8479400000
• Production Capacity：100

Model (Skip Stranding Machine)JGB-630(500)JGB-700JGB-800Diameter of single wireCopperφ1.8-5 mmφ2-5 mmφ2.5-5 mmAluminumφ2.0-5 mmφ2.5-5 mmφ3.0-5 mm

Galvanized steel wire



φ1.0-4.0 mmφ1.2-4.0 mmφ1.5-4.0 mm

Maximum stranded conductor OD



φ35-55 mmφ35-55 mmφ35-55 mmStranding Pitch6 Bobbin Stranding Cage31.1-235.0mm31.1-235.0mm31.1-235.0mmMax. Rotating Speed6 Bobbin Stranding Cage1000 r/min800 r/min700 r/minCapstanCapstan Wheel Diameter1200 mm1400 mm1400 mmMaximum Haul-off Force10 T10 T12 T

Motor Power



37 KW45 KW55 KW

Bobbin Size



630*475*127710*530*127800*600*127

Center Payoff Bobbin



630*475*127710*530*127800*600*127

Take-up Bobbin



1250*950*801600*1180*801600*1180*80

Maximum Haul-off Linear Speed



235 m/min200 m/min170 m/min

Central Height

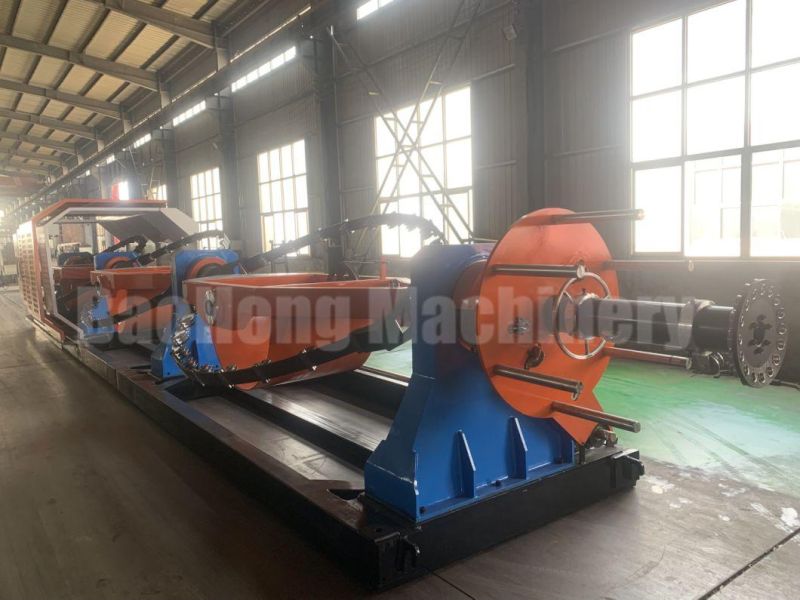

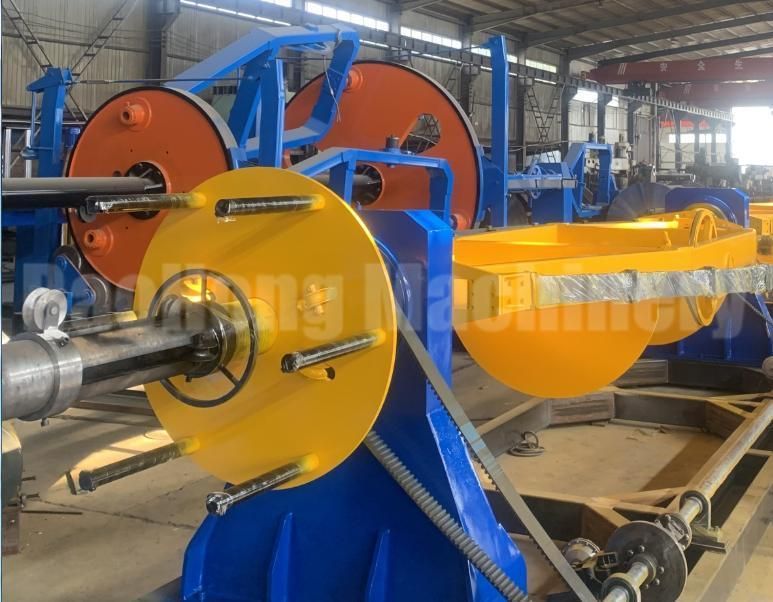

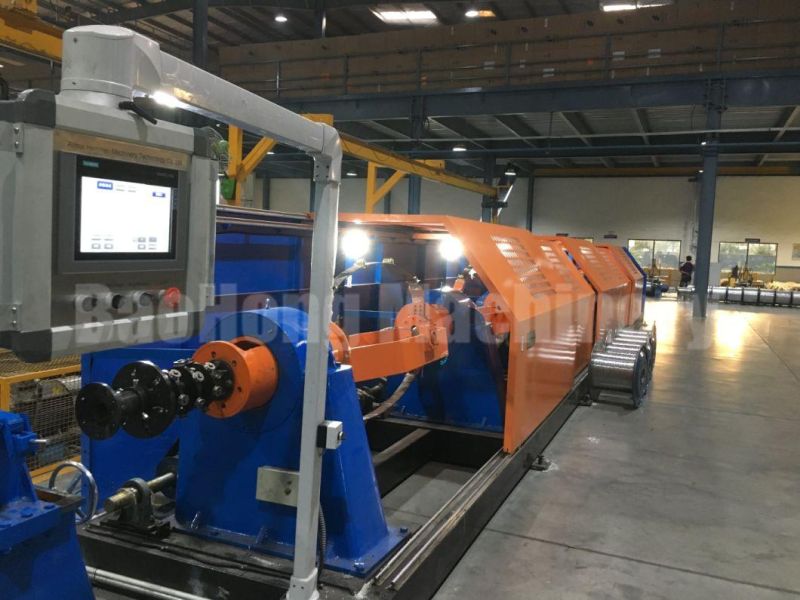

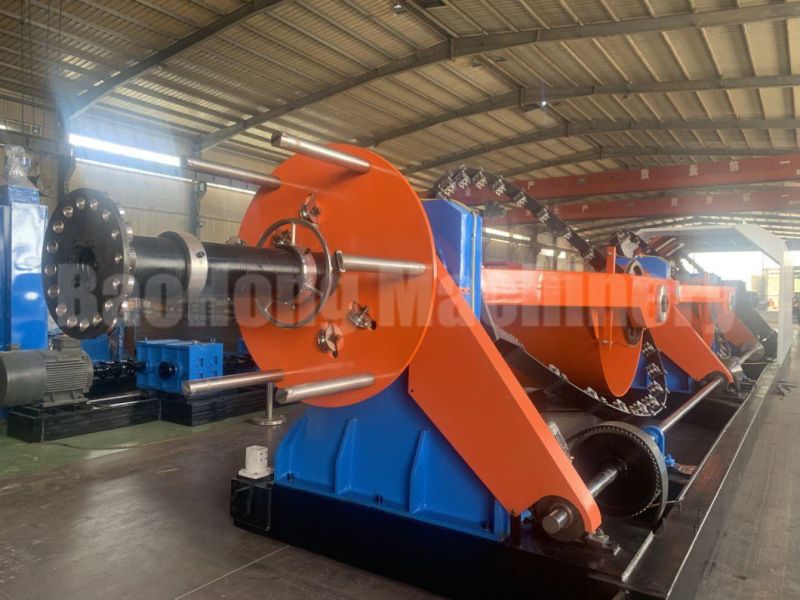

1000 mm1000 mm1000 mm3.Photo
