• Model NO.：Alpha
• Control：PLC
• Motor：DC Motor
• Cable Diameter：<60mm
• Precision：1-2%
• Take-up Speed：<100 mm,Min
• Applicable Wire Coil Dia.：630-2500mm
• Applicable Outer Dia.：<60mm
• Applicable Wire Coil Width：475-1900mm
• Machine Color：Customized
• Delivery Time：2 Months
• Structure：Gantry Type
• Parts Brand：Siemens
• Transport Package：Seaworthy Package
• Specification：Diameter 1250~2500
• Trademark：Alpha
• Origin：Wuxi, Jiangsu, China(Mainland)
• HS Code：8477209000
• Production Capacity：500 Sets Per Year

Model630/1250800/16001000/20001250/2500Applicable wire-coil specificationPN630-PN1250PN800-PN1600PN1000-PN2000PN1250-PN2500Applicable cable outer diameter (mm)≤25≤40≤50≤60Applicable wire-coil diameter (mm)630-1250800-16001000-20001250-2500Applicable wire-coil width (mm)475-950600-1180750-1500950-1900Take-up speed (mm/min)≤100≤100≤80≤60Winding precision (%)1-21-21-21-2Loading capacity (T)234.56

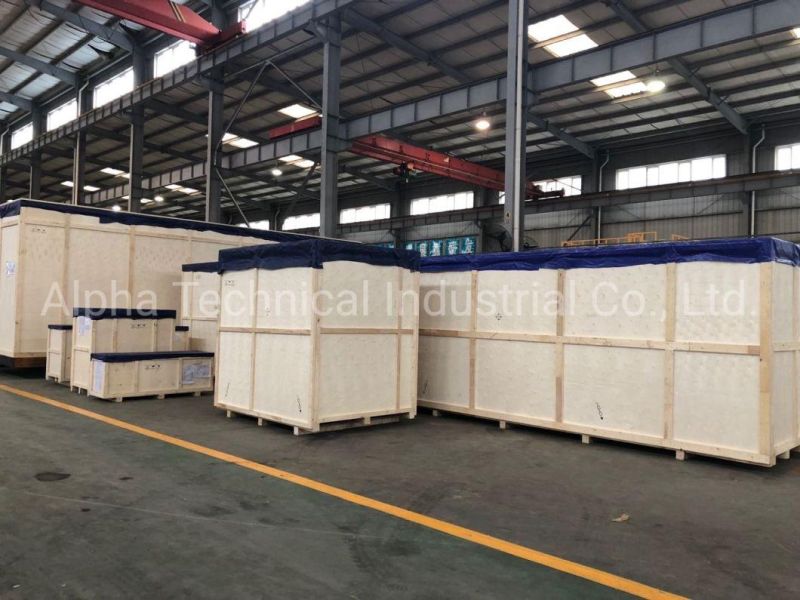

Machine package



Main part brand
 1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
 Our service
 Pre-sales service
- Inquiry and consulting  support
- Customized design support
- View our factory

After-sales service
- Training how to install and how to use the machine
- Engineers available to service machinery overseas

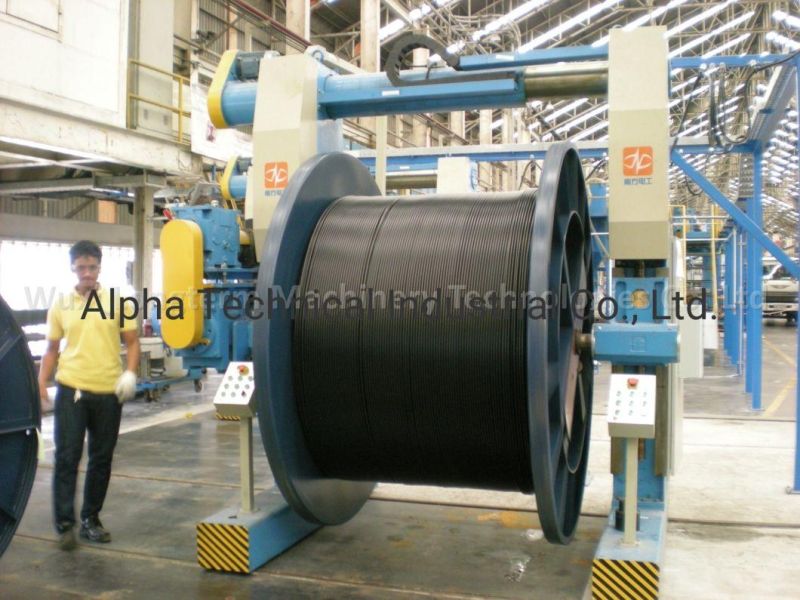

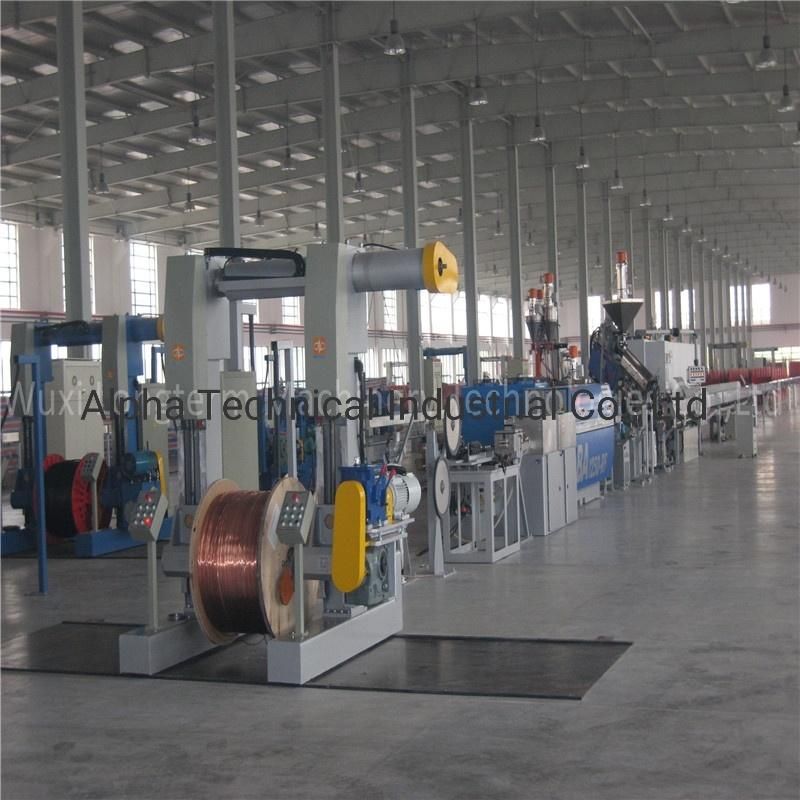

Project show
 USA


South Africa


Malaysia

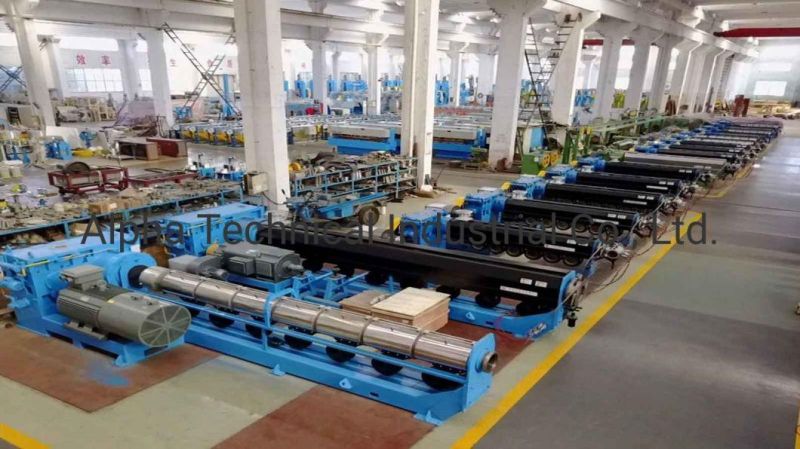

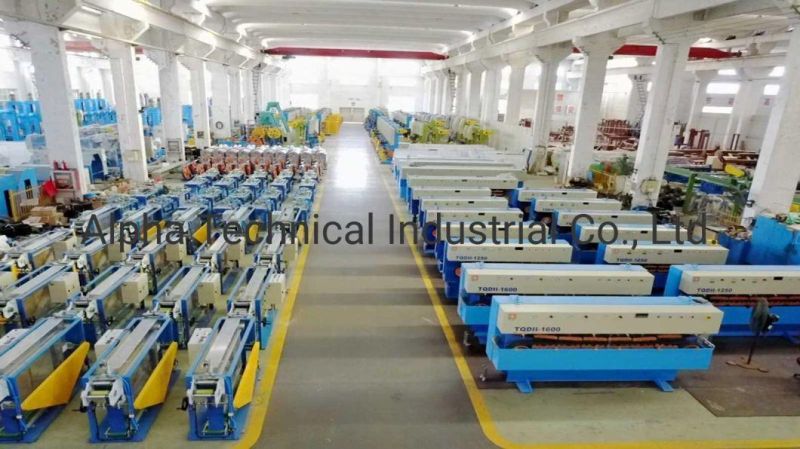

 Factory show
 Alpha Technical Industrial Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.



Our team


 Relevant machinery

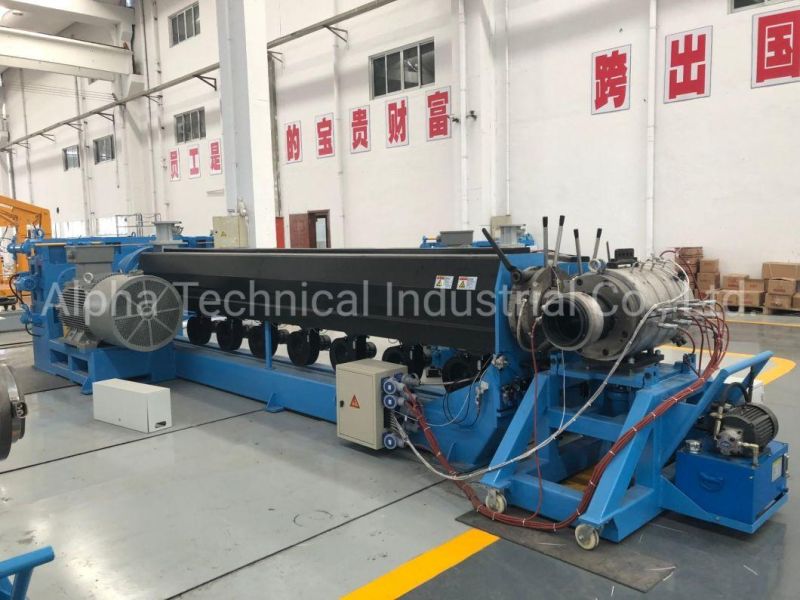

- Cable extrusion machine
A.Description
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter

Type & Size	Screw Dia. (mm)	L/D ratio	Screw speed (rpm)	Main motor (kw)	Barrel heating power (kw)	Temp. contr. zones (body/cross head)	Max. output capacity (PVC) (kg/h)
SJ30X25	20	25:1	5-150	11	3.6	3/2	20
SJ45X25	45	25:1	10-120	15	9	3/2	50
SJ65X25	65	25:1	10-100	30	16	4/4	120
SJ90X25	90	25:1	10-100	90	30	4/4	280
SJ120X25	120	25:1	7-68	132	54	6/4	580
SJ150X25	150	25:1	6-60	185	88	6/4	880
SJ200X25	200	25:1	4-40	250	140	7/4	1100

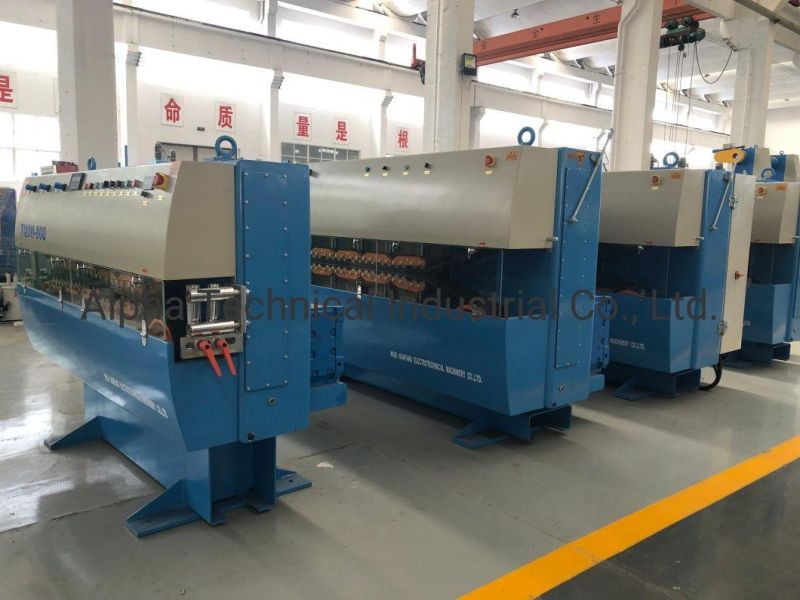

-Cable puller / caterpillar
Mainly used for various cable production lines for single machine or front and rear double traction.
Machine details

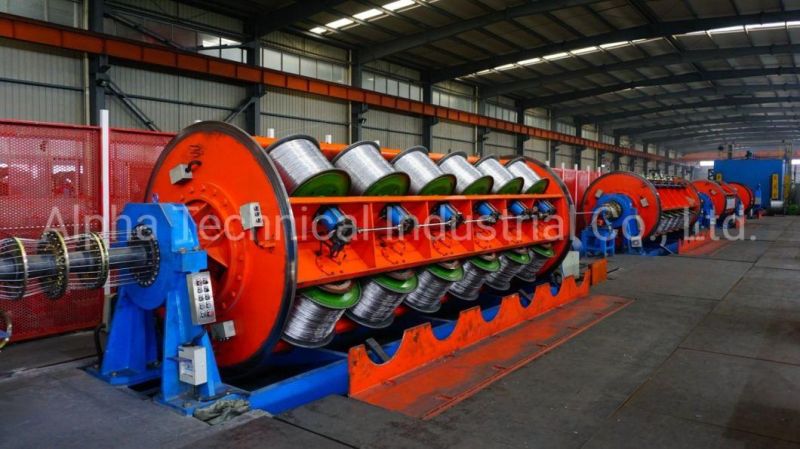

- Cable strander
 FAQ

− Q: Are you the manufacturer or trading company?

     A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.

− Q: What is your company's main production?

     A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

− Q: What can we offer our customers?

     A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

     A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
     A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

         We have an experienced team of skilled workers and engineers.

         We can support overseas training engineers.

         We can customize the design, to accept the customer's sample design.

         We can provide customers with after-sales service.
