• Model NO.：TP400V
• Precision：High Precision
• Certification：ISO, CE
• Warranty：18 Months
• Automatic Grade：Automatic
• Type：High-speed Chip Mounter
• Accuracy：0.05mm
• Max PCB Size：400*350mm
• Placing Speed：3500cph
• Max Printing Size：400*350mm
• Max Moving Range：400*630mm
• Z Axis Max Moving Range：70mm
• Typical Mounting Speed：2000-2800cph
• Power Supply：220V, 50Hz, 3kw
• Mounting Accuracy：+,-0.05mm
• Weight：310kg
• Transport Package：1100*960*750mm
• Specification：CE
• Trademark：TERMWAY
• Origin：China
• HS Code：8479896200
• Production Capacity：20 Sets Per Month
• Package size per unit product：128.00cm * 141.00cm * 75.00cm
• Gross weight per unit product：410.000kg

Basic Info.

Model NO. TP400V Precision High Precision Certification ISO, CE Warranty 18 Months Automatic Grade Automatic Type High-speed Chip Mounter Accuracy 0.05mm Max PCB Size 400*350mm Placing Speed 3500cph Max Printing Size 400*350mm Max Moving Range 400*630mm Z Axis Max Moving Range 70mm Typical Mounting Speed 2000-2800cph Power Supply 220V, 50Hz, 3kw Mounting Accuracy +/-0.05mm Weight 310kg Transport Package 1100*960*750mm Specification CE Trademark TERMWAY Origin China HS Code 8479896200 Production Capacity 20 Sets Per Month

Packaging & Delivery

Package size per unit product 128.00cm * 141.00cm * 75.00cm Gross weight per unit product 410.000kg

Product Description

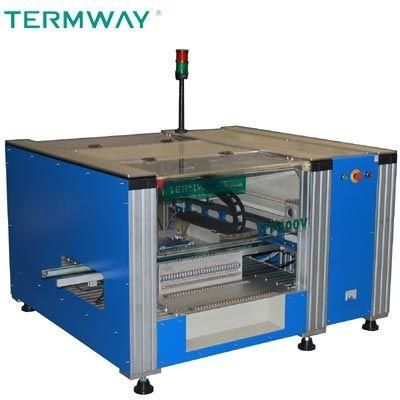

Automatic visonal high speed Pick and Place Machine  TP400VII (0402 and above)


Introduction:
Automatic pick and place machine TP400V-11 is the high cost-effective equipment in the market, it can pick and place variety of components by its vacuum nozzle. The machine can mount SMD chip components above 0402,SOIC, PLCC, QFP IC; vision position system which can meet pitch 0.5mm of QFP IC. Beside round datum mark,square PCB pad and ring hole pad can be recognized as datum mark.

Features::
1. Automatic Mount by control of software.
2. Quick PROTEL data import or write-in by hand
3. Visional + machinery position.
4. Visional program system can identify MARK point automatically to improve production efficiency and accuracy.
5. Visional program system can produce X, Y coordinates of all components automatically after confirmed the basic MARK point, and them complete the mounting process.
6. Unique optical prism and high-definition industrial cameras for placing high-precision components.
7. Exact quadrate guide rail, smooth gliding arm for improving mounting accuracy.
8. Air suspended pick-and -place head
9. Automatic nozzle replacement system.


Main parts: :
1,DC servo motor driving system
It uses loop DC servo motor driving system for a high precision repeating accuracy and stability.
2,Vision centering system
Vision centering system can mount 0.5mm pitch QFP IC
3,No-contact flying centering system
   Flying centering system can mount most of SMD components include: 0402, SOIC,PLCC & QFP IC.
4,Flexible reference point system(RPS):
In addition to standard Round reference point, square PCB pad and ring PCB pad with hole also can be identified as a reference point.
5,All-purpose automatic feeder
TP400V-ii has 8mm, 12mm,16mm, 24mm , you can choose to install according to your component type and your required speed.
6,Flexible tray-type station
TP400V can equip 2 tray which is help mount bulk components under the semi-auto mode.
7,CAD/Protel data transfer Except for study the component coordinate by Camera or keyboards input, you can choose CAD transfer software WCAD (optional) to transfer the PCB's CAD into pick and place data.
8,Buffering nozzle
Buffering nozzle can adjust the pressure automatically according to different components height to avoid the damage due to different component heights or programming errors, it is suitable for various types of pick and place ceramic components and ceramic circuit board.
Technical Parameter:

Optional:
1. Automatic feeder
2. IC disc
3. Automatic PCB transmission system
