• Model NO.：DL120
• Power：120kw
• Transport Package：Wooden Box
• Specification：DL100
• Trademark：DL
• Origin：Dongguan
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. DL120 Power 120kw Transport Package Wooden Box Specification DL100 Trademark DL Origin Dongguan Production Capacity 10000pieces/Year

Product Description

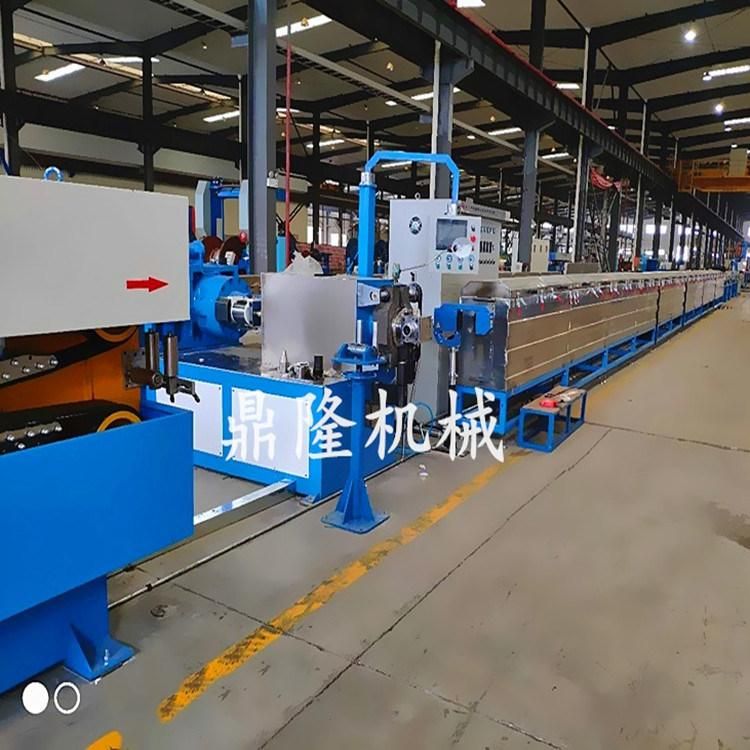

Single core or sheath extrusion machine for silicone cable
1, Silicone heating cable extruder / electric floor heating cable equipment purpose:

It is suitable for the extrusion production of various electric heating products such as floor heating line, carbon fiber heating line, carbon fiber silica gel heating line, etc.

2, Main components of silicone heating cable extruder / electric floor heating cable equipment:

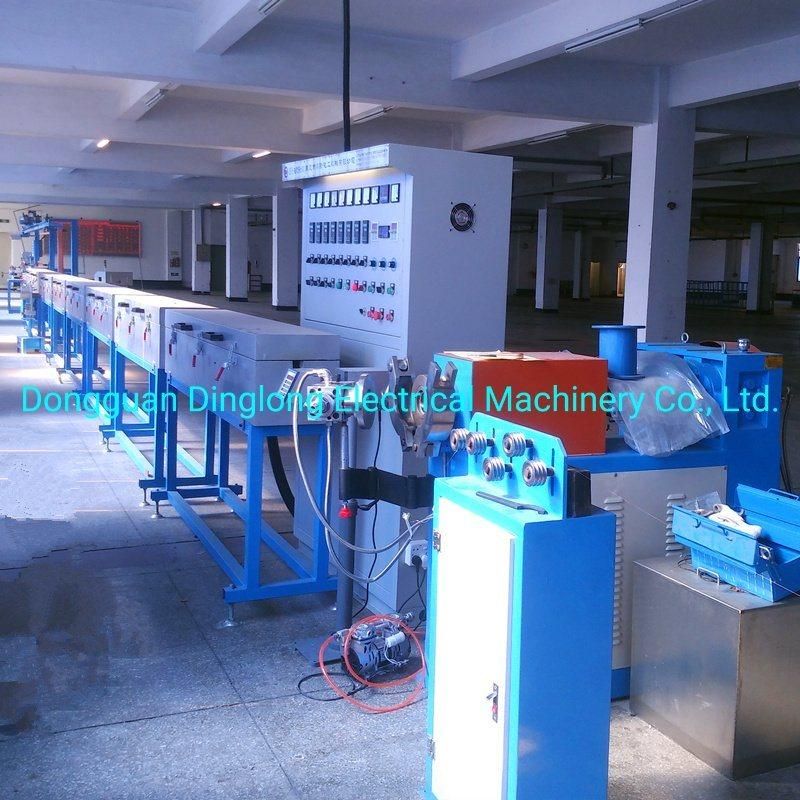

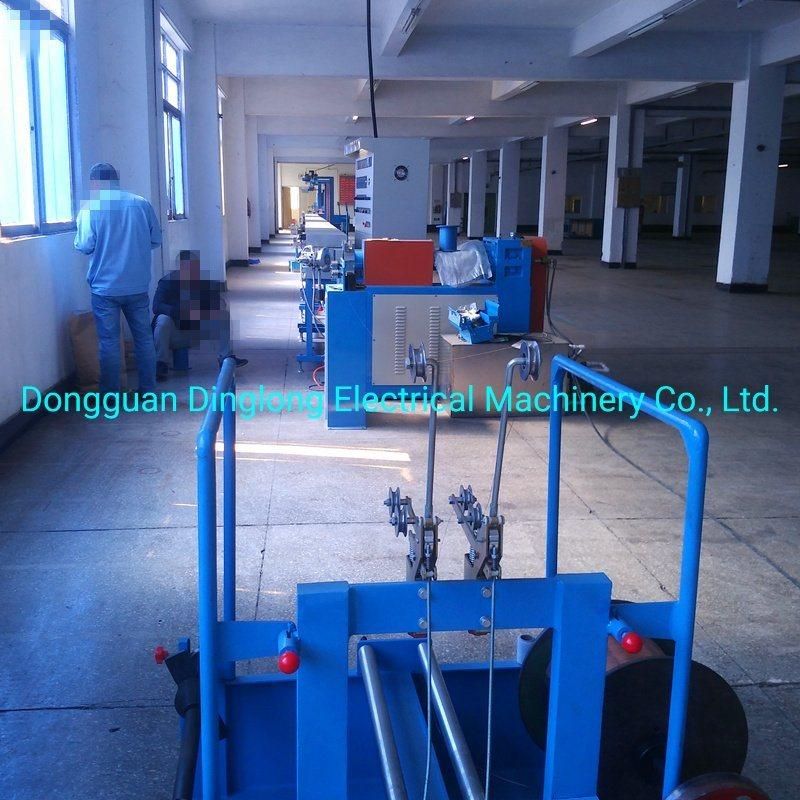

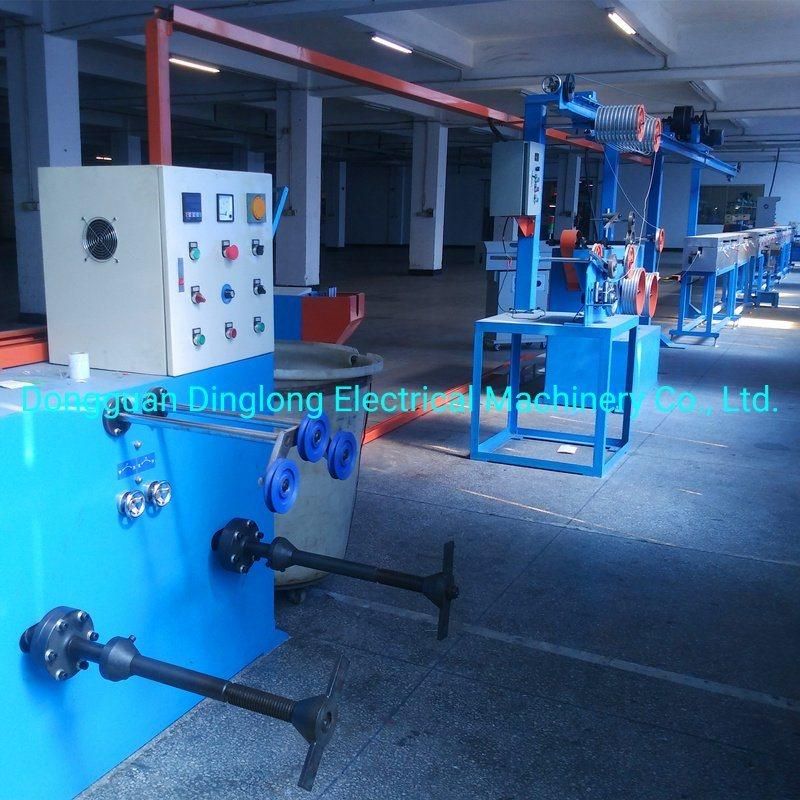

Pay off rack ----- copper wire straightening table ----- copper wire preheater ----- extruder host ----- head vacuum machine, hopper dryer and automatic suction machine ----- caliper ----- printer ----- 16m horizontal oven ----- electric control box ----- double wheel extractor ----- meter counter ----- horizontal tension wire storage rack ----- spark machine ----- double shaft take-up machine

3, Silicone heating cable extruder / electric floor heating cable equipment main brand accessories:

Motor: Siemens motor

Frequency converter: Emerson frequency converter

Temperature control meter: Japanese RKC temperature control meter PID intelligent

Electrical appliances: Taiwanese brands Shilin, Ruisheng, Tiande, Yangming, etc

Screw barrel: material gh-113, produced in Zhoushan, Zhejiang

Handpiece: adjustable handpiece, material gh-113

Technical Specifications

	DL90	DL100	DL120	DL150
Finished diameter	5-30mm	10-40mm	15-50mm	20-70mm
Line speed (max.)	70m/min	50m/min	40m/min	30m/min
Extrusion output (max.)	200 kg/h	260 kg/h	350 kg/h	400 kg/h
	12:1	12:1	12:1	12:1
Extruder power	22KW	45KW	55KW	75KW
Payoff  reel	PN800-1250	PN800-1250	PN1250-1600	PN1600-2500
Curing length	24m	28m	30m	36m
Capstan power	7.5KW	10KW	15KW	20KW
Take-up reel	PN800-1250	PN800-1250	PN1250-1600	PN1600-2500

FAQ1
Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production.
      It takes more than 30 business days to customize complex mechanical equipment.
Q2: What is terms of payment? MOQ?
A2: T/T. 1 set.
Q3: How do you gurantee the machine stable operating?
A3: We do pre-shipment test for every single piece of machine.
      We have seperate QC, delivery, sales and after-sales departments.
      Also strict management process from pre-sales to after-sales.
Q4: How is your after-sales service?
A4: 1 year warranty with 60+ oversea after-service engineers
     (oversea after-service team of high efficient, professional and enough experience for various non-standard project) .
Q5: How can I install my machine when it arrives?
A5: For simple and semi-auto machine, we will send manual instruction and teaching video.
      For complex operation, we will send the engineers overseas to help client installing, operating and training.

Our Services
What to provide customers with after-sales service?
Pre-sales services:
1. Inquiry and consulting support.
2. Customized design program.
3. Pre-sale training: in order to guarantee all customers fully to operate the machine, if a customer needs, we can help our customer training, includes:
1) Correct operating mode.
2) Correct maintenance way.
3) Remove simple problem of our product.
After-sales service:
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part.
2) 6 month for electrical part.
3) Offer lifetime consultation on problems occurred.

Our products include:
1. Silicone strip equipment series.
2. 3D printer filament extruders.
3. LED strip equipment series.
4. Rubber processing machines.

Since our company was founded, over the past 13 yeas, our products have been extensively exported to Africa, Southeast Asia, Latin America, Europe and other markets.
