• Model NO.：630
• Mould Life：>1,000,000 Shots
• Type：High-speed Stranding Machine
• Material：Metal
• Colour：as Required
• Wire Diameter Specification：1.5-5.0mm
• Cage Speed：64-170 Rpm
• Stranding Pitch：84-911 mm
• Traction Wheel Diameter：2000 mm
• Pay-off Bobbin in Cage：Pnd 630
• Central Pay-off Bobbin：Pn800-Pn1600
• Take-up Bobbin：Pn1250-Pn2500
• Central Height：1100 mm
• Transport Package：Seaworthy Packing
• Specification：630,1+6+12+18+24
• Trademark：BH
• Origin：Hejian, Hebei, China
• HS Code：8479400000
• Production Capacity：15 Sets,Month

Specification500/12+18+24630/12+18+24710/12+18+24  Dia. of single wire(mm)Copper1.5-5.0 Aluminium1.8-5.0Production dia.(mm)45Stranding cage speed ( r/min)75-23164-17046-146Stranding pitch (mm)71-78084-91189-1163Diameter of wheel haul-off (mm)200025002500Production speed (m/min)14.3-58.513.1-53.5Take-up reelPN1250-PN2500PN1600-PN3150

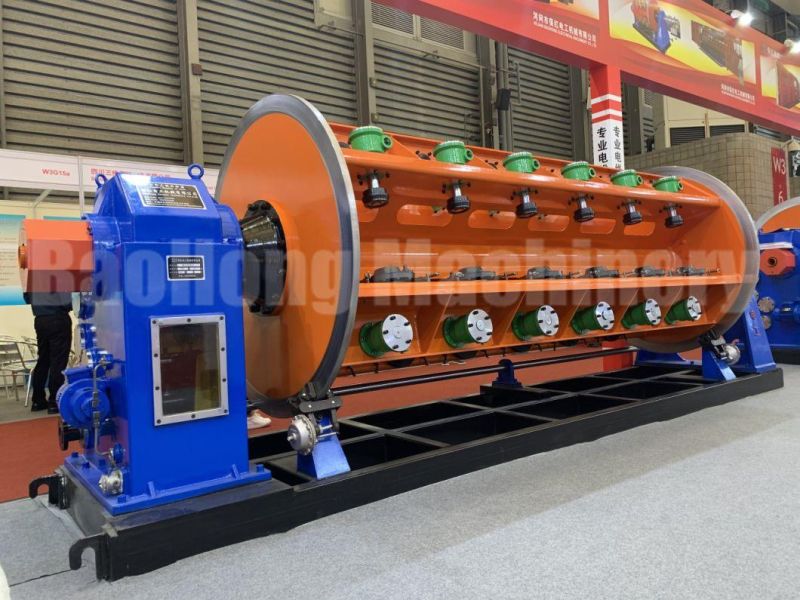

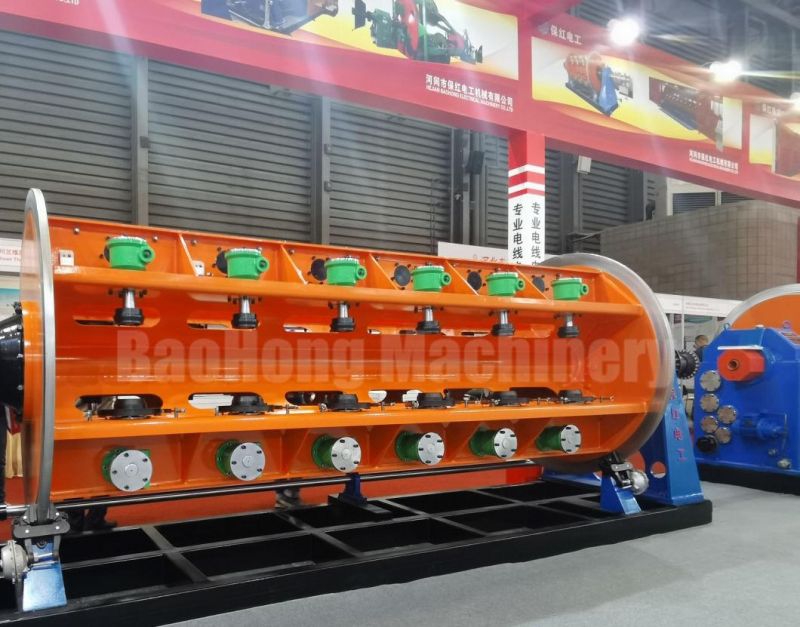

3.Photo
