Cable Twisting Machine, Steel Rope Stranding Machine, Planetary Stranding Machine
Alpha Technical Industrial Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Mould Life：300,000-1,000,000 Shots
Base Info
- Type：High-speed Stranding Machine
- OEM Service：Positive
- Main Motor：4.7.1 37kw(AC )
- Air Pressure：0.6
- Air Volume：0.5m3,Min
- Total Capacity：52kVA
- Taping Pitch：2.616~251mm
- Line Speed of Capstan：30.97m,Min
- Central Height of Machine：1000mm
- Name：Steel Rope Tubular Twister,Stander Machi
- Transport Package：Standard Sea Worthy Package
- Trademark：HLT
- Origin：Jiangsu Wuxi
- HS Code：847790000
- Production Capacity：50 Units,Year
Description
Single Wire Diameter6B 12B 18B 24B 36B Bow Cradle Max.Rotation Speed Alumimum Copper Steel φ200 1500 1400 1300 1100 900 φ0.8~φ1.5 φ0.6~φ1.5 φ0.2~φ0.8 φ315 1400 1300 1200 1000 800 φ1.2~φ2.0 φ1.0~φ2.0 φ0.4~φ1.0 φ400 1300 1200 1100 900 800 φ800 500 φ1.5~φ3.0 φ1.5~φ3.0 φ0.6~φ2.0 φ500 1100 1000 850 750 700 φ1000 400 φ1.5~φ4.0 φ1.5~φ4.0 φ0.75~φ3.0 φ560 900 800 700 650 600 φ1250 350 φ1.5~φ5.0 φ1.5~φ5.0 φ0.85~φ3.5 φ630 900 800 700 650 600 φ1250 350 φ1.5~φ5.0 φ1.5~φ5.0 φ0.85~φ3.5 φ710 600 500 450 400 350 φ1600 300 φ1.5~φ6.6 φ1.5~φ6.6 φ0.85~φ4.5 φ760 500 450 400 350 300 φ1600 300 φ2.0~φ7.0 φ2.0~φ7.0 φ1.2~φ4.5 φ800 450 400 350 300 220 φ1600 300 φ2.0~φ7.0 φ2.0~φ7.0 φ1.2~φ4.5

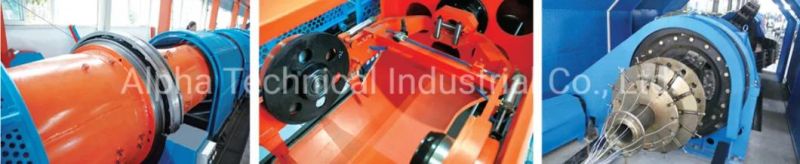

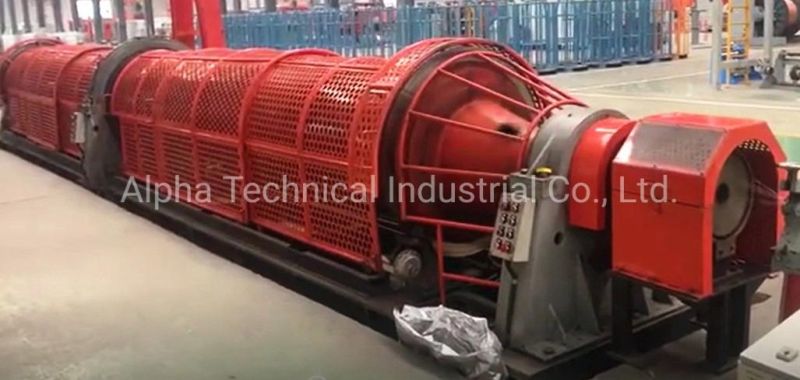

3.Equipment Detailed Pictures
4.Mechanical and electrical components
5.1 The bearings are from Ha Erbin, Wa Fangdian and Luoyang brand.
5.2 Motors are from Chinese famous products.
5.3 AC driver is from Danfoss brand.
5.4 DC driver is from SSD Parker 590 series brand.
5.5 PLC is from Siemens.
5.6 Touch screen is from Siemens.
5.7 Main low voltage electric components are from high quality and well-known Chinese brand.
6.Our Team
Alpha Technical Industrial Co.,Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.
7.Package
8. FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
Enable to give you a quotation for the cable stander, there is some necessary information that we need to know:
1. Copper/alumimum/steel rope size structure, diameter?
2. How many kgs/meters to strand per hour?
3. Reel/Flange Diameter, we need to quote correct take-up and pay off machine
4. Bobbin drrawing
