• Model NO.：TP38V
• Type：Medium-speed Chip Mounter
• Setting Accuracy：0.01mm
• Vision System：High Clear Optics CCD Video
• Image：Max 50 Times
• Weight：7.5kg
• Dimension：280mm X 260mm
• Transport Package：Plywood with Foam Inside
• Specification：CE
• Trademark：TORCH
• Origin：Beijing China
• HS Code：847989620
• Production Capacity：300PCS ,Year

Basic Info.

Model NO. TP38V Type Medium-speed Chip Mounter Setting Accuracy 0.01mm Vision System High Clear Optics CCD Video Image Max 50 Times Weight 7.5kg Dimension 280mm X 260mm Transport Package Plywood with Foam Inside Specification CE Trademark TORCH Origin Beijing China HS Code 847989620 Production Capacity 300PCS /Year

Product Description

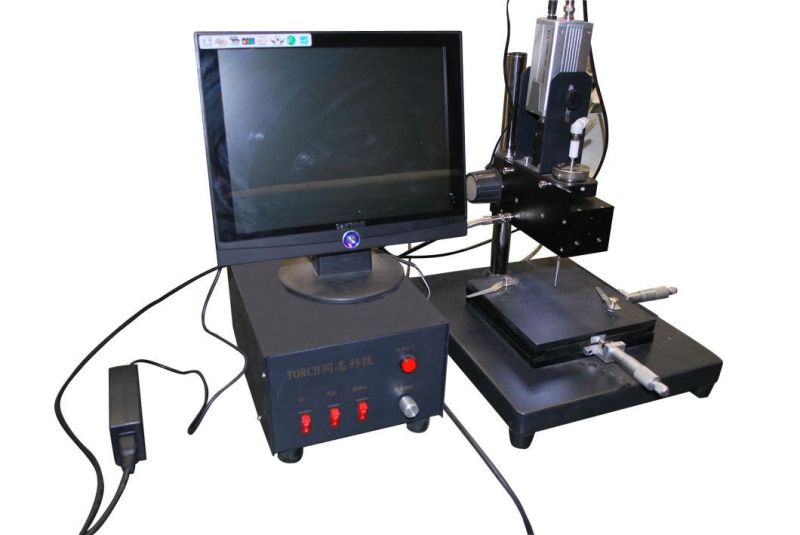

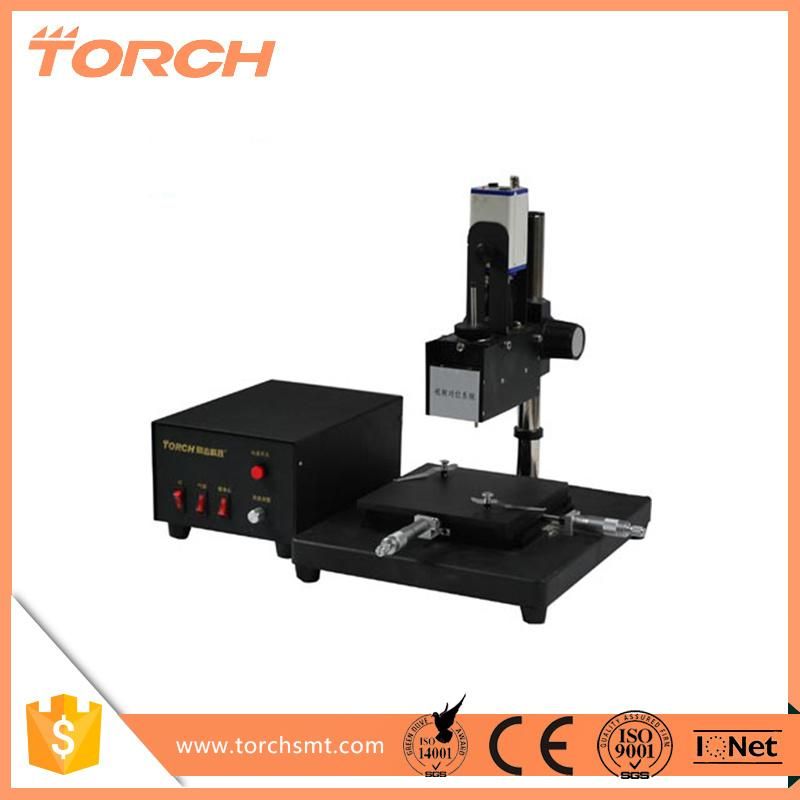

                                                                      Manual mounter TP38V

TB38V have a table for X Y and Z axes direction, and the mounting head can circumrotate freely, that make sure the accuracy keep at 0.01mm. With the vacuum generator can pick all kinds IC component. For four-dimensional direction adjusting, high clear optics CCD video and professional plating Len can mount the QFP. PLCC and some other high accuracy component easily. That can avoid the error which caused by the hand shivering when mounting. Additionally, the light also advances the accuracy

Remark
Technical parameter of TP38V:
1. Mechanical four-dimensional degree freedom: X, Y axes have precision setting which can achieve the fine tuning in the X and Y directions. Z axis can be adjusted freely from up and down. At the same time the angle θ Can be freely circumrotate.
2, Vision system: High clear optics CCD video and professional plating Len can mount the IC component easily.
3: Image: Max 50 times
4: Light source: Curve light source can turn to any direction to make the image clearer.
5: Weight: About 7.5kg. Dimension: 280mm x 260mm
6. Setting accuracy: 0.01mm

Model	TP38V
Image	Max 50 times
Light source	Curve light source can turn to any direction to make the image clearer
Weight	7.5kg
Dimension	280mm x 260mm
