Wire Cable Jacket Layer Wire Core Cutting and Stripping Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New

Base Info

  • Model NO.：WL-30HT
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Semiautomatic
  • Power Supply：220,110V, 50,60Hz
  • Model：Wl-30ht

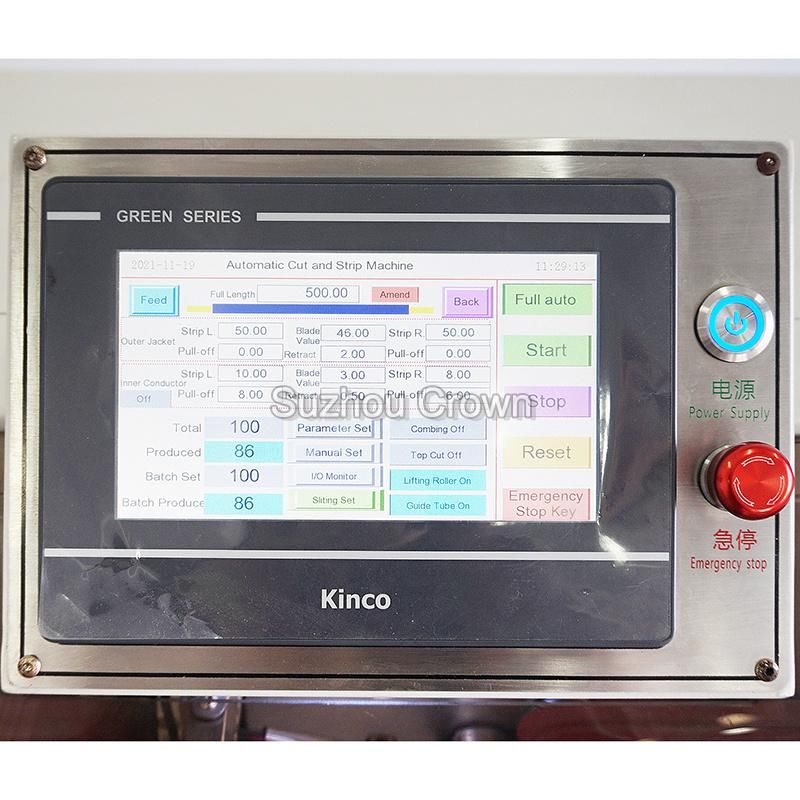

  • Display：7-Inch True Color Touch Screen
  • Applicable Wire Sizes：1-30 Square mm
  • Cutting Length：1mm-99, 999.99mm
  • Cutting Tolerance：Within 0.002*L (L=Cutting Length)
  • Stripping Length：Wire Head Full Stripping: 1-190mm, Wire Head Half-
  • Tail Stripping：Wire Tail Full Stripping: 1-80mm, Wire Tail Half-S
  • Middle Stripping：Optional
  • Max. Diameter of Guiding Pipe：16mm
  • Productivity：2, 000 PCS,Hour
  • Wire Feeding Method：Belt Feeding
  • Transport Package：63*73*71cm
  • Specification：130kg
  • Trademark：Crown
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：1000set,Month
  • Package size per unit product：63.00cm * 73.00cm * 71.00cm
  • Gross weight per unit product：130.000kg

Description

Sheathed cables, PVC cables, etc.Stripping range6-30mm2Cutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max guiding pipe dia.Φ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarksThe machine can be customized for processing special cables, and the sample cable should be sent to us for test.

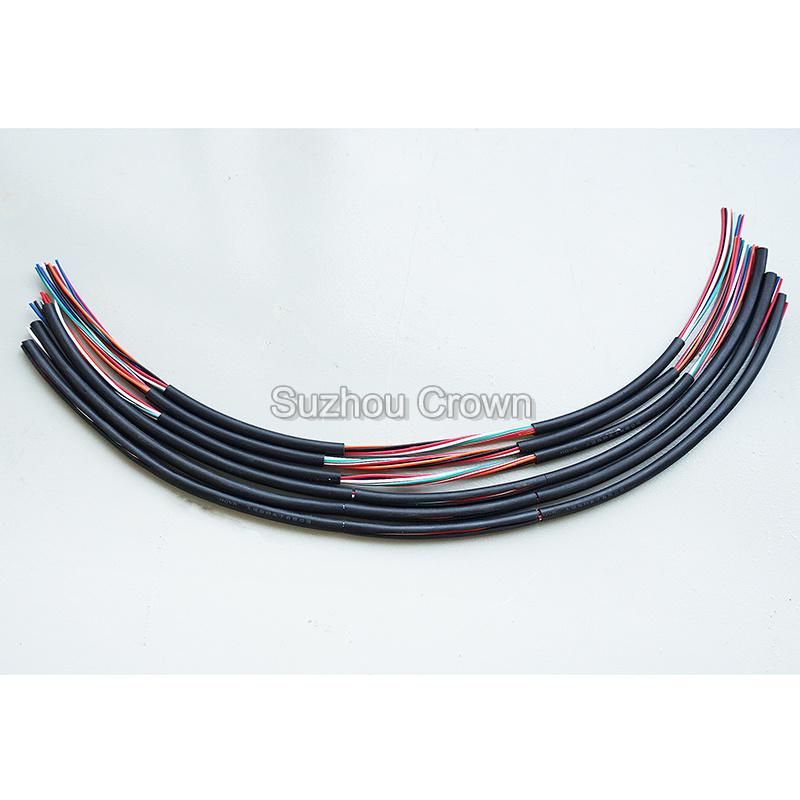

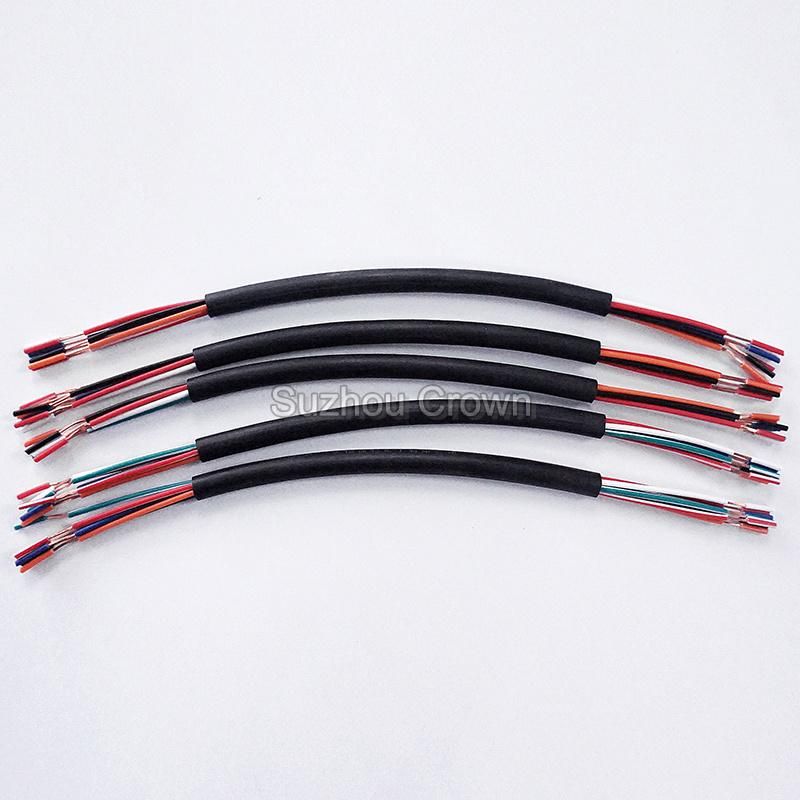

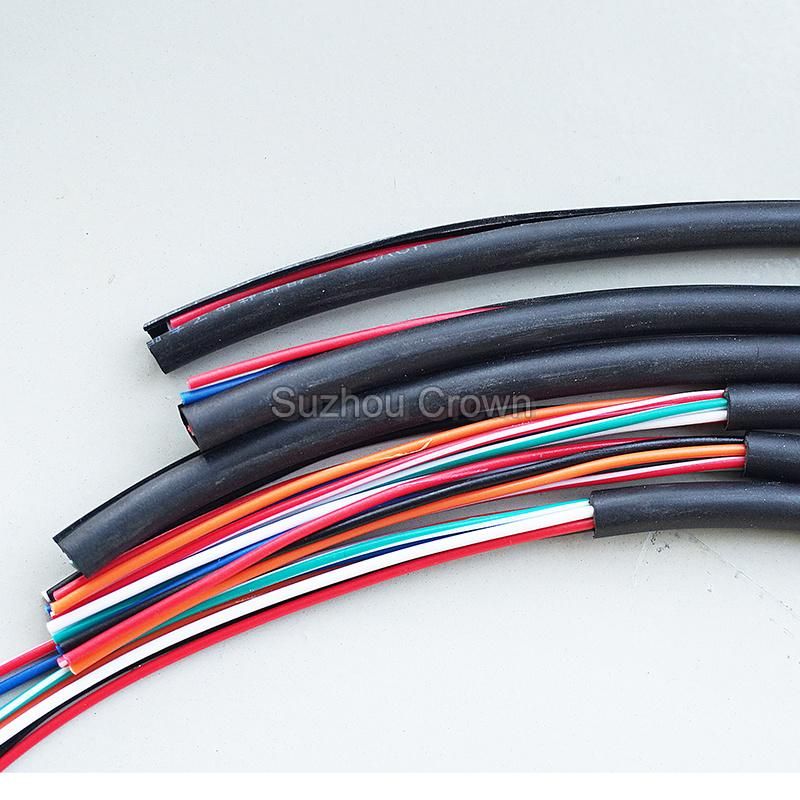

Application
Wire Cable Jacket Layer Wire Core Cutting and Stripping MachineWire Cable Jacket Layer Wire Core Cutting and Stripping Machine
Wire Cable Jacket Layer Wire Core Cutting and Stripping MachineWire Cable Jacket Layer Wire Core Cutting and Stripping Machine

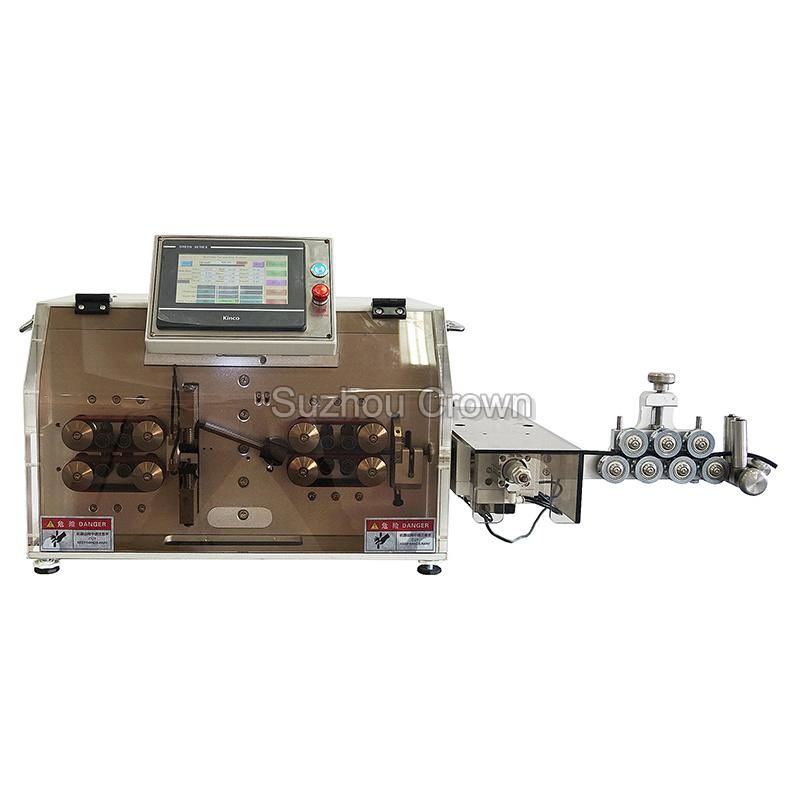

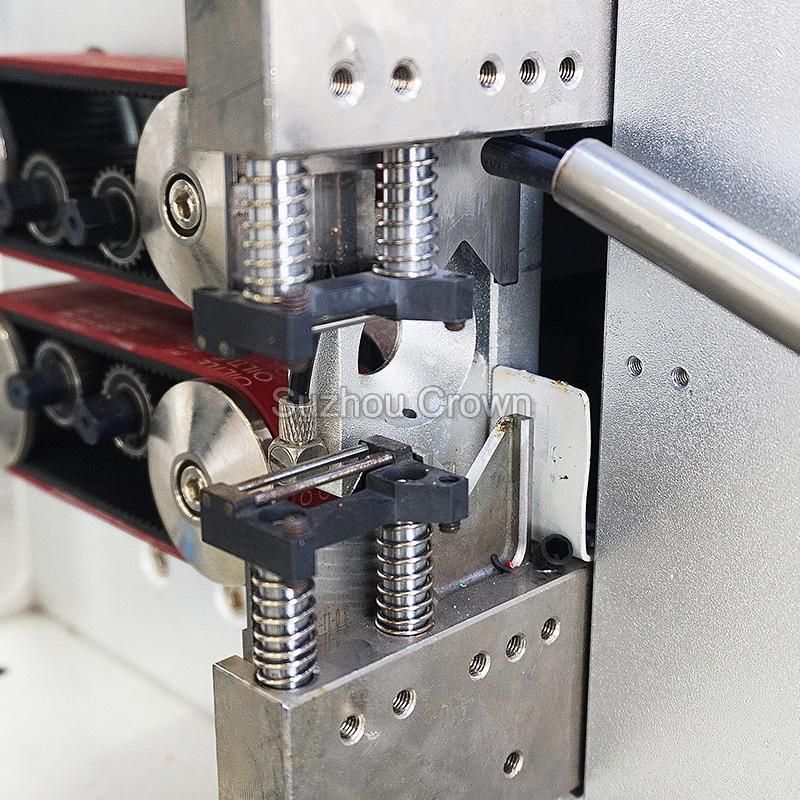

Machine:
Wire Cable Jacket Layer Wire Core Cutting and Stripping MachineWire Cable Jacket Layer Wire Core Cutting and Stripping MachineWire Cable Jacket Layer Wire Core Cutting and Stripping MachineWire Cable Jacket Layer Wire Core Cutting and Stripping Machine

Features:

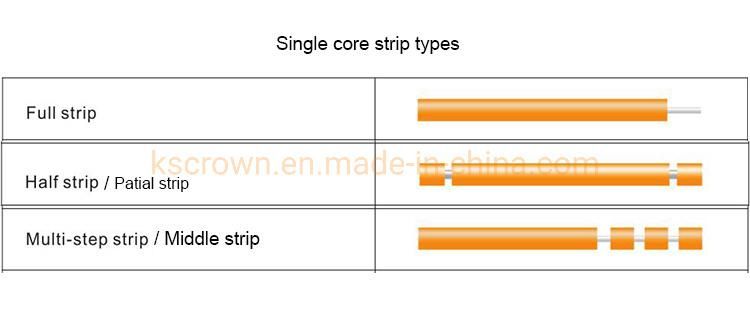

1.Function: cable cutting and stripping with middle section stripping feature

2.Applicable wire sizes: 1-30 square mm

3. Strip outer sheath of single conductor cables or multi-conductor cables

4.Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

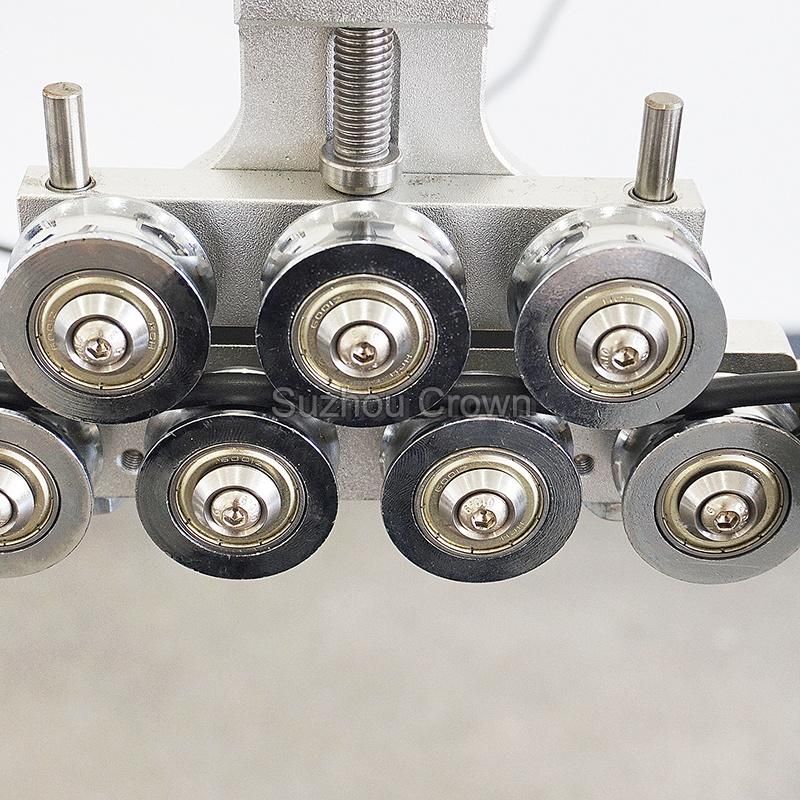

5.Belt feeding wires, no embossing and scratches

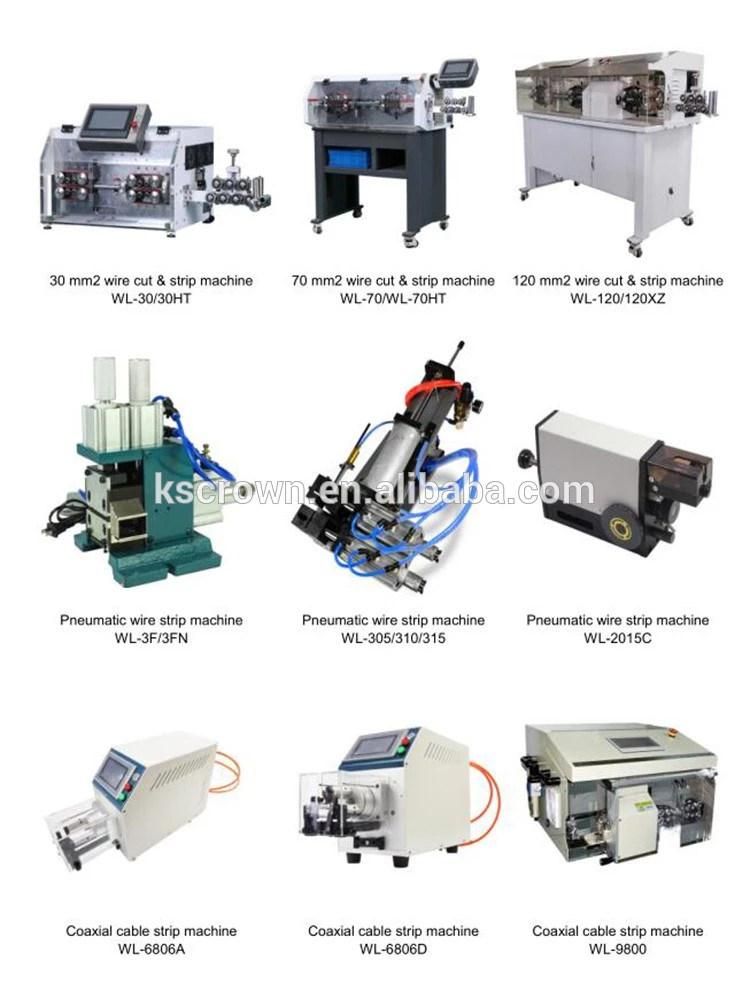

Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.

Wire Cable Jacket Layer Wire Core Cutting and Stripping Machine

Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Wire Cable Jacket Layer Wire Core Cutting and Stripping Machine

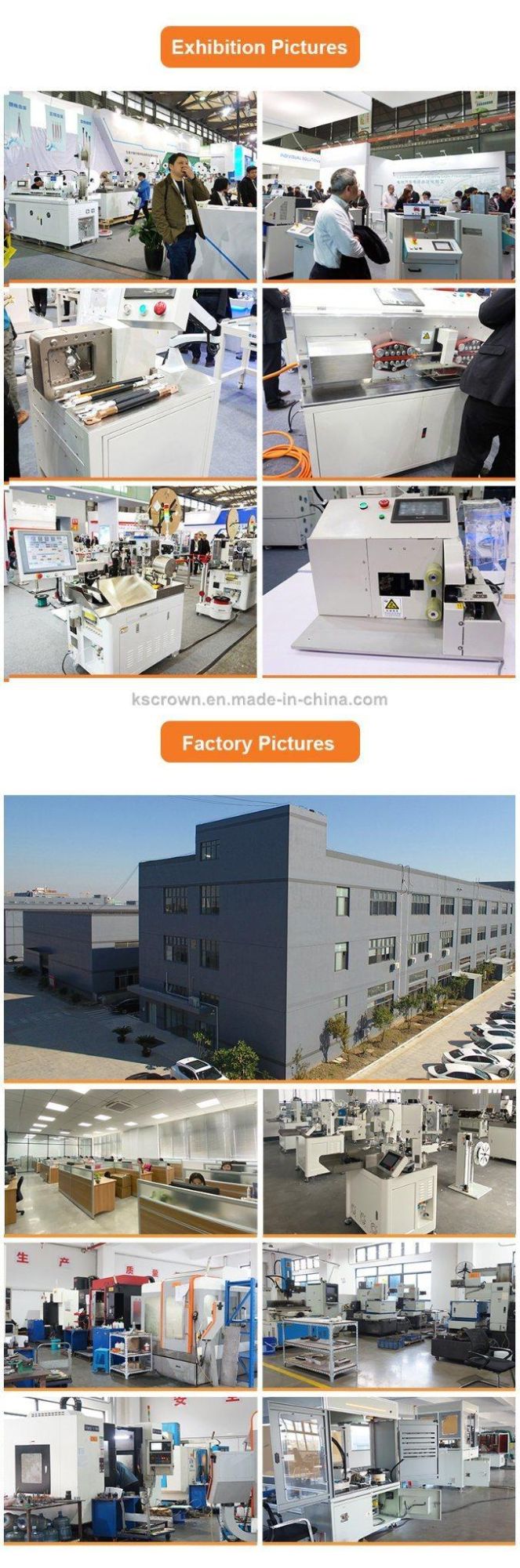

Company info:

Wire Cable Jacket Layer Wire Core Cutting and Stripping Machine

Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
