• Model NO.：WG-2004N
• Power Consumption：160~200W
• Funtaion：Stripping & Cutting
• Wire Diameter Range：0.1~2.5mm2
• Cutting Length：1mm~9999mm
• Stripping Mode：Cutter and Stripping Blade
• Transport Package：Wooden Case
• Specification：390× 350× 255mm
• Trademark：Wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-2004N Power Consumption 160~200W Funtaion Stripping & Cutting Wire Diameter Range 0.1~2.5mm2 Cutting Length 1mm~9999mm Stripping Mode Cutter and Stripping Blade Transport Package Wooden Case Specification 390× 350× 255mm Trademark Wingud Origin China Production Capacity 120/Month

Product Description

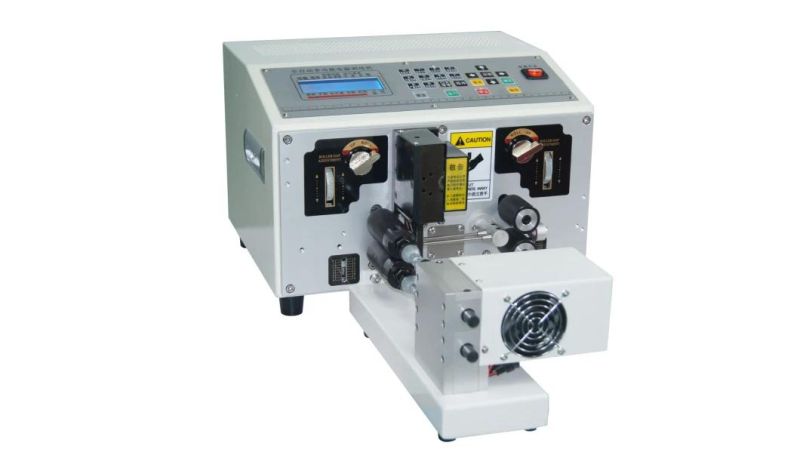

Automatic Wire Cutting, Stripping and Twisting Machine WG-2004N
 Functional characteristics: Automatic Wire Cutting, Stripping and Twisting Machine WG-2004N is using the newest 32-bits intelligent control system, Switching between Chinese and English LCD screen with button operation. It can save 100 messages ready to be invoked for high efficiency. This machine is compatible with the function of the ordinary cutting machine, not only save the labor and time but also improved the efficiency. It's mainly used for the processing of the electronic wire, silicone wire, Teflon wire, fiber wire, isolation wire, casing wire, etc. The economic effect is very high as this machine can automatically complete the cutting, stripping and twisting in one time, and can change the specification and size of the wire instantly. The machine is suitable for the wire processing for industries of electron, electronic appliance, toy, automobile accessories, etc.
Technical Parameters:

Product Name	Automatic Wire Cutting and Stripping Machine	Automatic Wire Cutting, Stripping and Twisting Machine	Automatic Wire Cutting and Stripping Machine Middle Stripping
Model	WG-2004	WG-2004N	WG-2004ZB
Sectional area of the cut wire core	0.1~2.5mm2	0.1~2.5mm2	0.1~4.5mm2
Display mode	Chinese LCD screen	Chinese LCD screen	Chinese LCD screen
Middle cutting	point 200	point 200	point 200
Power supply	AC220V/AC250V 50HZ/60HZ	AC220V/AC250V 50HZ/60HZ	AC220V/AC250V 50HZ/60HZ
Power	160~200W	160~200W	160~200W
Conduit diameter	1~4mm	1~5.5mm	1~4mm
Cutting length	1mm~9999mm	1mm~9999mm	1mm~9999mm
Stripping length	Front-end 0~30mm tail-end 0~30mm	Front-end 0~30mm tail-end 0~30mm	Front-end 0~30mm tail-end 0~30mm
Cutting tolerance	0.002×Lmm(inside)×L	0.002×Lmm(inside)×L	0.002×Lmm(inside)×L
Drive mode	4 wheel drive	4 wheel drive	4 wheel drive
Productivity	2000~8000pcs/h	2000~8000pcs/h	2000~8000pcs/h
Governing speed	0~9	0~9	0~9
Weight	33kg	33kg	33kg
Dimension	390×350×255mm	390×350×255mm	390×350×255mm

F&Q
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete. Most of the equipments are in stock and can be shipped quickly. We have our own factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customize.

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery.

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples.

4. How to operate the equipment?
There is Manual operation for each machine. Also, we could make video for you, it will show you how to do it step by step. Please contact our maintenance department or sales department at any time when you don't understand, support video and telephone communication

5.When the machine can't work well,What should I do?
Please contact our maintenance department or sales department, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine, ensuring you can operate the machine easily.
