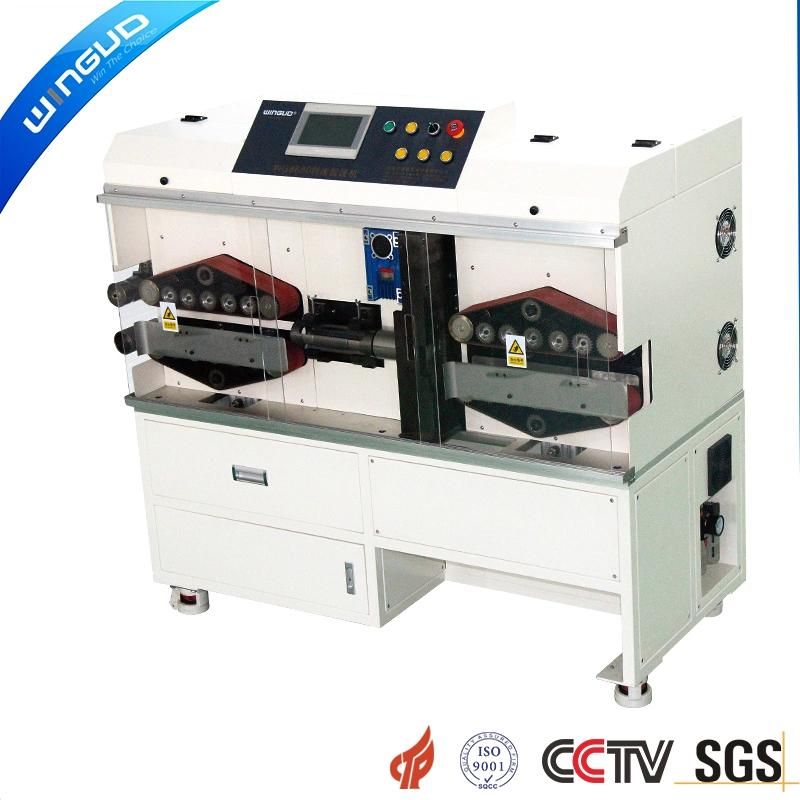

Wire Cutting and Stripping Peeling Machine

GUANGDONG WINGUD INTELLIGENT TECHNOLOGY CO., LTD.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Power Supply：AC110,220V,50,60Hz

Base Info

  • Model NO.：WG-8680
  • Power Consumption：2000W
  • Funtaion：Stripping & Cutting
  • Wire Diameter Range：45mm
  • Stripping Layers：1
  • Strip Length：a-B Max 1800mm
  • Stripping Mode：Rotary Blade,Cutter and Stripping Blade
  • Transport Package：Wooden Case
  • Specification：1300*600*1210mm
  • Trademark：wingud
  • Origin：China
  • Production Capacity：120,Month

Description

             Maximum processing cable diameter:φ45mm Standard.Minimum machining diameter:Φ16MmProcessing Length:10-99999.99mmCutting depth Unit:0.01mmMaximum stripping length of front end A End:1-1800mm  Scratch typeMinimum peeling length per time:1mmBack end maximum peeling length B End:1-1800mm  Scratch type
 Wire Stripping Range:6-240 mm² Automatic adjustment of the wire coreProductivity:300-700pcs/hDrive Mode: Motor/Ball Screw DriveDisplay Mode:7 Inch Touch screen, Simplified Chinese interfaceCutting tolerances:Within 0.01 x lmmPower:220V/2000WStorage capacity:100 Type of cable processing dataPower:2.0KWWeight:350KGExternal dimensions:l1300*w600*h1210Wire Cutting and Stripping Peeling Machine  Wire Cutting and Stripping Peeling Machine  Wire Cutting and Stripping Peeling Machine  Wire Cutting and Stripping Peeling Machine
