• Model NO.：WL-S100
• Maximum Stripping Length：47mm
• Cutting Depth Unit：0.01mm
• Max. Stripping Layers：9 Layers
• Weight：24kg
• Power Supply：110V,220V,50Hz
• Transport Package：Wooden Case Package
• Specification：600x185x280 mm
• Trademark：Dimension
• Origin：Kunshan City
• HS Code：8479811000
• Production Capacity：10000

Model

WL-BNX2

Applicable wire size

0.1 - 6.0mm² (32 - 10 AWG)

Applicable wire material

PVC, Braided, Fiberglass Wire

Stripping length

Side I: 0 - 50 mm (0 - 1.968 inches)

Side II: 0 - 30 mm (0- 1.181 inches)

Twisting length

Side I: 0 - 50 mm (0 - 1.968 inches)

Side II: 0 - 30 mm (0- 1.181 inches)

Maximum conduit diameter

6 - 7 mm (0.237 - 0.275 inch)

Length accuracy

0.002 * L (L = cutting length)

Productivity

83 - 167 pcs/min (L = 100 mm/3.937 inches)

Noise level

< 70 dB (A)

Power supply

110, 220 V (50 - 60 Hz)

Operation interface

Bilingual

Weight

32 kg (70.55 lb)

Dimension (L * W * H)

420 * 390 * 280 mm (16.54 * 15.35 * 11.02 inches)





Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

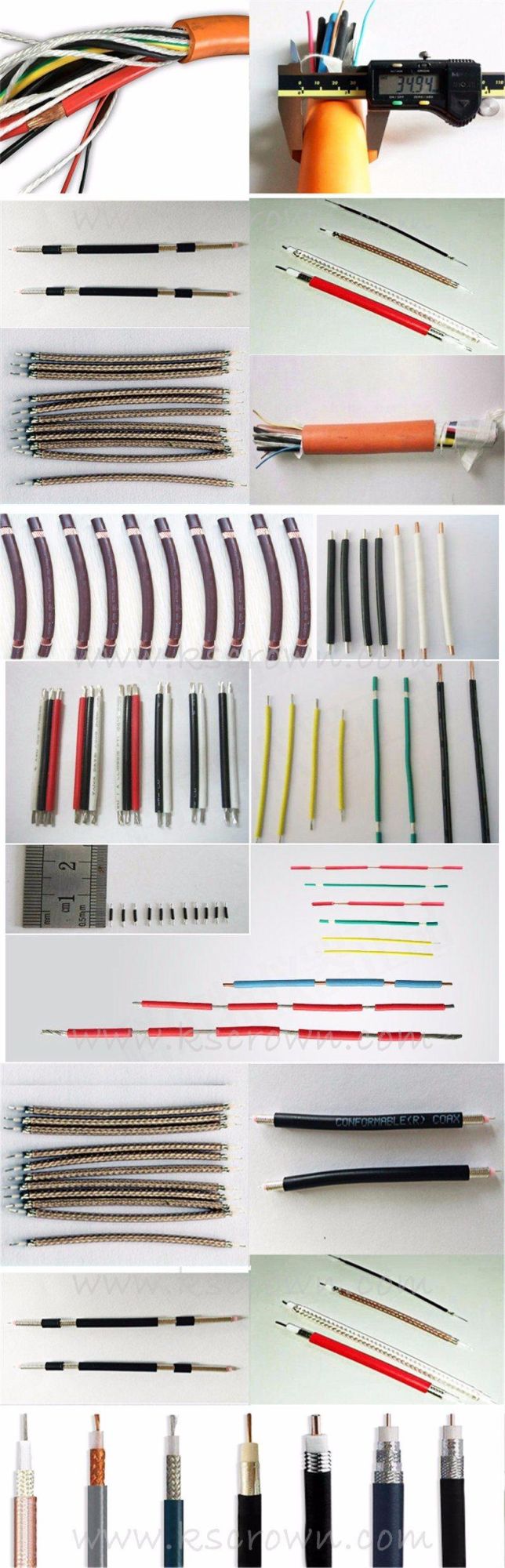

Sample: cut and strip wire automatically

Application

Company info:


Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidan
