• Model NO.：JAGUAR F10
• Number of Heating Zones：up 10, Bottom 10
• Number of Cooling Zones：2(up 2, Bottom 2)
• Length of Heating Zones：3890mm
• Max. Width of PCB：400mm
• Mesh Belt Width：450mm
• Transmission Type：Mesh and Chain
• Conveyor Speed：0-2000mm,Min
• Fixed Rail Side：Front Rail Fixed(Option: Rear Rail Fixed)
• Power Supply：5 Line 3 Phase 380V 50,60Hz
• Weight：2300kg
• Transport Package：Wooden Box
• Specification：5800*1320*1490mm
• Trademark：JAGUAR
• Origin：China
• HS Code：8501101000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. JAGUAR F10 Number of Heating Zones up 10/ Bottom 10 Number of Cooling Zones 2(up 2, Bottom 2) Length of Heating Zones 3890mm Max. Width of PCB 400mm Mesh Belt Width 450mm Transmission Type Mesh and Chain Conveyor Speed 0-2000mm/Min Fixed Rail Side Front Rail Fixed(Option: Rear Rail Fixed) Power Supply 5 Line 3 Phase 380V 50/60Hz Weight 2300kg Transport Package Wooden Box Specification 5800*1320*1490mm Trademark JAGUAR Origin China HS Code 8501101000 Production Capacity 100 Sets/Month

Product Description

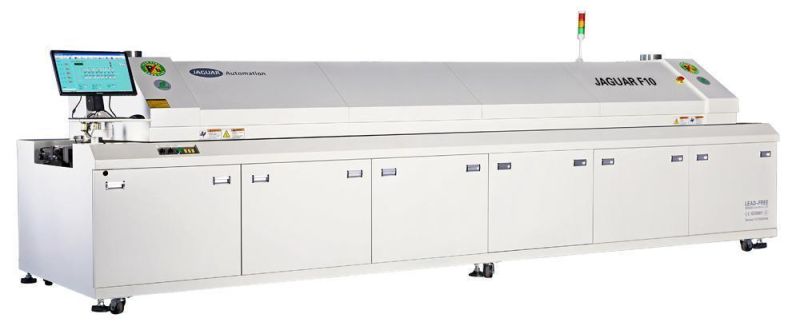

JAGUAR 10 Zones Lead Free Hot Air Reflow Oven F10




Introduction:

1.Heating zone

 1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
 1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
 1.3: 10 heating zones, 20 heating elements( up 10/ bottom 10 ) , independent temperature control and switch
 1.4: The latest design of nozzle plate, the best insulation performance

2.Control system

2.1: Siemens PLC, table machine performance
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch

3.Conveyor system

3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the
accuracy is ±2mm/ Min

4.Cooling zone

4.1: Axial fan forced air cooling ( Up and bottom dual cooling)

5.Protection system

5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function

Machine parameters


Machine dimension	5800 x 1320x 1490mm
Color	Ivory
Net weight	Approx. 2150kgs
Exhaust volume	10m3/min X 2pipe
Power supply	5 wire, 3 phase, 380V 50/60HZ
Startup power consumption	42KW
Steady power consumption	8-12KW
Warming time	About 30mins
Temperature range	Room temperature-300ºC
Mesh width	500mm
Max PCB width	420mm
Component height	Up 30mm/Bottom 25mm
Conveyor direction	Left-right ( option: Right-left)
Conveyor speed	300-2000mm/min
Data storage	Process data and status storage(80GB)
Abnormal alarm	Over temp or low temp alarm, sound and light 2 modes


Machine configuration


Heating zone	Up 10, Bottom 10
Cooling zone	Up 2, Bottom 2
Control mode	WINDOWS 7+IPC+PLC
Temperature control mode	PID closed loop+SSR driver
Thermal couple wire	3pcs
Conveyor system	Mesh+Chain
Conveyor control mode	3 inverters+Panasonic motor
Hood lift	Electric hood lift
UPS	Standard, power off standby to protect PCB production completed
