Round Multi-Conductor Wire Insulation Stripping Machine
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type：Electric
- Condition：New
Base Info
- Model NO.：WL-HT3
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Model：Wl-Ht3
- Function：Cutting and Stripping
- Wire Type：Sheathed Cables, PVC Cables, etc.
- Stripping Range：3-13mm
- Inner Core Numbers：2 Cores, 3 Cores, 4 Cores
- Cutting Length：0.1mm-99999.9mm
- Outer Stripping：20-150mm
- Inner Core Wire Stripping：Head 3-10mm, Tail 3-30mm
- Maximum Diameter of Catheter：15mm
- Cutting Tolerance：0.01mm Silent Hybrid Stepping Motor
- Blade：4PCS Imported High Speed Steel
- Power：700W
- Capacity：650PCS,Hour(L=200mm)
- Drive Mode：Four-Wheels Stepper Motor Drive
- Conduict Diameter：11mm
- Transport Package：Wooden Case
- Specification：80*72*62cm
- Trademark：Crown
- Origin：China, Kunshan
- HS Code：8479819000
- Production Capacity：2800PCS,H, Sheath Wire 800PCS(Based on Wire Size)
- Package size per unit product：80.00cm * 72.00cm * 62.00cm
- Gross weight per unit product：105.000kg
Description
Features:
Suitable for processing of multi-core round cables
Wire cutting, cable outer sheath stripping and inner core insulation stripping can be finished at one time

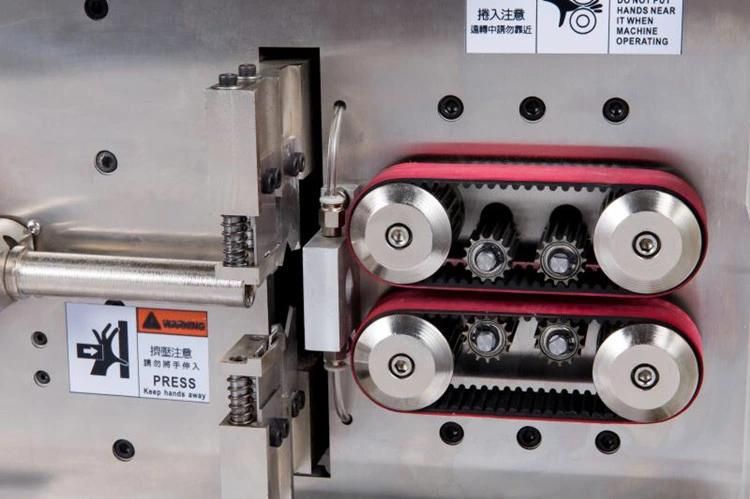

Cable cutting and stripping are finished by two sets of moveable cutters
Up to 100 program numbers can be stored to recall various processing data at any time

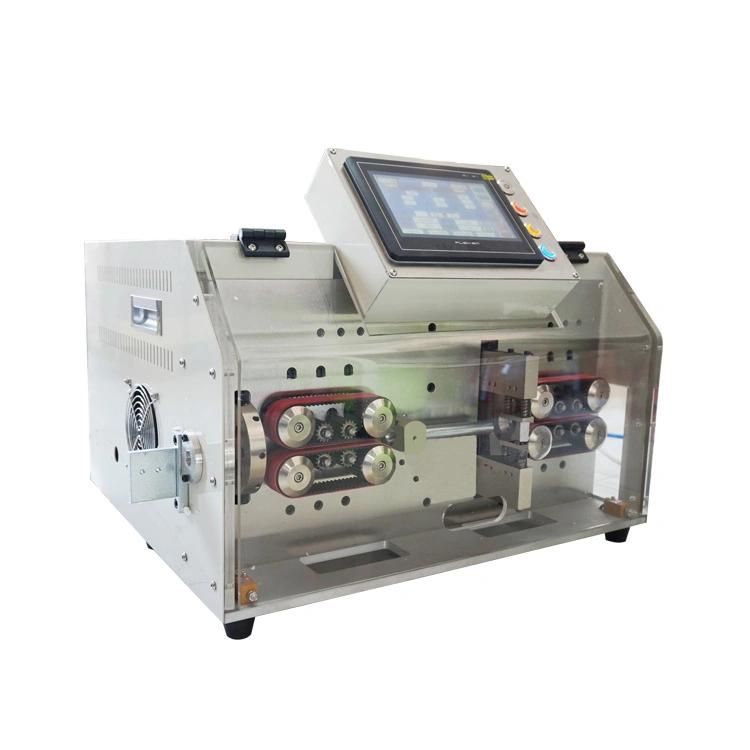

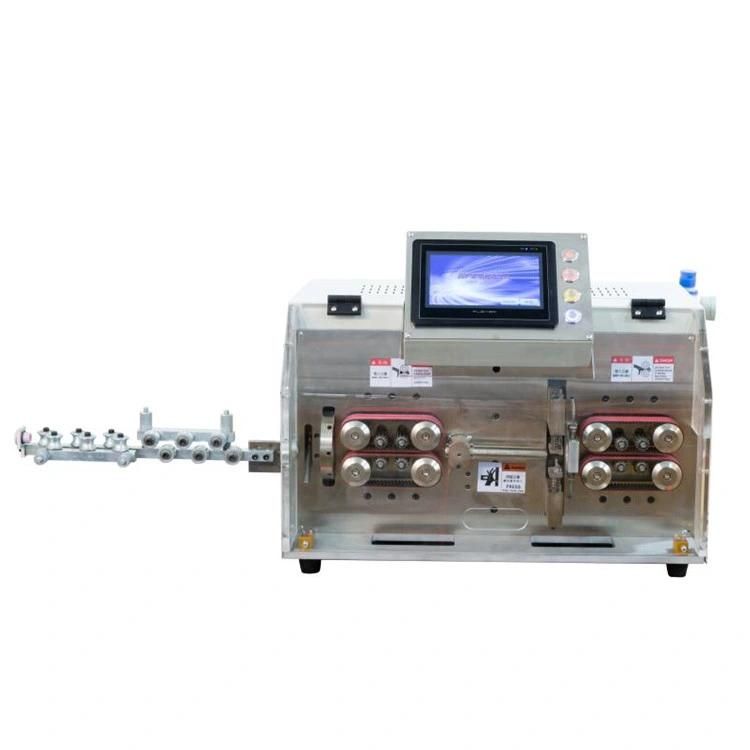

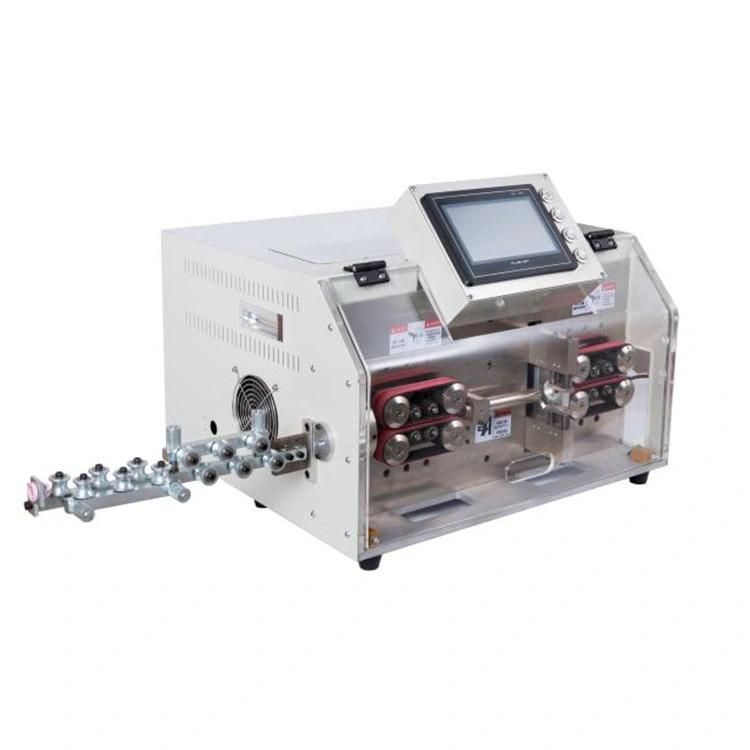

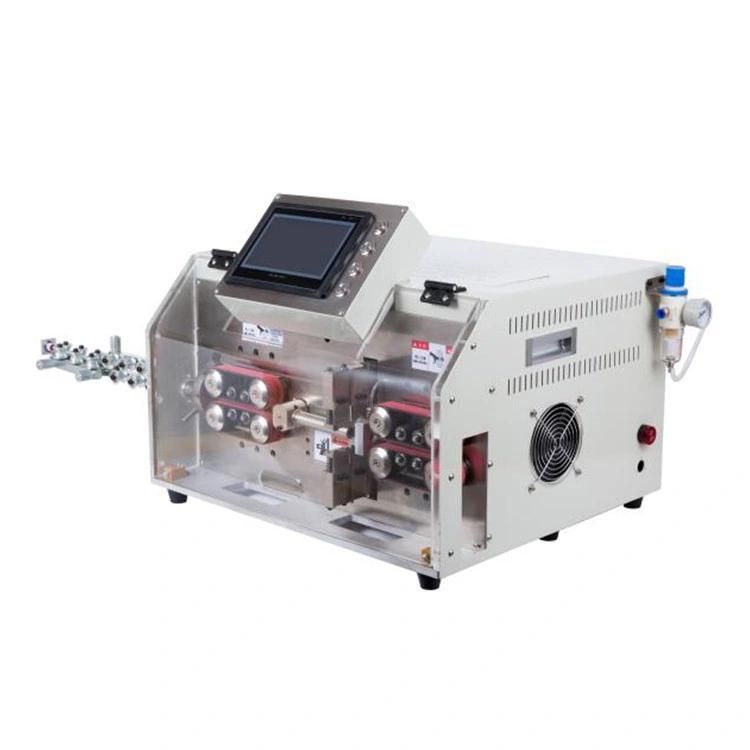

Product show:

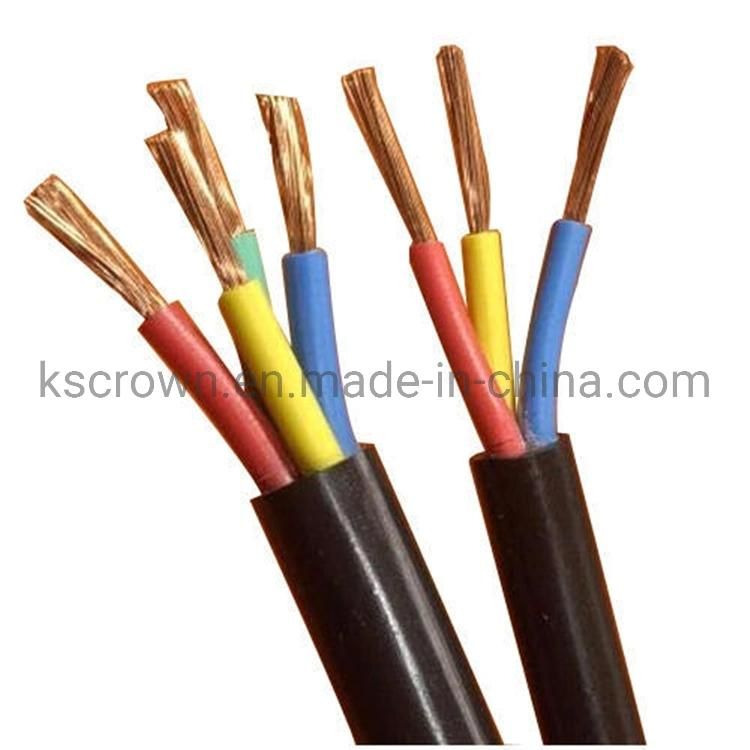

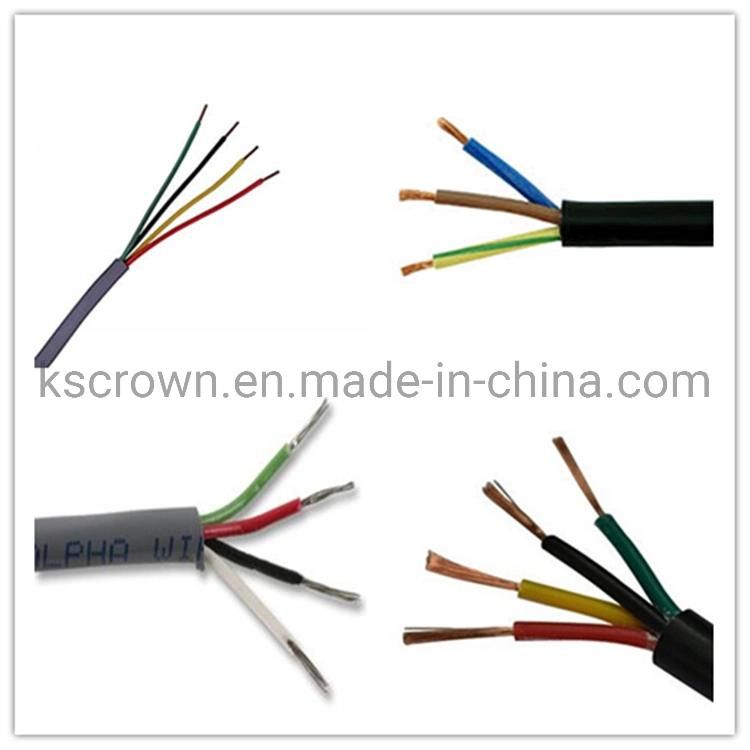

Machine processing wire samples:
